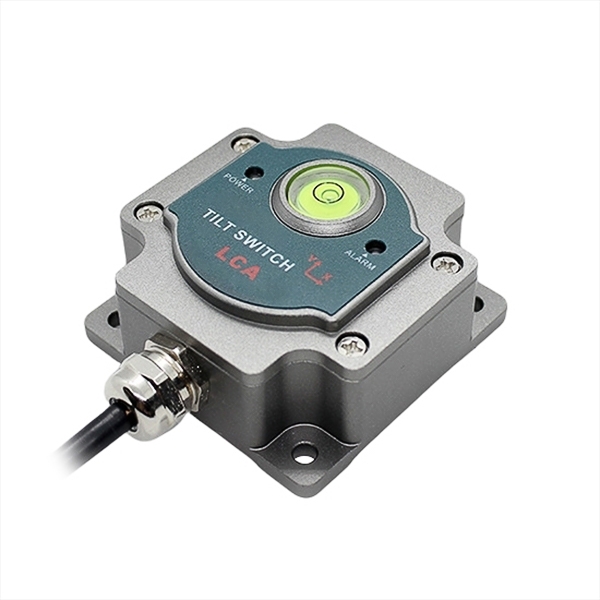

Industrial Tilt Switch, ±15°, Single Axis/ Dual Axis

This affordable tilt sensor offers high precision with a ±15° measuring range and 0.1° accuracy. It comes in single or dual-axis configurations, with a switch output, and supports 12V or 24V power supply. The SUCH sensor also features an adjustable alarm angle valve (0-15°) for flexible tilt detection. It is widely used in applications such as underground drilling rig navigation, geological equipment monitoring, railway locomotive tracking, and oil drilling operations.

Feature

• The tilt sensor includes a horizontal safety alarm and platform leveling detection to ensure the equipment stays within safe operating limits and remains properly aligned.
• With an IP67 rating, the SUCH sensor is dustproof and waterproof, making it ideal for use in harsh environments and ensuring reliable performance even in challenging conditions.
• It is designed with precision to provide high reliability and stability, making it perfect for use in demanding industrial settings.

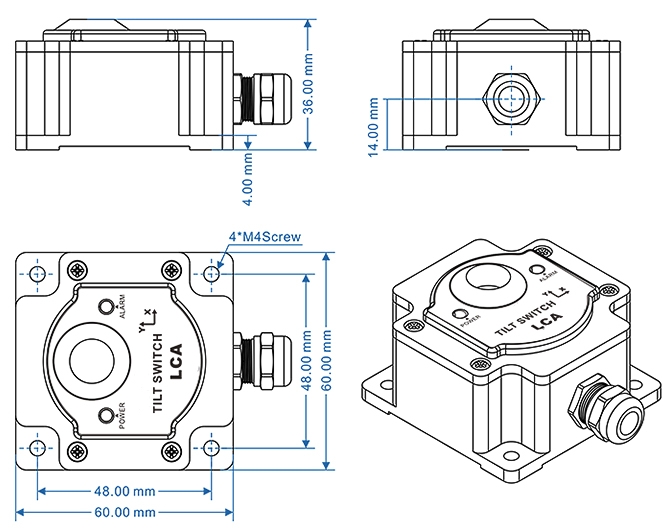

Dimension (Unit:mm)

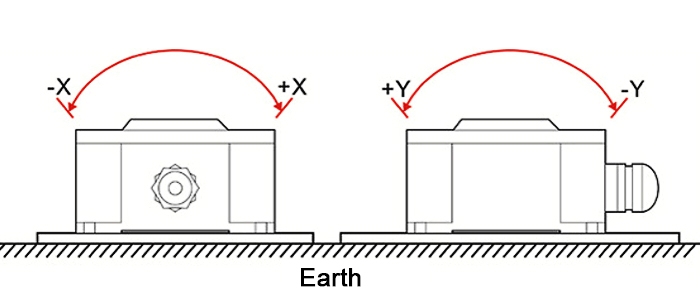

Installation Diagram

The installation should ensure that the bottom of the inclinometer sensor is parallel to the measured surface and minimize the impact of dynamic forces and acceleration on the sensor. This inclinometer sensor can be installed either horizontally or vertically. For installation, please refer to the following guidelines.
