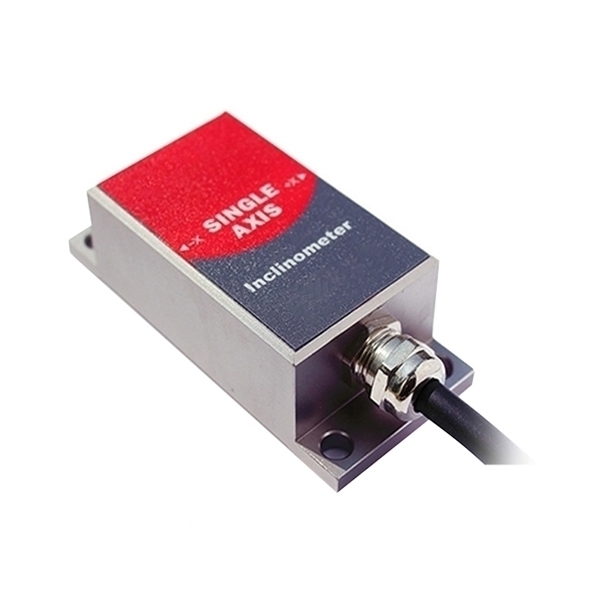

Single Axis Tilt Sensor, ±10°~±180°, 4-20mA

SKU: SUCH-TTS-118128

$207.69

● Measuring Range: ±10° / ±30° / ±60° / ±90° / ±180° ● Measuring Axis: X / X, Y (Single / Dual) ● Output Signal: 4-20mA ● Absolute Accuracy (@25℃): 0.05° / 0.05° / 0.06° / 0.08° / 0.1°

Measuring Axis *
Measuring Range (for dual axis) *
Installation *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

This affordable inclinometer sensor offers high precision and reliability, available in single or dual-axis configurations. The SUCH sensor supports customizable measuring ranges (±10°, ±30°, ±60°, ±90°, ±180°) and delivers up to 0.01° accuracy. Built with MEMS technology, it ensures temperature and nonlinear error compensation, along with strong resistance to shock, vibration, and electromagnetic interference.

Feature

Long-Distance Transmission: 4-20mA output, up to 2000m transmission distance.
Strong Anti-Interference: Ideal for harsh environments and engineering machinery.
High Precision: MEMS technology, 0.05° accuracy, compensates for temperature and nonlinear errors, with high shock and vibration resistance.
Electromagnetic Protection: Built-in anti-RF circuit, perfect for underground and industrial applications.
Enhanced Reliability: Industrial-grade MCUs, three-proof PCBs, metal casings, and wide-temperature protection for superior stability.

Dimension (Unit:mm)

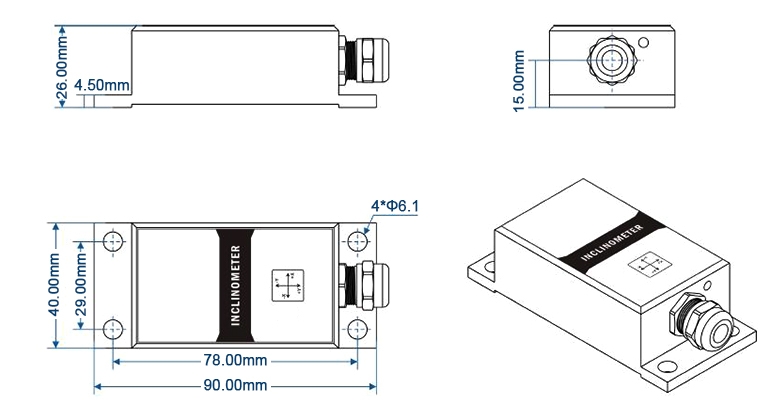

Single axis tilt sensor dimension

Wiring Definition

Single Axis Line Color Function

BLACK	WHITE	GREEN	RED
GND Power negative	Out X X Axis output current	NC Spare line	Vcc Power supply Power positive

Dual Axis Line Color Function

BLACK	WHITE	GREEN	RED
GND Power negative	Out X X Axis output current	Out Y Y Axis output current	Vcc Power supply Power positive

Installation Diagram

The installation should ensure that the bottom of the inclinometer sensor is parallel to the measured surface and minimize the impact of dynamic forces and acceleration on the sensor. This inclinometer sensor can be installed either horizontally or vertically. For installation, please refer to the following guidelines.

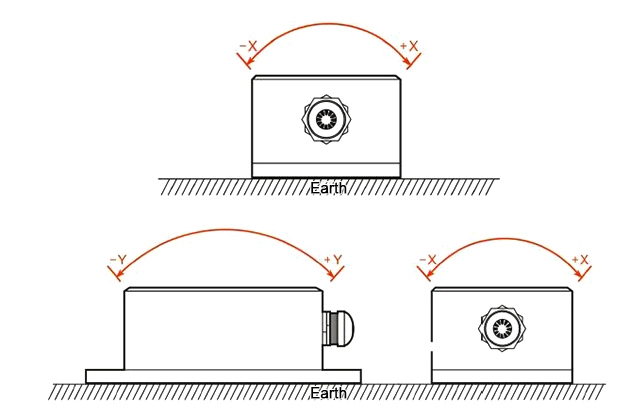

Single axis tilt sensor installation

Specs

Measuring Axis	X/XY (single/dual)
Measuring Range*	±10°	±30°	±60°	±90°	±180°
Zero Output (0° output)	12mA
Resolution	0.01°	0.01°	0.02°	0.03°	0.05°
Absolute Accuracy (@25℃)	0.05°	0.05°	0.06°	0.08°	0.1°
Long Term Stability	0.05°
Zero Temperature Coefficient (-40~85℃)	±0.006°/℃
Sensitivity Temperature Coefficient (-40~85℃)	≤100 ppm/℃
Power On Time	0.5s
Response Time	0.02s
Response Frequency	1~20Hz
Output Signal	4-20mA
Electromagnetic Compatibility	According to EN61000 and GBT17626
MTBF	≥50000 hours/times
Insulation Resistance	≥100MΩ
Shockproof	100g@11ms, 3 times/axis (half sinusoid)
Anti-Vibration	10grms, 10～1000Hz
Protection Rating	IP67
High Seismic Performance	＞2000g
Cables	Standard 1m length, wearproof, grease proofing, wide temperature, shielded cables 4*0.4mm²
Dimension	904026mm
Weight	165g (without cable)
*Note: This Technical data only list ±10°, ±30°, ±60°, ±90°, ±180° series for reference, other measuring range please refer to the adjacent specifications.

Electrical Specification

Item	Min.	Standard	Max.	Condition
Power Supply	9V	12V, 24V	36V	Standard
Working Current	/	50mA	/	/
Output Load	/	400Ω	1000Ω	Resistive
Working Temperature	-40℃	/	+85℃	/
Store Temperature	-55℃	/	+125℃	/
