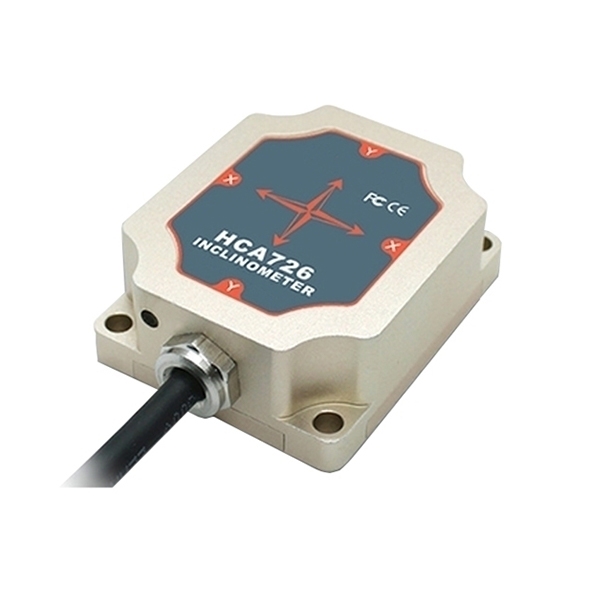

Digital Inclinometer Sensor with MEMS, ±15°~±180°

This high-precision inclinometer sensor is designed for industrial applications, offering single or dual-axis tilt measurement with a range of ±15° to ±180°. It features an output signal of CAN 2.0A or CAN 2.0B. This SUCH sensor is ideal for monitoring ancient or deteriorating buildings as well as large-scale, high-precision industrial measurement sites, offering both low cost and high reliability.

Feature

• This compact single/dual-axis tilt sensor uses CAN 2.0A/CAN 2.0B for industrial field control applications.
• It features a 24-bit A/D converter that accurately measures tilt and pitch with a 5th-order filtering algorithm.
• With a MEMS inclination unit, it offers a range of ±180° and 0.01° accuracy for both single-axis and dual-axis measurements.
• The sensor provides stable, reliable performance and excellent scalability for industrial use.

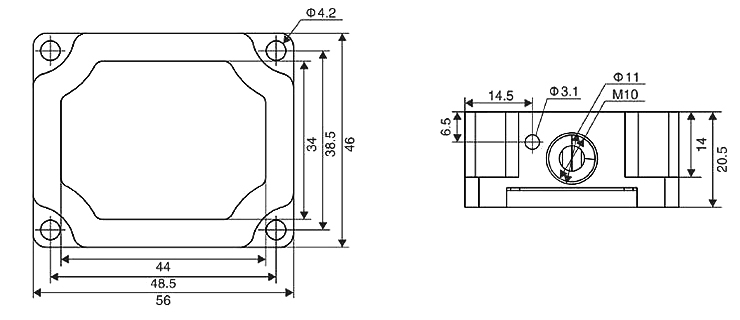

Dimension (Unit:mm)

Wiring Definition

CANopen Tilt Sensor Line Color Function

Installation Diagram

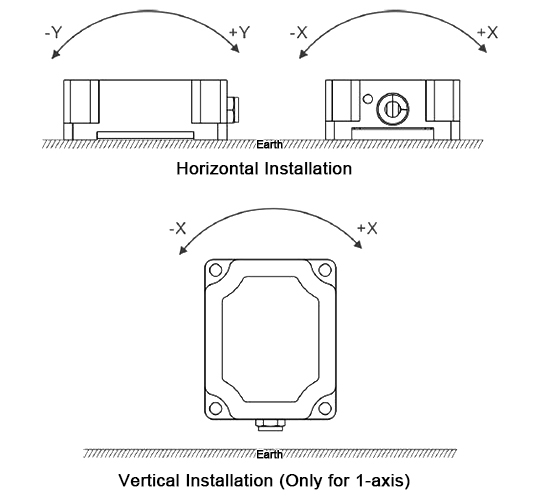

The inclinometer sensor must be installed with its bottom parallel to the measured surface to minimize the impact of dynamic forces and acceleration on the sensor. It can be installed either horizontally or vertically (vertical installation is only applicable for the single-axis version). For detailed installation instructions, please refer to the diagram below.
