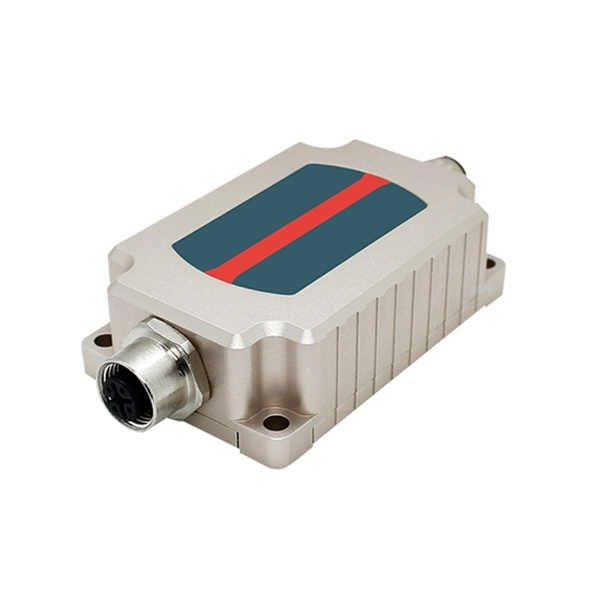

Dynamic Inclinometer Sensor, ±90° Pitch, ±180° Roll/ Azimuth

SKU: SUCH-INS-HDA

$417.94

● Measuring Range: Roll ±180°, Pitch ±90°, Azimuth ±180° ● Measuring Axis: X-axis / Y-axis / Z-axis ● Output Signal: RS485 / RS232 / TTL / CAN2.0A / CAN2.0B ● Protection Rating: IP67

Output Signal *

Installation Method *

Application Type *

Protection Grade *

Accessories

5 pin M12 Aerial Plug 2m Cable [+$20.00]
No

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

SUCH dynamic inclinometer sensor is designed for measuring roll, pitch, and azimuth in dynamic conditions. It offers a measurement range of ±180° for roll, ±90° for pitch, and ±180° for azimuth, with a static accuracy of ±0.05° and dynamic accuracy of ±0.1°. With built-in gyroscope and accelerometer, it provides stability and reliability in harsh environments, suitable for applications in construction, vehicles, and industrial machinery.

Feature

Multiple Output Signals: Tilt sensor supports various output signal options, including RS485, RS232, TTL, CAN 2.0A, and CAN 2.0B, providing flexibility for integration with different systems and applications.
Flexible Installation Options: It offers multiple installation methods, with both horizontal and vertical mounting options, allowing for versatile deployment in different environments and configurations.

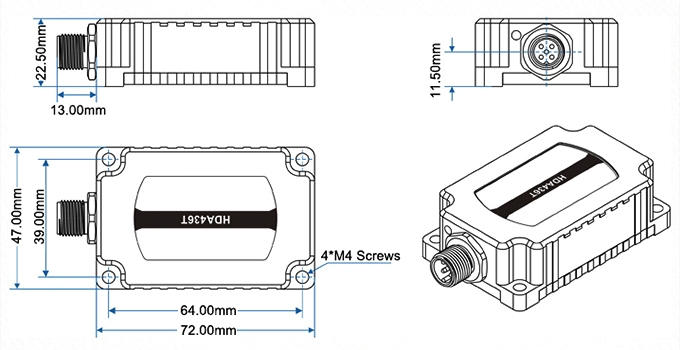

Dimension (Unit:mm)

Dynamic inclinometer sensor dimension

Wiring Diagram

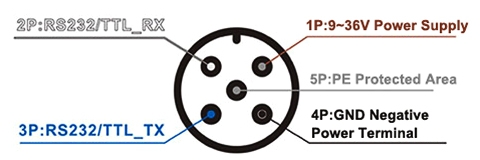

Dynamic inclinometer sensor RS232 TTL wiring diagram

1 PIN (Brown)	2 PIN (White)	3 PIN (Blue)	4 PIN (Black)	5 PIN (Gray)
9-36V (power positive)	RS232 (RXD) / TTL (RXD)	RS232 (TXD) / TTL (TXD)	GND (power negative)	PE (reserve)

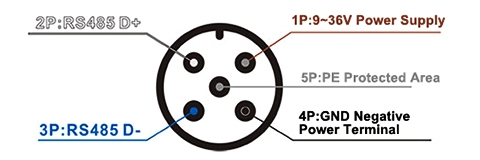

Dynamic inclinometer sensor RS485 wiring diagram

1 PIN (Brown)	2 PIN (White)	3 PIN (Blue)	4 PIN (Black)	5 PIN (Gray)
9-36V (power positive)	485 D+	485 D-	GND (power negative)	PE (reserve)

Installation

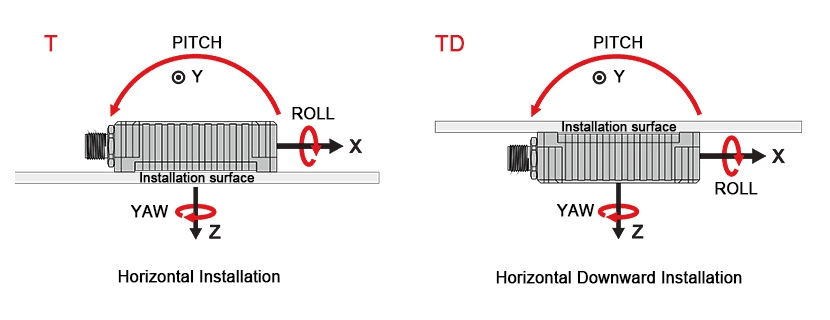

Dynamic inclinometer sensor horizontal installation

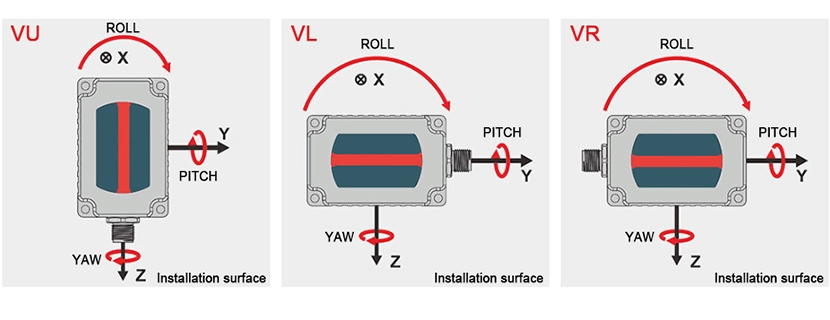

Dynamic inclinometer sensor vertical installation

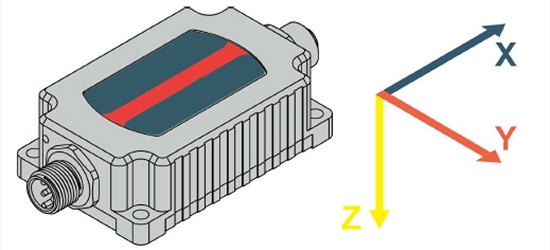

Measuring of Axial Direction

Dynamic inclinometer sensor measuring axial direction

Specs

Output Signal	RS485	RS232	TTL	CAN2.0A	CAN2.0B
Accessory Cable	Standard without cable. (5 pin M12 aerial plug 2m cable can be optional)
Measuring Range	Roll ±180°, pitch ±90°, azimuth ±180° (tilt power initial value is 0°)
Measuring Axis	X-axis/Y-axis/Z-axis
Resolution	0.01°
Static Accuracy	±0.05°@25℃
Dynamic Accuracy	±0.1°@25℃
Gyro Range	±250°/s
Gyro Zero Bias Stability	8.5°/h (10s average)
Gyro zero-bias Instability	4.5°/h (allan)
Angular Random Walk Coefficient	0.25°/sqrt (h) (allan)
Acceleration Range	±8g
Acceleration Zero Bias Stability	±0.02mg (10s rms)
Acceleration Zero Bias Instability	±0.005mg (allan)
Acceleration Random Walk Coefficient	±0.005m/s/sqrt (h) (allan)
Zero Temperature Coefficient	±0.01°/°C (-40~85°C)
Sensitivity Temperature Coefficient	≤100ppm/°C (-40~85°C)
Power-on Start-up Time	1S
Response time	0.01S
Electromagnetic Compatibility	In accordance with EN61000 and GBT17626
Mean Time Between Failure (MTBF)	≥98000 hours/time
Insulation Resistance	≥100 megohm
Shock Resistance	100g@11ms, triaxial (half sine wave)
Vibration	10grms, 10~1000Hz
Supply Voltage	9-36V
Working Current	No load 40mA (12V)
Operating Temperature	-40°C~+85°C
Storage Temperature	-40℃~+85℃
Waterproof Grade	Standard IP67
Weight	≤165g (without cable)			Single connector ≤165g (without cable)

Application

Oil Drilling

Construction Vehicle

Geological Monitoring

FAQ

Q1: How can the dynamic inclinometer sensor be integrated with other devices? ❯

The dynamic inclinometer sensor supports RS485, RS232, TTL, CAN 2.0A, and CAN 2.0B communication protocols, enabling easy integration with various control systems, data loggers, and monitoring devices.

Q2: Is the dynamic inclinometer sensor suitable for the construction industry and vehicles? ❯

Yes, it is ideal for the construction industry to monitor structural tilt and for vehicles to track tilt and prevent rollover, ensuring safety and performance in both applications.

Q3: Does the dynamic inclinometer sensor require regular maintenance? ❯

Periodic calibration and system checks are recommended to maintain accuracy. In harsh conditions, more frequent maintenance may be required to ensure optimal performance.
