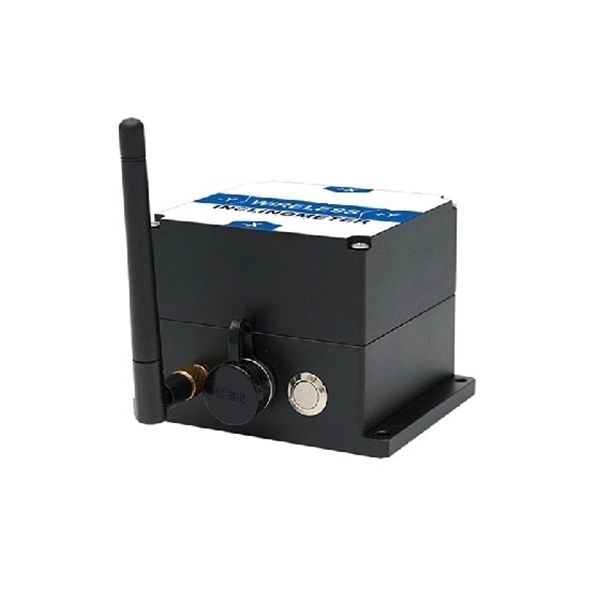

2 Axis Bluetooth Tilt Sensor, ±90°, RS232/ RS485

0 review(s) | Add your review

SKU: SUCH-TTS-HMI600

$496.58

● Measuring Range: Biaxial ±90° ● Measuring Axis: X, Y Axis ● Output Interface: Bluetooth ● Protection Rating: IP67

Wireless Transmission Module *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

The SUCH bluetooth tilt sensor is a high-performance device for precise tilt measurements using Bluetooth wireless transmission. It features a ±90° measurement range on both X and Y axes. Powered by a lithium battery, the sensor boasts ultra-low power consumption and an automatic low-power sleep mode for extended battery life. Its industrial-grade design includes a robust MCU, triple-proof PCB, imported cables, and a wide-temperature metal casing for durability. Compatible with the wireless transmission module, ready for real-time dynamic measurements in industrial applications.

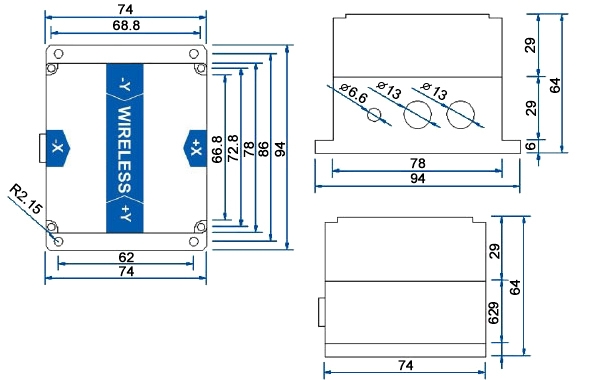

Dimension (Unit:mm)

Bluetooth tilt sensor dimension

Wiring Diagram

Electrical Connection	1	2	3	4	5
Electrical Connection	Red	White	Black	Green	Yellow
Bluetooth	VCC	NC	GND	RS232RX or RS485 (B, D-)	RS232 TX or RS485 (A, D+)

Note: The NC wire color function is a reserved wire, which is not connected by the user during use.

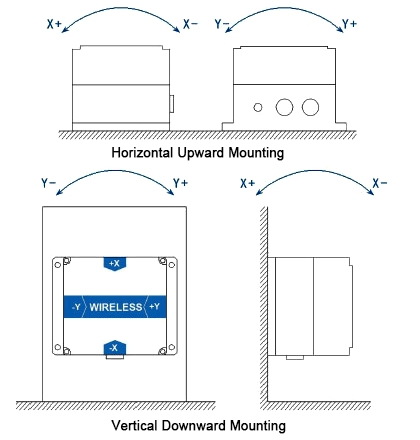

Installation

Bluetooth tilt sensor installation

Please install the inclinometer sensor following the proper procedure. Incorrect installation may result in measurement inaccuracies, with particular attention needed for the "surface" and "line" alignment.
The surface where the inclinometer sensor is mounted and the surface being measured should be firmly fixed, flat, and stable. Any unevenness in the mounting surface may lead to errors in the angle measurements of the sensor.
The axis of the wireless inclinometer sensor must be aligned parallel to the measured axis, ensuring that the two axes remain as close to each other as possible, avoiding any angular deviation between them.

Specs

Measuring Range	Biaxial ±90°
Output Interface	Bluetooth
Match Wireless Transmission Module	SUCH-TTS-S2630
Measuring Axis	X, Y Axis
Zero Temperature Drift	±0.002°/°C
Temperature Coefficient of Sensitivity	≤150ppm/°C
Frequency Response	DC response 100Hz
Resolution	0.002°/°C
Accuracy	0.01°
Long Term Stability	<0.015°
Power-on Start-up Time	0.2s
Response Time	0.05s
Radio Frequency	2460MHZ (default), 2405~2480 adjustable
Transmission Distance	1.6KM
Built-in Battery Capacity	6000mAh
Average Operating Time	≥55000 hours/times
Shock Resistance	20000g,0.5ms,3 times/axis
Vibration Resistance	10grms, 10~1000Hz
Insulation Resistance	≥100MΩ
Waterproof Grade	IP67
Supply Voltage	4.7-5.5V
Current Draw	Working mode: 35mA
Current Draw	Sleep mode: 5mA
Built-in Battery Capacity	5000mAh
Operating Temperature	-40°C~+85°C
Storage Temperature	-55°C~+125°C
Connector	Waterproof aviation socket
Housing Material	Aluminum alloy with matte oxidation
Mounting	Four M4 screws
Weight	460g (without box)

Note: This product is to be used with a wireless transmission module!

Application

Oil Drilling

Construction Vehicle

Geological Monitoring

FAQ

Q1: Why is choosing a bluetooth tilt sensor better than a wired one? ❯

Bluetooth tilt sensors provide wireless flexibility, eliminating the need for cables and allowing easy installation in hard-to-reach areas. They enable remote data transmission to smartphones, tablets, or computers, improving mobility and simplifying installation. This makes them ideal for applications requiring convenience, portability, and efficient monitoring without the limitations of wires.

Q2: What are the main benefits of using a wireless inclinometer? ❯

Wireless inclinometers, offer greater installation flexibility and convenience. They eliminate the need for physical cables, reducing clutter and potential damage. These sensors also allow remote monitoring from a distance, making them suitable for applications in machinery, construction, and environments that are difficult to reach with wired systems.

Q3: How far can I use the bluetooth tilt sensor from my device? ❯

The bluetooth tilt sensor's range can vary depending on the specific product and environmental factors, such as obstacles or interference. Generally, the effective range is specified in the product's technical documentation. For accurate range details, it's best to refer to the sensor's parameter table or contact us for more specific information based on your setup.
