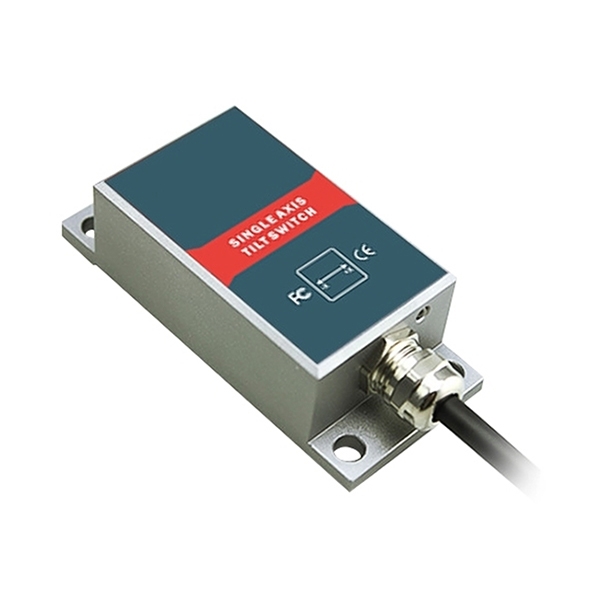

Single Axis Inclinometer Sensor, ±15°, Relay Output

0 review(s) | Add your review

SKU: SUCH-INS-LCA141

$353.33

● Measuring Range: ±15° ● Alarm Angle Value: 0-55° ● Measuring Axis: X, Y ● Waterproof Rating: IP67

Measuring Axis *
Alarm Angle Value (0-55°) *
Output *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

This SUCH tilt switch with relay NO/NC output offers a measuring range of ±15° and a wide alarm angle range of 0-55°. It features a working current of 40mA and an absolute accuracy of 0.1°. The single-axis/dual-axis inclinometer sensor is designed for harsh industrial environments. Widely used in applications like underground drilling rigs, geological equipment tilt detection.

Feature

This tilt sensor is suitable for use in various harsh industrial environments.
Both single-axis and dual-axis measurements are available.
It has an IP67 protection rating.

Dimension (Unit:mm)

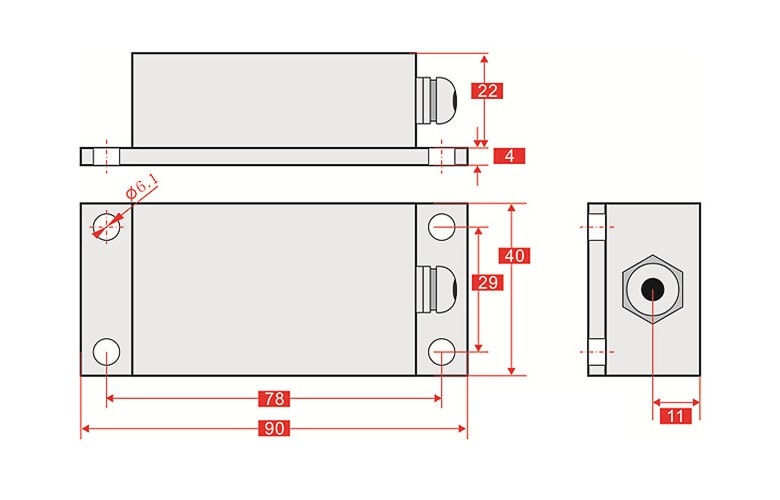

Single axis inclinometer sensor dimension

Installation Diagram

The installation should ensure that the bottom of the inclinometer sensor is parallel to the measured surface and minimize the impact of dynamic forces and acceleration on the sensor. This inclinometer sensor can be installed either horizontally or vertically. For installation, please refer to the following guidelines.

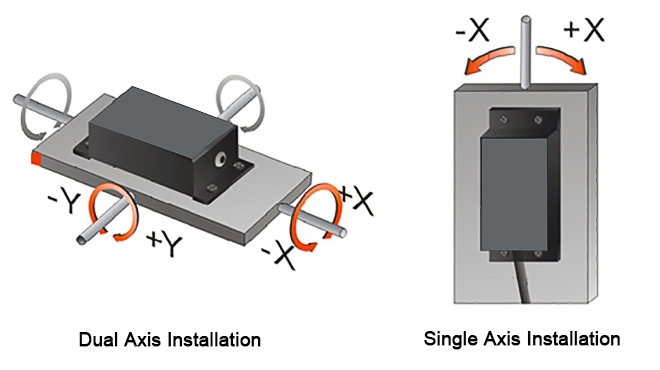

Single axis inclinometer sensor installation

Specs

Alarm Angle Value	0-55°
Power Supply	9-36V DC
Max. Alarm Output Current	1000mA
Working Current	40mA
Measuring Range	±15°
Measuring Axis	X, Y
Resolution	0.01°
Absolute Accuracy	0.05°
Long-term Stability	0.05
Zero Temp. Coeffiecient	-40~85℃, ±0.006℃
Temp. Sensitivity Coefficient	-40~85℃, ≤100 ppm/℃
Power on Time	0.1s
Response Time	0.2s
MTBF	≥50000h per time
IR	≥100MΩ
Impact Resistance	100g@11ms, 3 times/ axis (half sinusoid)
Anti-shock	10grms, 10-1000Hz
Waterproof Rating	IP67
Cable	1m, shield cable: 4*0.04mm²
Certificate	CE, FCC, RoHS
Warranty	12 months

Application

Oil Drilling

Construction Vehicle

Geological Monitoring

FAQ

Q1: What is an inclinometer sensor? ❯

An inclinometer sensor measures the tilt or angle of an object relative to the direction of gravity. It provides precise information about inclination for applications like level detection, machine posture monitoring, and structural safety, making it essential in many industrial and engineering fields.

Q2: How should an inclinometer sensor be installed? ❯

The sensor should be firmly mounted to a flat surface that represents the reference plane. Avoid placing it in areas with excessive vibration or shock, and make sure power and signal connections are made according to the datasheet to ensure reliable operation.

Q3: Is the sensor waterproof or dustproof? ❯

Many industrial models offer protection levels such as IP67 or IP68, making them resistant to dust and water immersion. Always verify the IP rating for your specific model to ensure it meets the environmental requirements of your application.
