Dual Axis Tilt Sensor, ±10°~±90°, CANopen

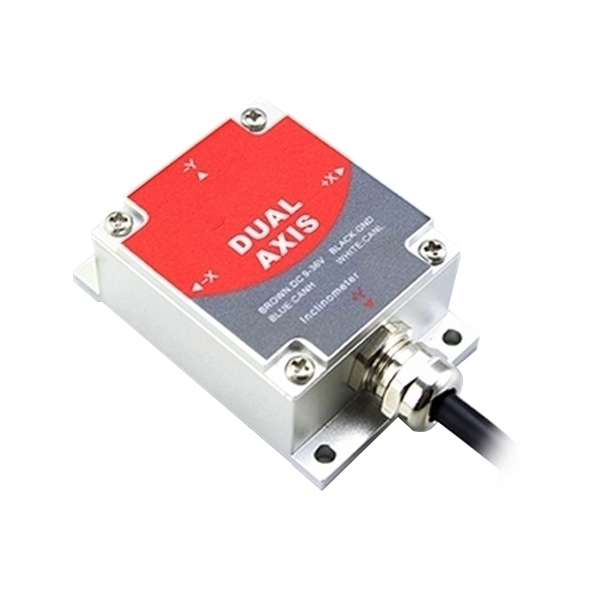

This industrial inclinometer sensor is perfect for harsh control applications. Available in both single-axis and dual-axis configurations, it offers selectable measuring ranges of ±10°, ±30°, ±60°, or ±90°. Featuring CANopen output signal and an absolute accuracy of 0.05°, this SUCH sensor ensure reliable performance in demanding environments. Additionally, it is equipped with a direct lead interface for seamless integration.

Feature

• The single and dual-axis inclinometer sensors are specifically designed for industrial control applications, offering stable, reliable performance and excellent scalability, making them ideal for harsh industrial environments.
• These inclinometer tilt sensors feature an industrial-standard isolated CAN transceiver and a built-in high-precision 16-bit A/D differential converter, enabling them to measure tilt and pitch angles relative to the horizontal plane using a 5th-order filtering algorithm.
• With an integrated high-precision digital temperature sensor, the inclinometer sensor compensates for temperature drift, ensuring consistent accuracy and high repeatability in both low and high-temperature conditions.
• The standard output response frequency of the inclinometer sensor is 18Hz, with options for higher frequencies available upon request.

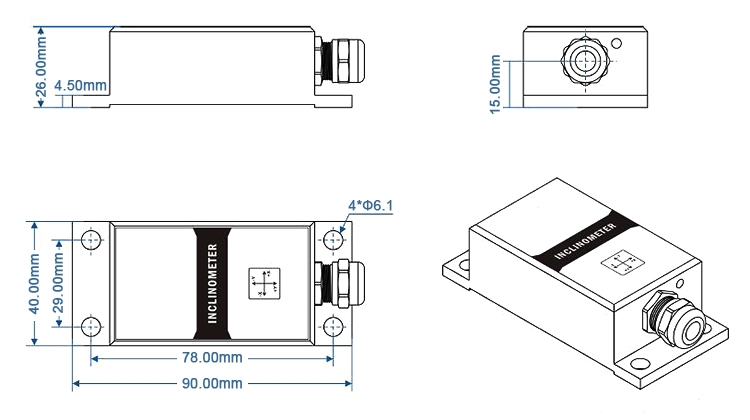

Dimension (Unit:mm)

Wiring Definition

CANopen Tilt Sensor Line Color Function

Installation Diagram

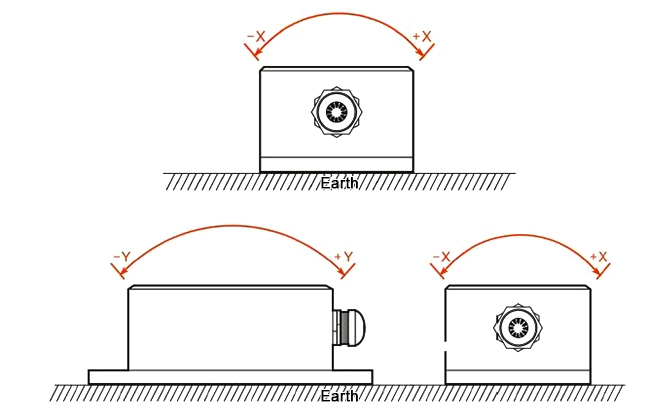

The installation should ensure that the bottom of the inclinometer sensor is parallel to the measured surface and minimize the impact of dynamic forces and acceleration on the sensor. This inclinometer sensor can be installed either horizontally or vertically. For installation, please refer to the following guidelines.
