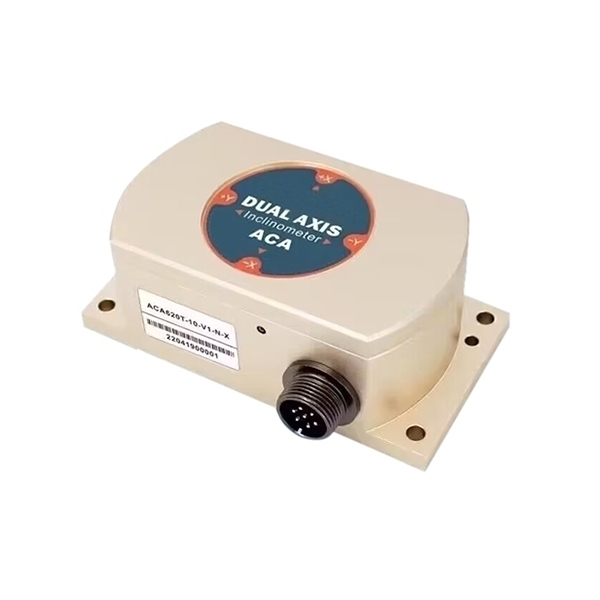

MEMS Inclinometer Sensor, ±10°~±90°, 0-5V

Name: MEMS Inclinometer Sensor, ±10°~±90°, 0-5V
Brand: Such.com
SKU: SUCH-INS-610620
Price: 949.85 USD
Availability: InStock
Rating: 5.0 (1 reviews)

1 review(s) | Add your review

SKU: SUCH-INS-610620

$949.85

● Measuring Range: ±10° / ±30° / ±60° / ±90° ● Measuring Axis: X / X, Y (Single / Dual) ● Output Signal: 0-5V ● Protection Rating: IP67

Measuring Axis *
Measuring Range *
Installation *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

The industrial tilt sensor offers single or dual-axis options with full temperature compensation and a 0-5V output signal. It has selectable measuring ranges of ±10°, ±30°, ±60°, or ±90°, and provides high-precision tilt detection with an accuracy of up to 0.003°. The sensor can be installed horizontally or vertically and is ideal for measuring tilt relative to gravity in various industrial applications.

Feature

The sensor provides full temperature compensation with an analog voltage output for single or dual-axis measurement.
It has a high-precision 24-bit A/D differential converter to ensure output voltage linearity.
The non-contact installation allows for easy system integration, with the tilt angle automatically calculated after installation.
The sensor uses MEMS technology, offering compact size, resistance to electromagnetic interference, and high durability against shock and vibration, making it ideal for industrial measurements.

Dimension (Unit:mm)

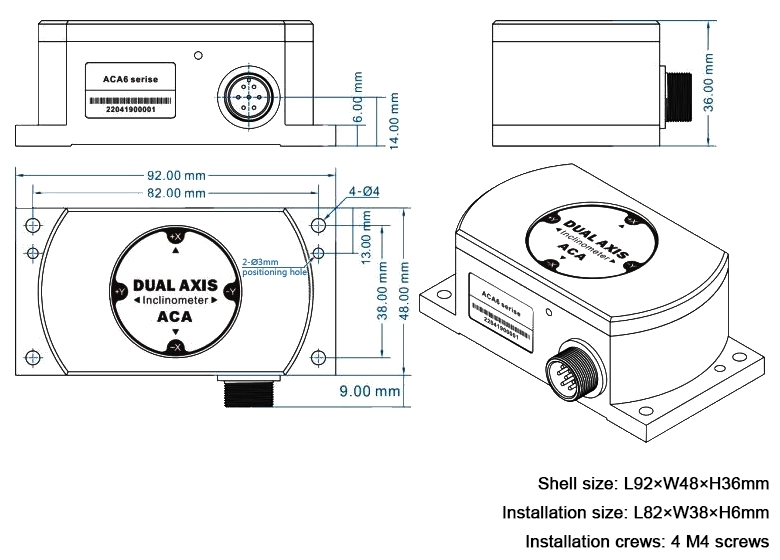

MEMS inclinometer sensor dimension

*Signal ground: Output voltage signal. Connect the GND of acquisition device.

Wiring Definition

Single Axis Tilt Sensor Line Color Function

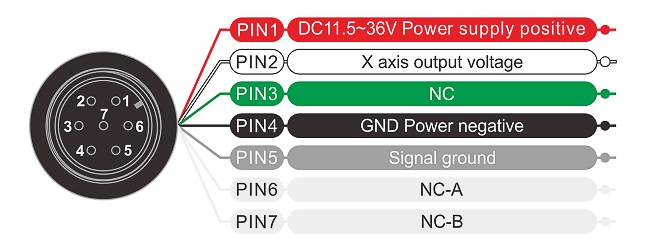

Single axis MEMS inclinometer sensor wiring

RED	WHITE	GREEN	BLACK	GRAY
DC 11.5-36V Power positive	Out X X axis output voltage	NC	GND Power negative	Signal GND

Dual Axis Tilt Sensor Line Color Function

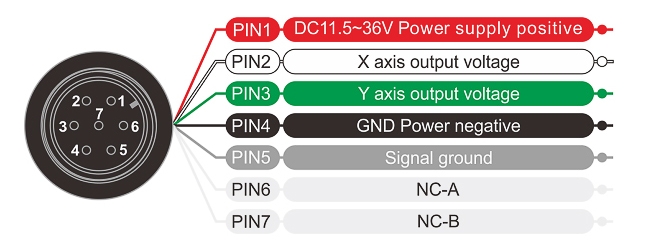

Dual axis MEMS inclinometer sensor wiring

RED	WHITE	GREEN	BLACK	GRAY
DC 11.5-36V Power positive	Out X X axis output voltage	Out Y Y axis output voltage	GND Power negative	Signal GND

Installation Diagram

The installation should ensure that the bottom of the inclinometer sensor is parallel to the measured surface and minimize the impact of dynamic forces and acceleration on the sensor. This inclinometer sensor can be installed either horizontally or vertically. For installation, please refer to the following guidelines.

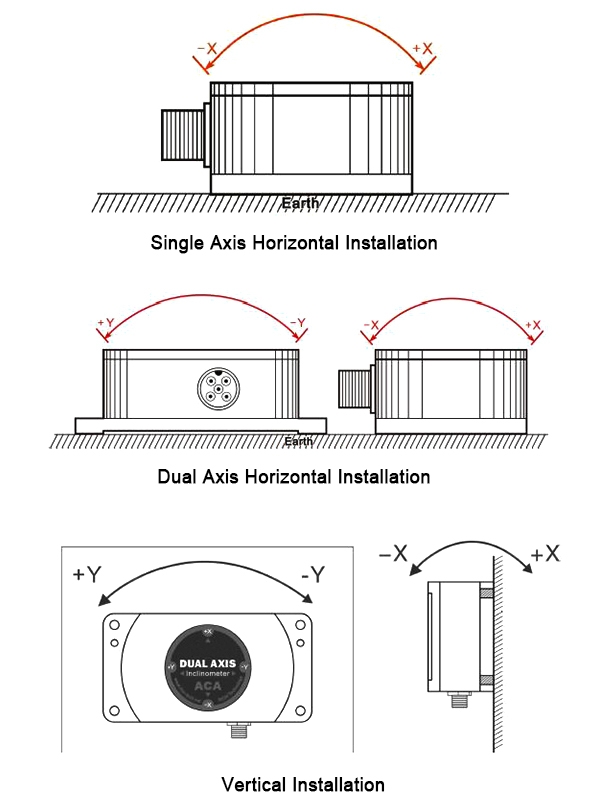

MEMS inclinometer sensor installation

Specs

Measuring Axis	X/XY (single/dual)
Measuring Range*	±10°	±30°	±60°	±90°
Zero Output (0° output)	2.5V
Resolution	0.0007°
Measuring Accuracy (@25℃)	0.003°	0.01°	0.02°	0.03°
Long Term Stability	0.01°	0.02°	0.03°	0.04°
Zero Temperature Coefficient (-40~85℃)	±0.0005°/℃
Sensitivity Temperature Coefficient (-40~85℃)	≤50 ppm/℃
Power On Time	0.5s
Response Time	0.02s
Response Frequency	1~20Hz
Output Signal	0-5V
Electromagnetic Compatibility	According to EN61000 and GBT17626
MTBF	≥50000 hours/times
Insulation Resistance	≥100MΩ
Shockproof	100g@11ms, 3 times/axis (half sinusoid)
Anti-Vibration	10grms, 10～1000Hz
Protection Rating	IP67
High Seismic Performance	＞2000g
Cables	Standard 2m length, wearproof, wide temperature, shielded cables 5P*5.7mm, aviation connector
Dimension	924836mm
Weight	235g (without cable)
*Note: This Technical data only list ±10°, ±30°, ±60°, ±90° series for reference, other measuring range please refer to the adjacent specifications.

Electrical Specification

Item	Min.	Standard	Max.	Condition
Power Supply	9V	12V, 24V	36V	Standard
Working Current	/	40mA	/	/
Output Load	10kΩ	/	/	Resistive
Output Load	/	/	20nF	Capacitive
Working Temperature	-40℃	/	+85℃	/
Store Temperature	-55℃	/	+100℃	/

PDF computing MEMS Inclinometer Sensor, ±10°~±90°, 0-5V User Manual

Application

Oil Drilling

Construction Vehicle

Geological Monitoring

FAQ

Q1: How does a MEMS inclinometer sensor work? ❯

The sensor works by detecting changes in the angle of an object with respect to the gravitational field. It uses micro-electromechanical components such as accelerometers or gyroscopes to measure the tilt and then outputs an analog voltage (typically 0-5V) corresponding to the tilt angle.

Q2: How do I calibrate a MEMS inclinometer sensor? ❯

Typically, MEMS inclinometer sensors are factory-calibrated and do not require additional calibration. However, to maintain optimal accuracy, ensure correct installation and proper environmental conditions.

Q3: Why is my inclinometer sensor showing inaccurate readings? ❯

This could be due to incorrect installation (e.g., the sensor bottom is not parallel to the measured surface), or external dynamic forces or accelerations affecting the sensor. Ensure stable installation and check electrical connections for proper setup.

1 review(s)

Write your own review Close

Review title: *

Review text: *

Rating:

1 2 3 4 5

From: Alexander Burton | Date: 7/28/2026 9:51 AM

mems inclinometer sensor is a good choice

I needed a smaller tilt sensor for an industrial monitoring project and decided to try this model. The mems inclinometer sensor responds quickly and the readings match the expected changes in angle. The housing feels sturdy, and the IP67 protection is useful for outdoor conditions. It took a little calibration work, but overall it does the job.
