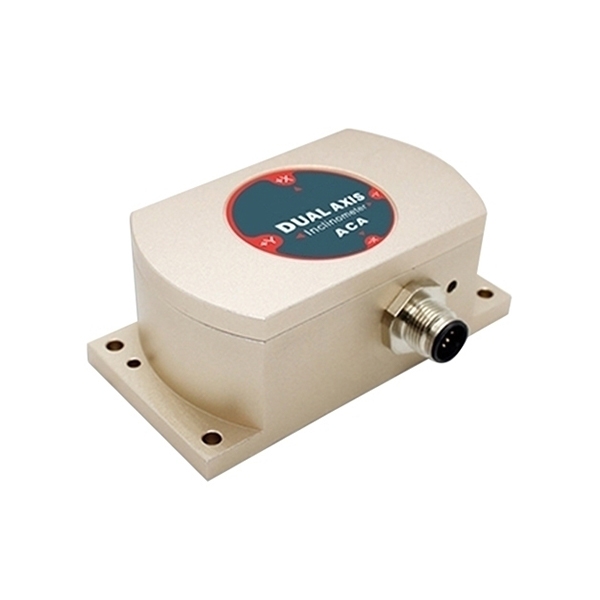

High Precision Inclinometer Sensor, ±3°~±30°

The high-precision industrial tilt sensor designed for applications requiring precise horizontal measurement and leveling. With a measurement range of ±3°, ±10°, ±15°, or ±30°, it offers full temperature compensation and an impressive maximum absolute accuracy of 0.002°. This sensor features a zero temperature coefficient of ±0.0002°/℃, ensuring stable performance across temperature variations. It also provides flexible output options, including RS232, RS485, RS422, and TTL, making it ideal for various industrial settings.

Feature

• This SUCH single/dual-axis inclinometer sensor offers high precision, full temperature compensation, and Modbus protocol, replacing traditional level gauges.
• It supports digital signal transmission and computer software for simultaneous data measurement and recording, with output options RS232, RS485, RS422, and TTL.
• The non-contact installation design ensures easy integration. Simply mount the sensor to the surface, and it will automatically calculate the tilt angle.
• Compact, resistant to electromagnetic interference, shock, and vibration, the inclinometer sensor is widely used in industrial measurement.

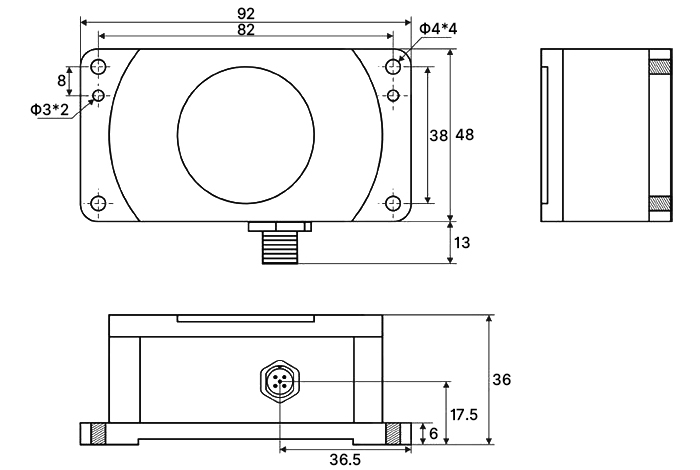

Dimension (Unit:mm)

Wiring Definition

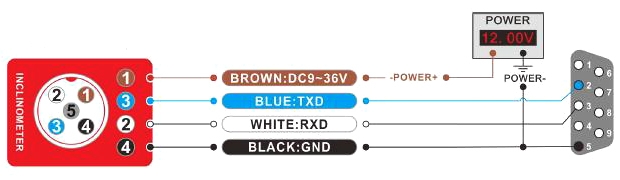

RS232 Tilt Sensor Line Color Function

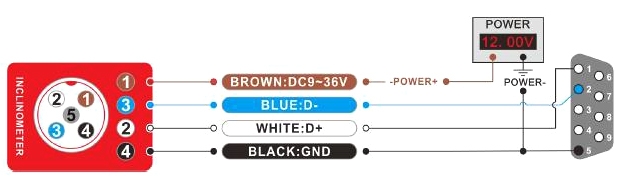

RS485 Tilt Sensor Line Color Function

RS422 Tilt Sensor Line Color Function

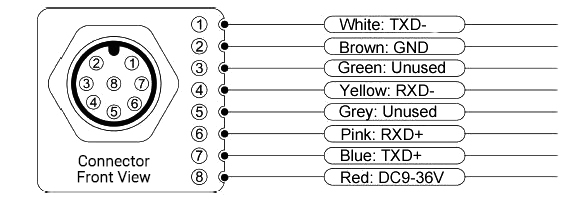

• Connector Wiring

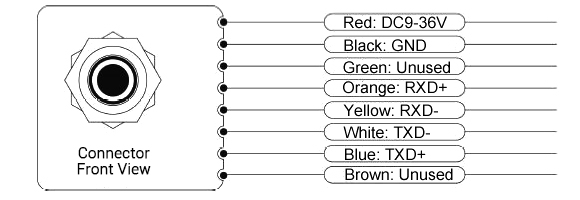

• Direct Lead Wiring

Installation Diagram

The installation should ensure that the bottom of the inclinometer sensor is parallel to the measured surface and minimize the impact of dynamic forces and acceleration on the sensor. This inclinometer sensor can be installed either horizontally or vertically. For installation, please refer to the following guidelines.
