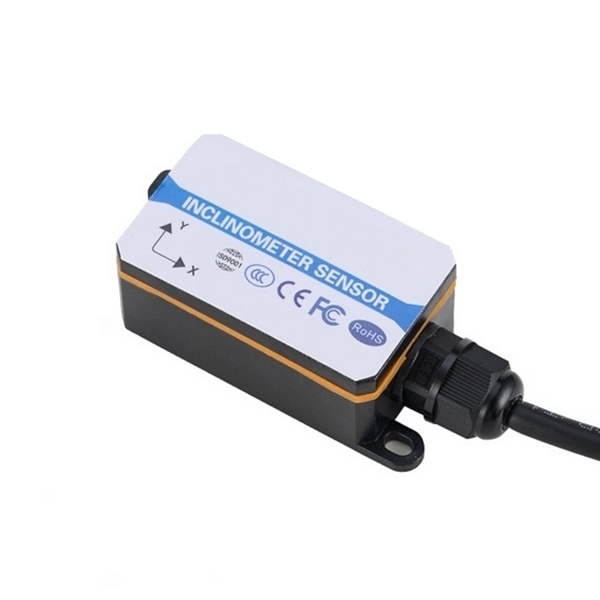

Digital Tilt Sensor, ±90°~180°, RS232/ RS485

SKU: SUCH-TTS-MK326T

$102.06

● Measuring Range: ±90° / ±180° ● Measuring Axis: X / X, Y ● Output Signal: RS232, TTL (USART), RS485, RS422 (optional) ● Protection Rating: IP67

Output *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

The SUCH digital inclinometer sensor provides precise angle measurement with 0.1° resolution and 0.2°-0.3° accuracy, suitable for solar tracking, machinery, and vehicle overload detection. Built with MEMS technology, it offers fast response times, IP67 protection, and operates in temperatures from -40°C to +85°C.

Feature

With 0.1° resolution and 0.2°–0.3° accuracy, this sensor ensures precise and reliable angle measurement for a wide range of applications.
The sensor features a 0.01s response time and 0.2s startup, making it ideal for dynamic angle detection in solar tracking and vehicle overload monitoring.
Built with an IP67 rating, the sensor operates in extreme conditions, with a temperature range from -40°C to +85°C, ensuring reliable performance in harsh industrial environments.
The sensor is available in both dual-axis and single-axis options, suitable for specific industrial applications such as machinery, construction, and solar panel installations.

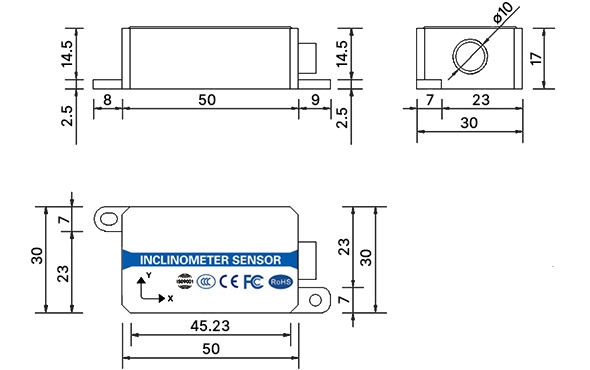

Dimension (Unit:mm)

Digital tilt sensor dimension

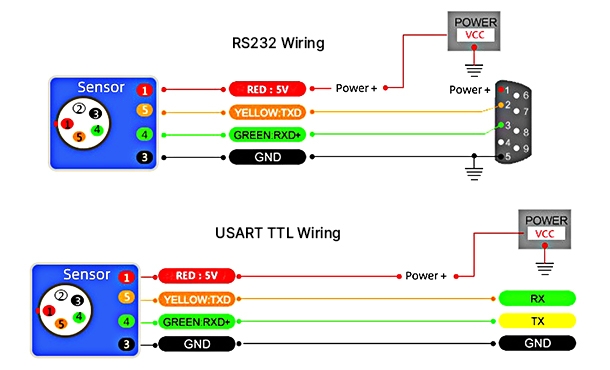

Wiring Definition

Digital tilt sensor wiring

Line Color	Red	White	Black	Green	Yellow
Output Interface	1	2	3	4	5
RS232	VCC	NC	GND	RXD	TXD
RS485	VCC	NC	GND	(B、D-)	(A、D+)
TTL	VCC	NC	GND	RXD	TXD

Line Color	Red	Black	Green	Yellow	White	Brown
Output Interface	1	2	3	4	5	6
RS422	VCC	GND	RXD-(B-)	RXD+(A+)	TXD+(A+)	TXD-(B-)

Specs

Measured Axes	X, Y axes	X axis
Measurement Range	±90°	±180°
Accuracy	0.2°	0.3°
Long-Term Stability	0.22Hz	0.35Hz
Operating Temperature	-40°C to +85°C
Power Supply Voltage	DC 5V (optional DC 9~36V)
Sensitivity Temperature Coefficient	≤200
Frequency Response	100
Power-On Start-Up Time	0.2s
Response Time	0.01s
Customizable Output Frequency	5Hz output, 15Hz, 35Hz, 50Hz configurable
Output Signal	RS232, TTL (USART), RS485, RS422 available upon request
Average working hours	≥35,000 hours/cycle
Shock Resistance	2450g, 0.5ms, 3 times/axis
Vibration Resistance	10grms, 10~1000Hz
Insulation Resistance	≥100MΩ
Waterproof Rating	IP67 (IP68 available upon request)
Cable	Standard 1.5m length, abrasion-resistant, oil-resistant, wide-temperature, shielded cable 4*0.2mm²
Weight	30g (Excluding packaging)
Dimension	L50W30H17mm

Application

Oil Drilling

Construction Vehicle

Geological Monitoring

FAQ

Q1: What are the advantages of using RS485 communication over RS232? ❯

RS485 allows for longer cable lengths and supports multiple devices on a single bus, making it ideal for industrial or large-scale applications. RS232 is typically used for shorter distances and simpler connections.

Q2: What is the typical response time of the sensor? ❯

The response time of the Digital Tilt Sensor varies depending on the model but is typically in the range of milliseconds, providing fast, real-time data for dynamic applications.

Q3: What are the advantages and limitations of digital tilt sensors? ❯

Digital tilt sensors offer precise angle measurements with fast response times, making them ideal for dynamic applications like solar tracking and machinery overload detection. They are built to withstand harsh environments, offering durability and reliability even in extreme temperatures. However, these sensors often require a stable DC power supply and may be limited by communication protocol range, especially with RS232, which is not suited for long-distance or large-scale setups.
