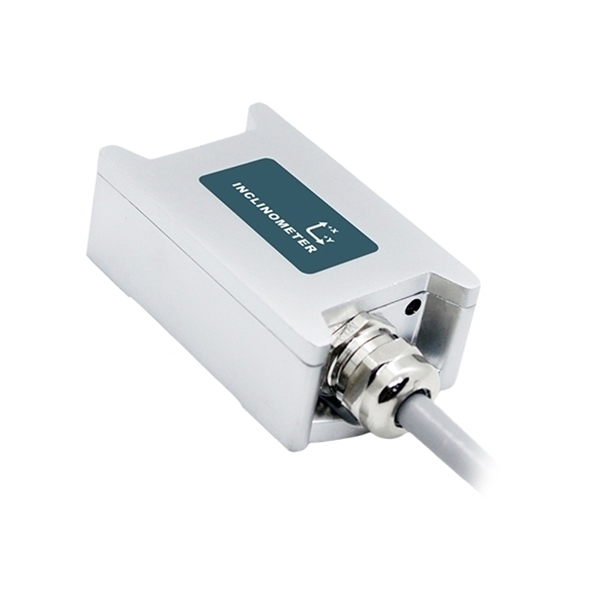

Waterproof Inclinometer Sensor, ±90°, 1 Axis/2 Axis

Name: Waterproof Inclinometer Sensor, ±90°, 1 Axis/2 Axis
Brand: Such.com
SKU: SUCH-INS-MCA
Price: 85.88 USD
Availability: InStock

0 review(s) | Add your review

SKU: SUCH-INS-MCA

$85.88

● Measuring Axis: 1 Axis / 2 Axis ● Measurement Accuracy: ±0.3° (@ 25°C) ● Protection Rating: IP67 ● Appearance: Metal Housing

Measuring Axis *
Installation Method *
Measuring Range *
Output Method *
Protocol Type *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

The waterproof inclinometer sensor is a high-precision MEMS tilt sensor designed for industrial applications in harsh environments. Featuring a resolution of 0.1° and an accuracy of ±0.3° at 25°C, it ensures reliable tilt measurements. With a fast 0.05s response time and stable performance in temperatures from -40°C to +85°C, the SUCH sensor is well-suited for automation, robotics, and construction machinery.

Feature

This digital inclinometer sensor is designed for easy and fast mounting, offering a simple and intuitive setup process.
It ensures reliable and accurate measurements, even in diverse operating conditions.
The SUCH sensor is both waterproof and dustproof (IP67), ensuring long-lasting durability and reliable performance in tough industrial environments.

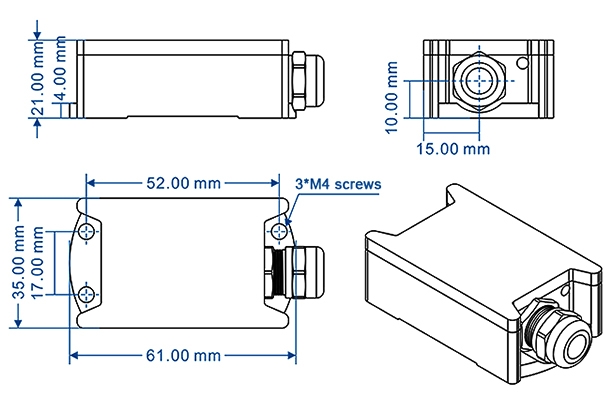

Dimension (Unit:mm)

Waterproof inclinometer sensor dimension

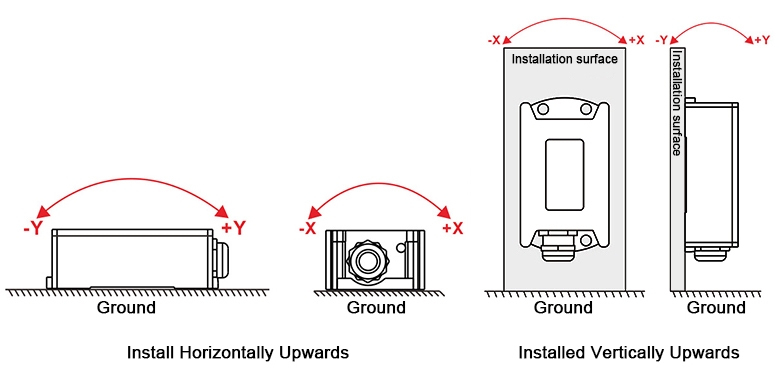

Installation

Waterproof inclinometer sensor installation

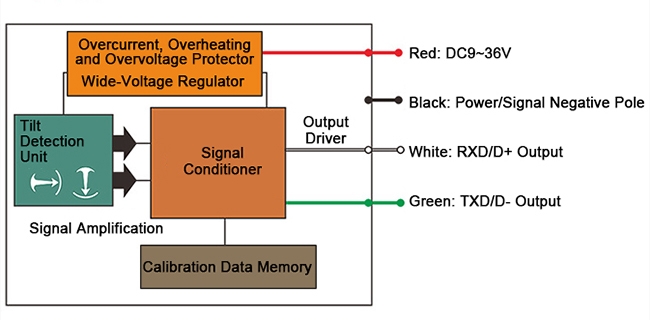

System Diagram

Waterproof inclinometer sensor system

Specs

Resolution	0.1°
Measurement Accuracy (RMS)	±0.3° @ 25°C
Response Time	0.05s
Temperature Drift Characteristics	±0.5° (-40°C ~ +85°C)
Output Load	>500 Ohms
Operating Time	50,000 hours (MTBF)
Insulation Impedance	>100 MΩ
Vibration Resistance	10g_rms, 10~1000Hz
Shock Resistance	100g @ 11ms, Tri-axial (Half-sine wave)
Weight	135g (excluding cable)
Product Certification	CE, Design Patent
Appearance	Metal Housing
Quality System	GB/T19001-2016 idt ISO19001:2015 Standard (Certificate No.: 128101)

PDF computing MCA416T/426T Digital Output Inclinometer Sensor User Manual

PDF computing MCA416M/426M Modbus Output Inclinometer Sensor User Manual

Application

Oil Drilling

Construction Vehicle

Geological Monitoring

FAQ

Q1: Why is vibration and shock resistance important for this sensor? ❯

The sensor’s vibration resistance (10g_rms) and shock resistance (100g) ensure that it maintains its accuracy and performance even in environments with high mechanical stress or sudden impacts, such as heavy machinery or automated systems.

Q2: How does the waterproof inclinometer sensor ensure long-lasting durability? ❯

With its robust IP67 protection, resistance to vibrations and shocks, and high-quality construction, the sensor is designed to withstand tough industrial environments. It also boasts a service life of up to 50,000 hours, offering long-term reliability with minimal maintenance.

Q3: What is the IP67 rating, and why is it important for the inclinometer sensor? ❯

The IP67 rating indicates that the sensor is completely dustproof and can withstand immersion in water up to 1 meter deep for up to 30 minutes. This makes the sensor highly durable in harsh and wet environments, ensuring reliable performance in industries such as automation, construction, and robotics.
