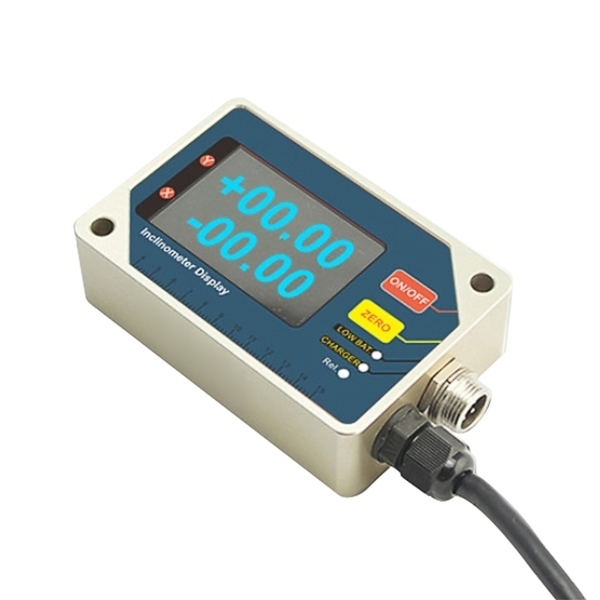

    Picture of Industrial Tilt Sensor Monitor with Display, 0.01°/ 0.001° Resolution Picture of Industrial Tilt Sensor Monitor with Display, 0.01°/ 0.001° Resolution

    Industrial Tilt Sensor Monitor with Display, 0.01°/ 0.001° Resolution

    0 review(s) | Add your review
    SKU: SUCH-TSM-600
    $232.94
    ● Resolution: 0.01° / 0.001° ● Transmission Distance: RS232 (50m) / RS485 (500m) ● Interface Type: Straight Lead Type ● Weight: 0.26kg
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    The high precision digital inclinometer display is a compact and durable device designed for accurate angle measurement in industrial monitoring and automation control. It features dual digital screens with a resolution of 0.01° / 0.001° for precise real-time readings. The wide-temperature LCD ensures reliable performance, making it suitable for harsh environments. The device also offers zero and alarm calibration functions for easy customization, while its rugged housing and PVC film keypad ensure durability in demanding conditions.

    Feature

    • High-Precision Digital Display: The handheld inclinometer monitor offers clear dual-screen readings with a resolution of 0.01°/0.001°, ensuring precise angle measurements.
    • Industrial-Grade LCD: Built for industrial inclinometer applications, the display remains reliable and visible in temperatures ranging from -25°C to 80°C, offering durability and excellent performance.
    • Stable Communication: Capable of transmitting data over distances up to 500m, ensuring fast and reliable connections for digital angle monitoring systems.
    • Easy Calibration and Customization: Features zero calibration, magnetic correction, and alarm settings, along with a customizable panel and key functions for flexible automation.

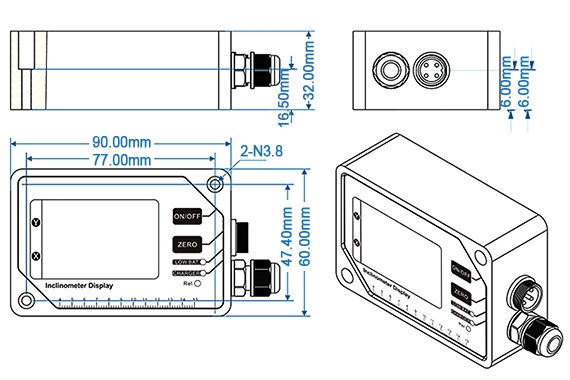

    Dimension (Unit:mm)

    Industrial tilt sensor monitor dimension

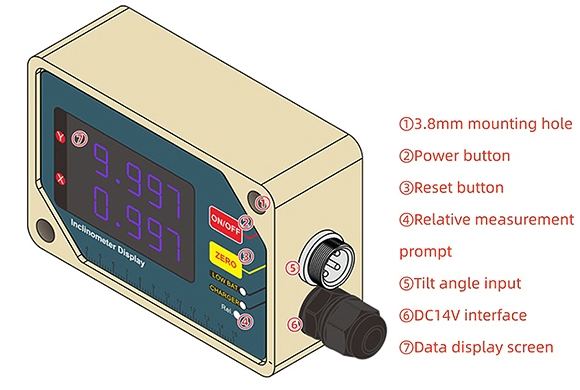

    Details

    Industrial tilt sensor monitor details

    Specs
    Voltage DC12V external power supply
    Resolution 0.01° 0.001°
    Transmission Distance RS232 50m RS485 500m
    Operating Temperature -25~80℃
    Interface Type Straight lead type
    Housing Dimensions L90*W60*H32mm
    Mounting Dimensions L77*W47.4*H16.5mm
    Mounting Screw Specifications Two M3 screws
    Weight 0.26kg
    Warranty Period 1 year

    Note: This inclinometer sensor monitor serves as a data presentation terminal and must be paired with a compatible sensor.

    Application
    Tilt sensor for oil drilling

    Oil Drilling

    Tilt sensor for construction vehicle

    Construction Vehicle

    Tilt sensor for geological monitoring

    Geological Monitoring

    FAQ
    ❯

    The inclinometer sensor monitor is designed to measure the tilt or inclination angle of equipment or structures in real-time. The monitor provides immediate visual feedback on the tilt status, allowing operators to adjust machinery or structures to ensure stability and prevent accidents

    ❯

    By providing real-time, on-site monitoring of tilt and inclination, these devices enable operators to react quickly to any dangerous or unstable conditions. For example, in construction vehicles, the display allows operators to see when the equipment is at risk of tipping over. In oil drilling, it ensures that the drill maintains the correct angle, preventing damage to the equipment or surrounding environment.

    ❯

    Monitoring tilt angles is crucial in industrial applications because many machines and structures can become unstable if their tilt exceeds safe limits. For example, cranes or drilling rigs may tip over if the tilt angle is not monitored, leading to equipment damage, production delays, or even worker injuries. Tilt monitoring helps ensure the stability and safety of machinery, reducing the risk of accidents and improving operational efficiency.
