Dual Axis Inclinometer Sensor, ±10°~±90°, Modbus

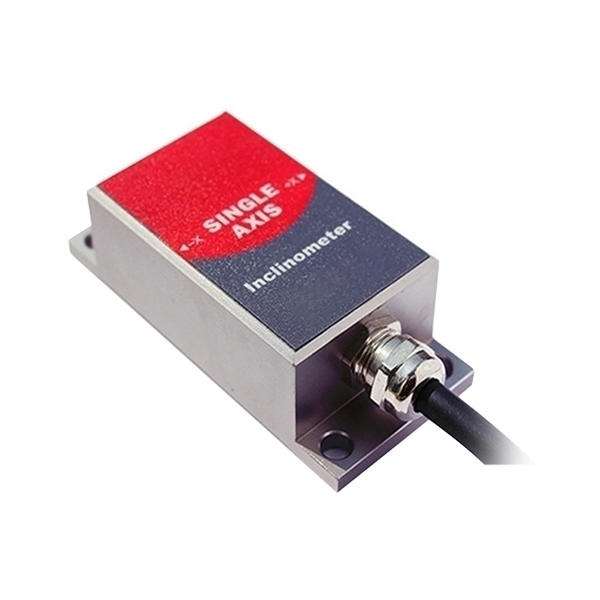

This SUCH inclinometer sensor offers optional measuring ranges of ±10° to ±90° and features Modbus output with interfaces including RS232, RS485, and UART TTL. With an absolute accuracy of 0.05° and a wide power supply range of 9-36V, this reliable and stable industrial tilt switch sensor is designed for use in harsh environments, providing excellent scalability and performance for various industrial applications.

Feature

• The inclinometer sensor with Modbus communication uses an RS485 differential bus for data transmission, and it is available in both single-axis and dual-axis options.
• This SUCH tilt sensor incorporates a high-precision 16-bit A/D differential converter, allowing it to accurately measure the tilt and pitch angles relative to the horizontal plane, employing a 5th-order filtering algorithm for precise output.
• It features a built-in high-precision digital temperature sensor that compensates for temperature drift, maintaining consistent repeatability in both low and high-temperature environments.
• The sensor's standard output frequency is 18Hz; however, if a higher response frequency is needed, customized configurations can be provided upon request.

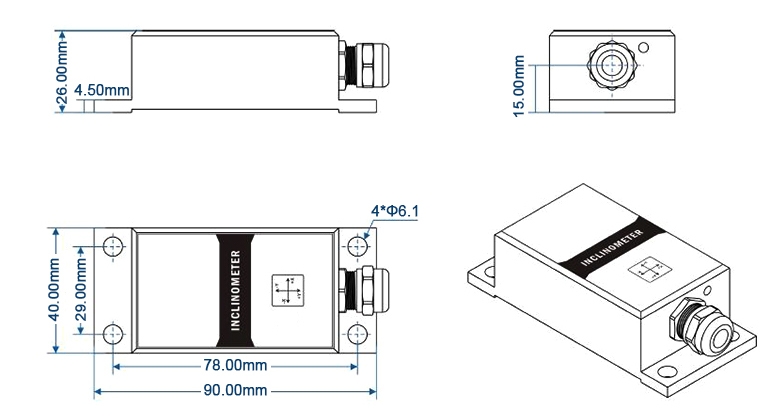

Dimension (Unit:mm)

Wiring Definition

RS485 Tilt Sensor Line Color Function

RS232/TTL Tilt Sensor Line Color Function

RS422 Tilt Sensor Line Color Function

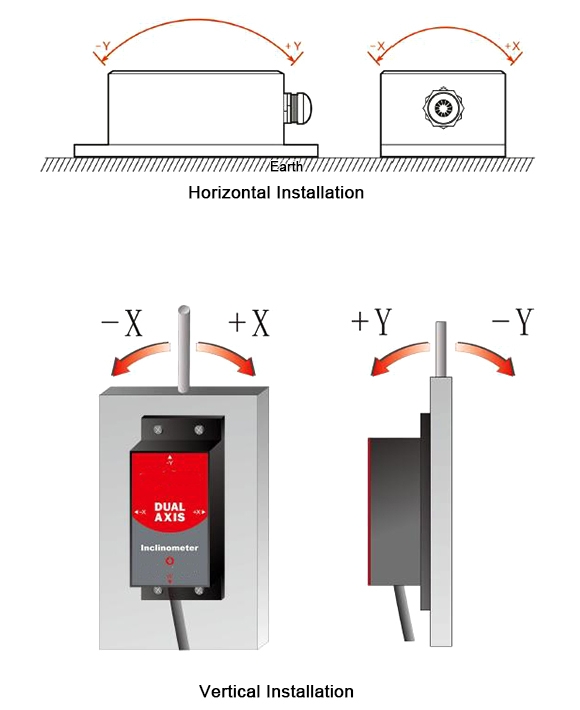

Installation Diagram

The installation should ensure that the bottom of the inclinometer sensor is parallel to the measured surface and minimize the impact of dynamic forces and acceleration on the sensor. This inclinometer sensor can be installed either horizontally or vertically. For installation, please refer to the following guidelines.
