Industrial Temperature Sensor, 0-100℃ to -50-300℃

Name: Industrial Temperature Sensor, 0-100℃ to -50-300℃
Brand: Such.com
SKU: SUCH-TS-CWDZ05M
Price: 92.68 USD
Availability: InStock
Rating: 5.0 (1 reviews)

1 review(s) | Add your review

SKU: SUCH-TS-CWDZ05M

$92.68

● Range: 0-100℃, 0-200℃, 0-300℃, -50-50℃, -50-100℃,-50-300℃ ● Output Signal: 4-20mA, RS485 (Optional) ● Accuracy Level: 0.25%FS, 0.5%FS ● Housing Material: ABS Engineering Plastic

Temperature Range *
Output Signal *
Insertion Depth *
Accuracy *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

This industrial temperature sensor offers a wide measurement range, from -50°C to 300°C, with options like 0-100°C, 0-200°C, and 0-300°C, making it suitable for various industrial applications. The SUCH sensor comes with an optional 4-20mA or RS485 output signal, offering flexible integration into different systems. Designed with a detachable probe, maintenance and on-site replacements are quick and easy. Built with durable ABS engineering plastic, it ensures reliable performance in challenging environments.

Feature

This temperature sensor features a detachable probe, allowing for straightforward maintenance and on-site replacements without hassle.
Engineered for precision, this sensor provides highly accurate temperature measurements, ensuring reliable data for industrial settings where exact readings are essential.
With the capability to measure temperatures as high as 500°C, this SUCH sensor is well-suited for a wide range of industrial applications that require high-temperature monitoring.
The sensor is CE certified, ensuring it meets all necessary safety, health, and environmental regulations required by the European Union.

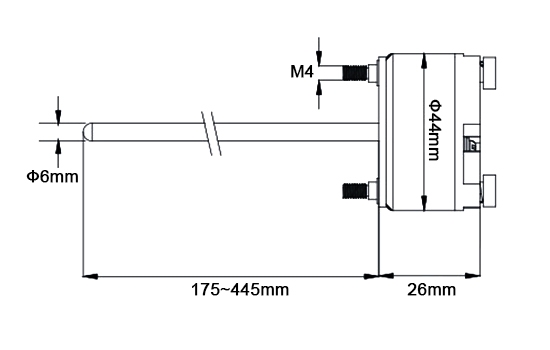

Dimension (Unit:mm)

Industrial temperature sensor dimension

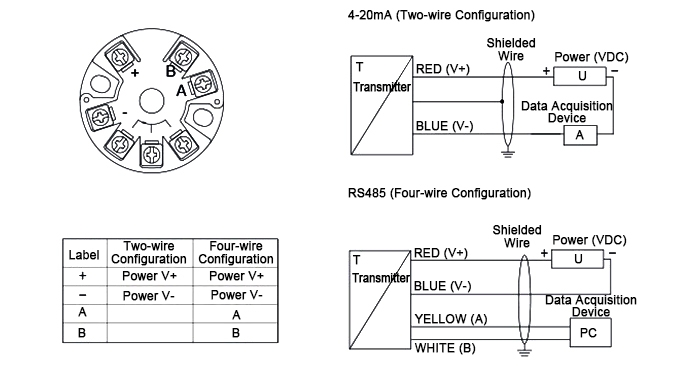

Wiring Diagram

Industrial temperature sensor wiring diagram

Note: Oval symbol indicates the shield (shielded wire). All grounding points indicated must be properly connected to ground. It is recommended to use shielded twisted-pair signal cables. To prevent ground loops, the shield should be grounded at only one end — insulated and left floating at the transmitter side, and grounded at the control cabinet side.

Specs

Temperature Range	0-100℃, 0-200℃, 0-300℃, -50-50℃, -50-100℃,-50-300℃
Accuracy Level	0.25%FS (Default), 0.5%FS (Optional)
Accuracy	1/3B Level
Output Methods	Pt100, Digital
Insertion Depth	175mm / 195mm / 245mm / 295mm / 345mm / 445mm (Optional)
Resolution	0.1℃
Working Temperature	85°C
Housing Material	ABS Engineering Plastic
Tube Material	304 Stainless Steel (Contact with the Measured Medium)
Stability	±0.1% FS/year
Connection Time	400ms

Application

Industrial Gases

Industrial Equipment

HVAC

FAQ

Q1: Why are Pt100 temperature sensors ideal for industrial use? ❯

Pt100 temperature sensors are ideal for industrial applications because of their high accuracy, durability, and wide temperature range. Made from platinum, these sensors provide reliable and precise temperature measurements, typically within ±0.1°C, making them essential for critical industrial processes. They can operate in temperatures ranging from -200°C to +850°C, and are highly resistant to corrosion and mechanical stress, ensuring long-term stability in harsh environments. Additionally, their standardized calibration (IEC 60751) ensures compatibility with a variety of systems, making them a versatile choice for industries such as manufacturing, chemical processing, and energy.

Q2: How does the wide temperature range of this sensor benefit various industrial environments? ❯

The wide temperature range of this industrial temperature sensor, from -50°C to 300°C, makes it highly versatile and suitable for a broad spectrum of industrial applications. This extended range allows the sensor to measure both low and high temperatures, making it ideal for industries with diverse temperature requirements, such as chemical processing, food production, and HVAC systems. Whether it's monitoring freezing conditions in storage facilities or high temperatures in manufacturing processes, this sensor ensures accurate and reliable temperature measurements across a variety of challenging environments.

Q3: Why is the replaceable probe feature important for industrial temperature sensors? ❯

The replaceable probe feature is a key advantage for industrial temperature sensors as it simplifies maintenance and reduces downtime. In industrial settings, sensors are often exposed to harsh conditions that can cause wear or damage over time. With a detachable probe, maintenance or replacement can be done quickly and efficiently without the need to replace the entire sensor unit. This feature allows operators to perform on-site repairs, minimizing the impact on production processes. Additionally, it offers cost savings since only the probe needs to be replaced rather than the entire sensor system, making it a more economical solution for long-term use in demanding environments.
