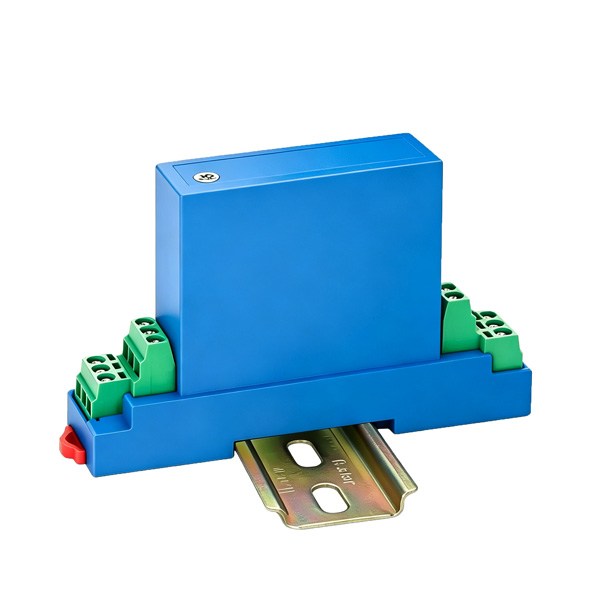

Isolated AC Voltage Sensor, 0–1000V Input, 0-5V/0-10V DC Output

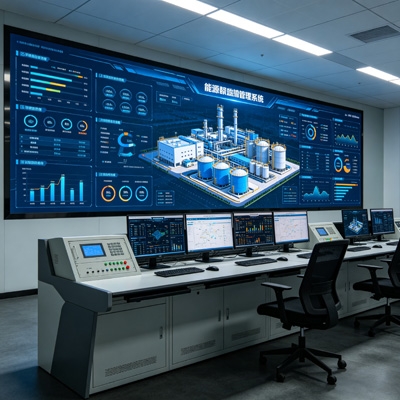

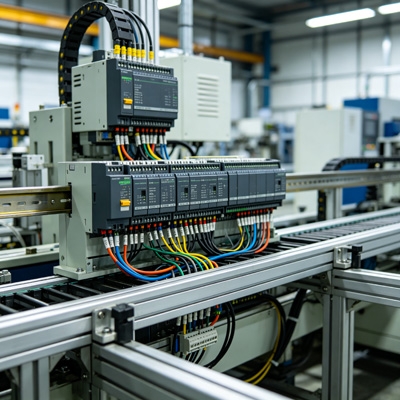

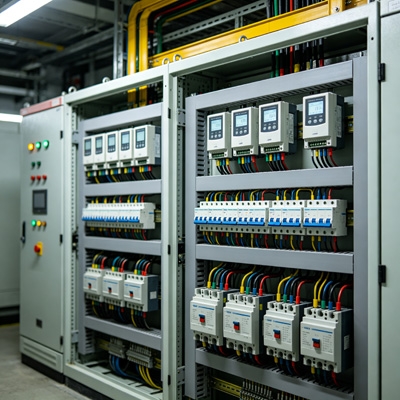

The SUCH isolated AC voltage sensor converts AC voltage signals from 0–1000V into standard DC outputs of 0–5V or 0–10V, designed for industrial-grade measurement and control applications. It uses electromagnetic isolation technology to maintain complete electrical separation between input and output circuits, ensuring signal stability and system safety. The device supports both DIN rail and panel mounting, with a response time under 100ms and an operating temperature range of -10°C to +70°C. This AC voltage transducer is suitable for industrial automation, energy management, power monitoring, and equipment condition monitoring.

Feature

This isolated AC voltage sensor measures AC voltage up to 1000V and converts it into a standard DC output signal of 0–5V or 0–10V via electromagnetic isolation technology.

• Electromagnetic Isolation
  Maintains complete electrical separation between high-voltage input and low-voltage output circuits, with an isolation withstand voltage of 2kV/50Hz for 1 minute.
• Output Signal
  Supports selectable 0–5V or 0–10V DC output, compatible with PLCs, controllers, and data acquisition systems.
• Response Time
  Response time under 100ms supports real-time AC voltage monitoring and fault detection.
• Frequency Range
  Operates from 20Hz to 5kHz, suitable for power frequency (50/60Hz) and variable frequency drive (VFD) applications.
• Installation
  Supports DIN rail and panel mounting for flexible integration into electrical cabinets and control panels.
• Operating Conditions
  Operating temperature range of -10°C to +70°C, with storage temperature from -25°C to +85°C.

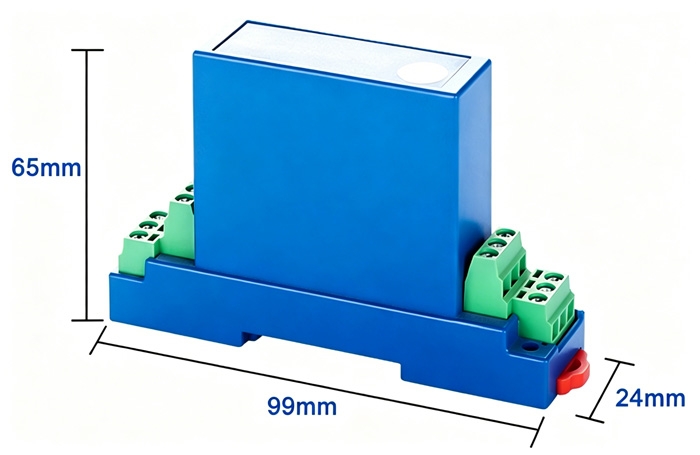

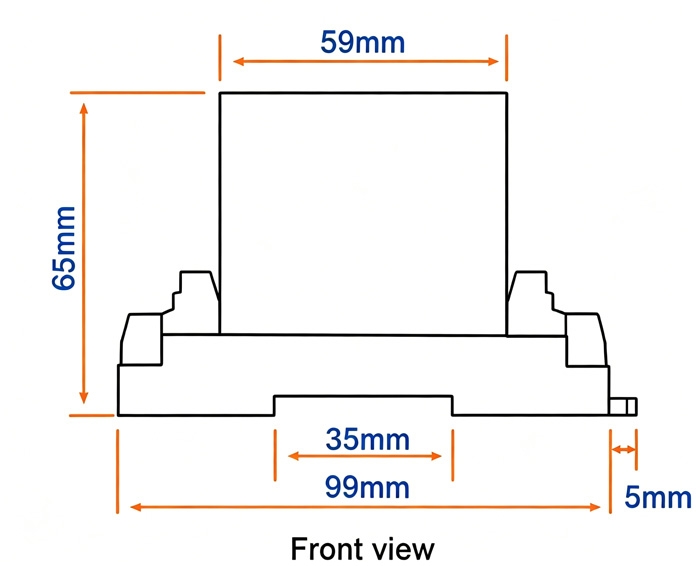

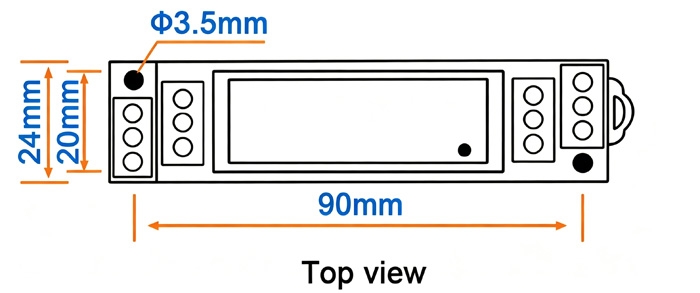

Dimension

Wiring

How to Wire an Isolated AC Voltage Sensor?

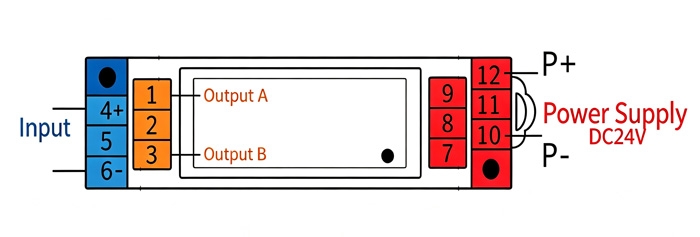

The following wiring diagram shows how to connect the SUCH isolated AC voltage sensor to the input signal, output device, and auxiliary power supply. Ensure all connections are made with the power off before installation.

1. Input Connection

Connect the AC voltage input terminals to the measured line (0–1000V AC). Ensure the input wiring is rated for the maximum voltage of the application.

2. Auxiliary Power Supply

Connect the auxiliary power supply to the designated terminals. This isolated AC voltage sensor supports DC24V or AC/DC220V power input (user-specifiable). Verify the supply voltage before powering on.

3. Output Connection

Connect the output terminals to the receiving device (PLC, controller, or data acquisition system). Select the appropriate output signal range (0–5V or 0–10V DC) based on the input specifications of the connected device.

4. Load Capacity

The voltage output supports a maximum load current of 5mA. Do not exceed this rating to avoid signal distortion or device damage.
