AC/DC Voltage Transducer, 75mV–500V, RMS 4-20mA/0-10V Output

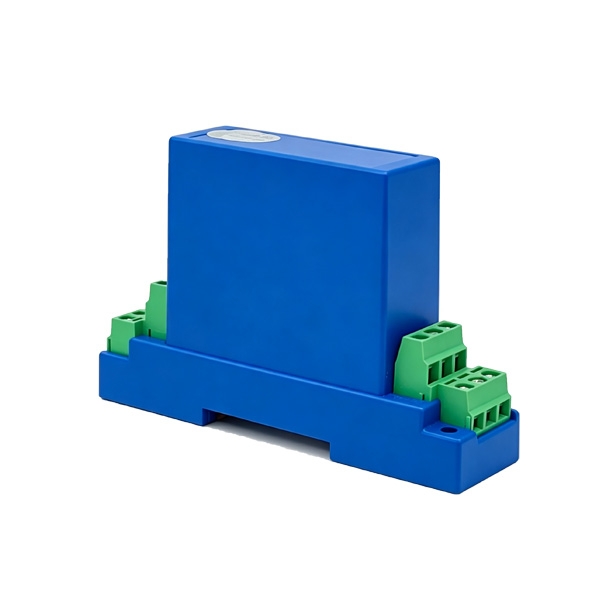

Name: AC/DC Voltage Transducer, 75mV–500V, RMS 4-20mA/0-10V Output
Brand: Such.com
SKU: SUCH-VOS-ACDC500
Price: 161.27 USD
Availability: InStock
Rating: 5.0 (1 reviews)

1 review(s) | Add your review

SKU: SUCH-VOS-ACDC500

$161.27

● Measuring range of input voltage AC/DC 0–75mV to 0–500V ● DC output 0–5V / 0–10V, 4–20mA / 0–20mA, True RMS optional ● Power supply DC 12V±10%, DC 24V±10% ● Accuracy 0.5% F.S.

Measuring Range *
Output Signal *
Power Supply *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

The SUCH AC/DC voltage transducer is a signal converter that transforms AC or DC input voltage into a proportional DC output signal — 0-5V, 0-10V, 0-20mA, or 4-20mA. It supports nine selectable input ranges from 75mV to 500V and provides galvanic isolation between input and output circuits. Common applications include power quality monitoring, energy management systems, motor drive control, and building automation.

Feature

AC/DC Input, 9 Selectable Ranges (0–75mV to 0–500V) — covers multiple voltage measurement needs without requiring separate devices.
Output Signal 0-5V / 0-10V / 0-20mA / 4-20mA — specified at order to match the analog input of the receiving system.
True RMS Output Version Available — provides accurate readings when the measured waveform contains harmonic distortion.
Galvanic Isolation, DC 1.5kV / 1 min — protects downstream equipment from high-voltage transients on the input side.
Accuracy ±0.5% F.S. — suitable for industrial power monitoring and process control applications.
Frequency Range DC to 10kHz — compatible with standard grid frequencies (50/60Hz) and variable frequency drive outputs.
Auxiliary Power DC 12V or DC 24V — fits common panel power supply configurations without additional conversion.
35mm DIN Rail or M3 Screw Mounting — accommodates standard control panel enclosures and custom mounting setups.

Dimension (Unit:mm)

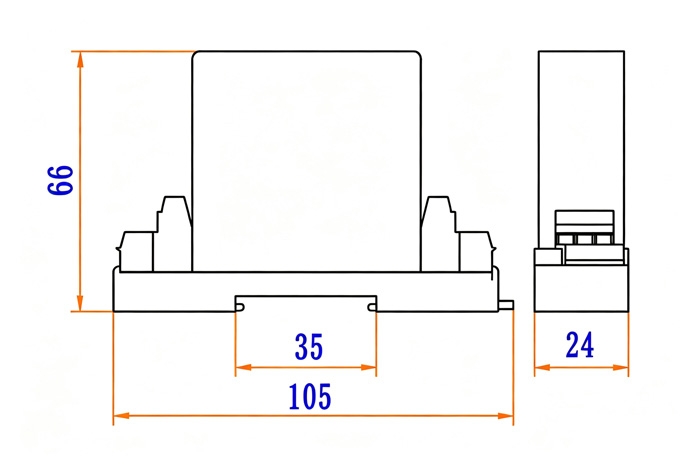

AC DC voltage transducer dimensions and mounting hole specifications

Wiring

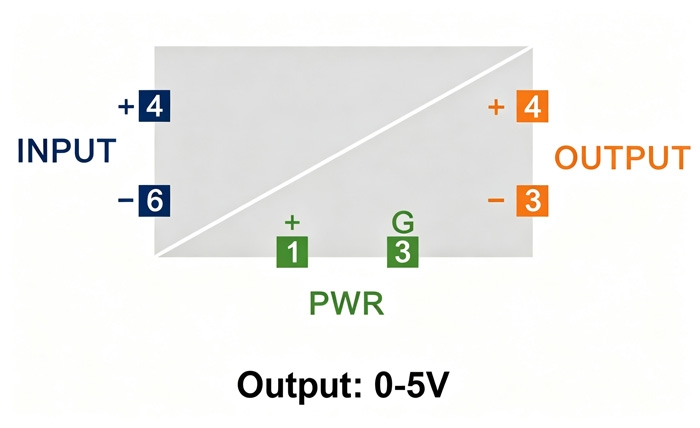

AC DC voltage transducer wiring diagram for 0-5V and 0-10V output Note: Voltage output variants (0-5V and 0-10V) require a DC 24V auxiliary power supply. DC 12V is not supported for voltage output models.

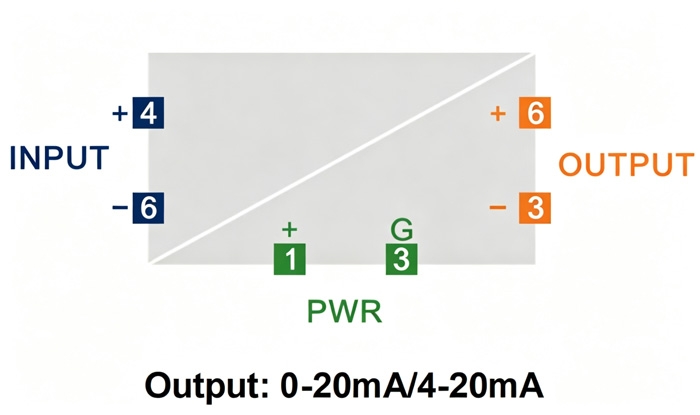

AC DC voltage transducer wiring diagram for 4-20mA current output Note: Current output variants (4-20mA and 0-20mA) support DC 12V or DC 24V auxiliary power supply. The maximum allowable load voltage drop is 6V.

Specs

Model Select

Model	SUCH-WBV122S01	SUCH-WBV124S01
Output Signal	DC 0-5V / 0-10V (DC 24V only)	DC 4-20mA / 0-20mA
Load Capacity	Load resistance ≥2kΩ	Load resistance ≤300Ω
Temperature Drift	250 ppm/°C	300 ppm/°C
Static Current	≤34mA	0-20mA ≤34mA 4-20mA ≤38mA
Operating Temperature	-25°C to +70°C

Model	SUCH-WBV125S01	SUCH-WBV127S01
Output Signal	True RMS DC 0-5V / 0-10V (DC 24V only)	True RMS DC 4-20mA / 0-20mA
Load Capacity	Load resistance ≥2kΩ	Load resistance ≤300Ω
Temperature Drift	250 ppm/°C	300 ppm/°C
Static Current	≤30mA	≤40mA
Operating Temperature	0 to +50°C
Input/Output Isolation Capacitance	6pF (below 1kHz)
CMRR	160dB (50Hz)

Universal Specs

Measuring Range	AC/DC 0-75mV ~ 0-500V
Short-time Overload	2× nominal input voltage, 1s duration, 10s interval, repeat 10 times
Linear Measurement Range	0% ~ 120% of measuring range
Frequency Range	DC and AC 20Hz-10kHz
Input Impedance	When Ux＞1V, Ri=Ux×10kΩ/V; when Ux≤1V, Ri≥1MΩ
Power Supply	DC 12V±10%, DC 24V±10%
Accuracy	0.5% F.S.
Response Time	≤250ms
Isolation Features	Input-to-output isolation; power supply and output share common terminal
Isolation Voltage	DC 1.5kV, 1 min
Storage Temperature	-25°C to +70°C
Protection Class	IP20
MTBF	>50,000 h
Housing Material	Fire-retardant ABS
Wiring	Terminal connection
Installation	DIN rail (NS35/7.5, NS35/15, EN50022) or screw (M3) fixation
Shipping Weight	1kg

Application

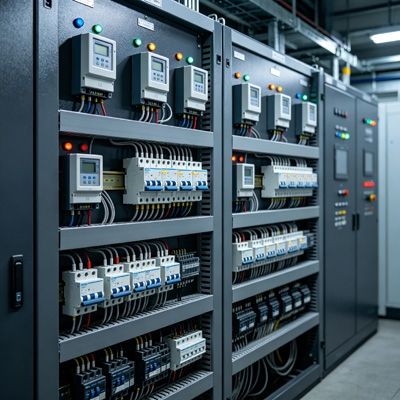

Power Distribution

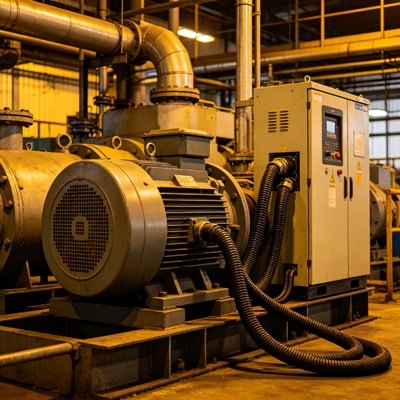

AC DC voltage transducer for VFD and motor voltage control

VFD & Motor Control

Energy Management

FAQ

Q1: Can an AC/DC voltage transducer measure both AC and DC input on the same unit? ❯

Yes. It accepts both AC and DC voltage inputs. The input type and range are specified at the time of order, from nine options between 0–75mV and 0–500V.

Q2: What is the difference between a standard and True RMS voltage transducer? ❯

The standard version outputs a signal based on average-value measurement. The True RMS version calculates the actual root mean square value, which gives accurate results when the input waveform contains harmonic distortion. True RMS is a separate order option.

Q3: Which output type should I select for a 4-20mA voltage transducer vs. a voltage output model? ❯

4-20mA and 0-20mA current outputs are less affected by signal loss over longer cable runs. 0-5V and 0-10V voltage outputs connect directly to standard PLC analog inputs, but require a DC 24V auxiliary supply. Current output variants accept both DC 12V and DC 24V.

1 review(s)

Write your own review Close

Review title: *

Review text: *

Rating:

1 2 3 4 5

From: Carl Davidson | Date: 7/20/2026 9:06 AM

this ac dc voltage transducer fits our control cabinet

picked up an ac dc voltage transducer for upgrading an electrical control panel. the compact size made installation easier, and it worked well with our existing PLC system. I spent some time checking the accuracy during the first few days, and the readings stayed within the expected range. overall, it has been a reliable component for voltage conversion tasks.
