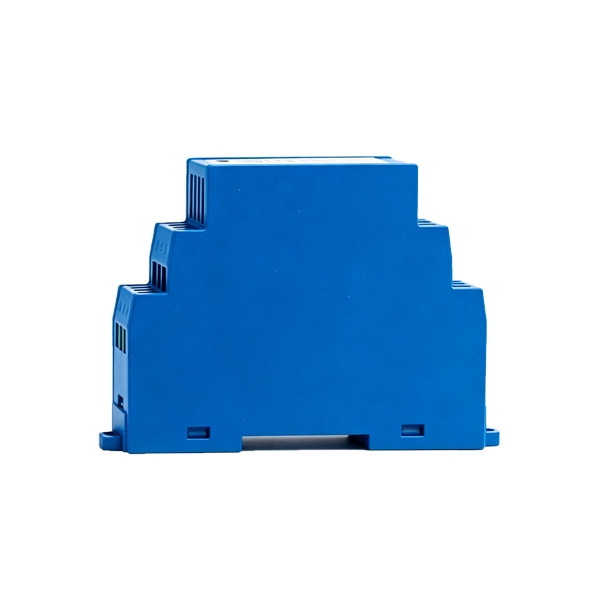

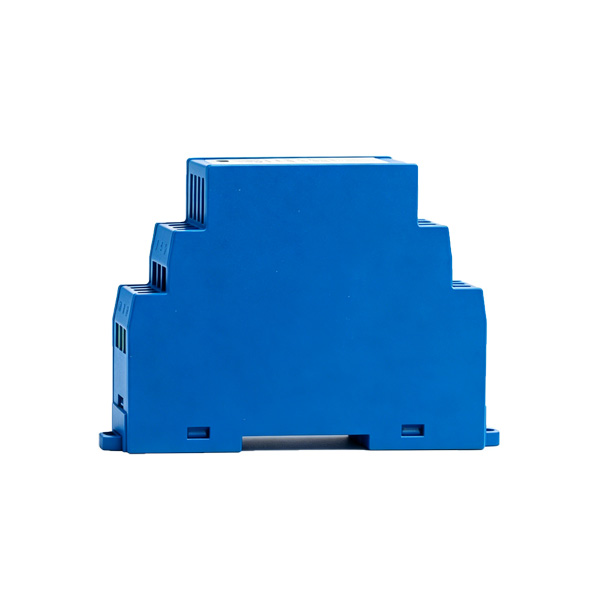

    Isolated DC Ripple Voltage Transducer, 10mV to 1000V

    1 review(s) | Add your review
    SKU: SUCH-VOS-RDC1000
    $141.96
    ● DC voltage measurement range 10mV to 1000V ● DC output signals 0–5V, 0–10V, 0–20mA, or 4–20mA ● Input/output or input/output/power supply isolation ● DC power supply 12V or 24V
    *
    *
    *
    *
    🚚 Free shipping
    πŸ•’ Delivery date: 6-12 days
    πŸ” 30-day Returns
    Overview

    An isolated DC ripple voltage transducer (also known as a DC voltage sensor) measures unidirectional ripple DC voltage and converts it into standard analog outputs while providing galvanic isolation between input, output, and power supply circuits for safe and reliable operation. The SUCH isolated DC voltage transducer supports a wide input range from 10mV to 1000V and outputs 0–5V, 0–10V, 0–20mA, or 4–20mA, enabling seamless integration with PLC, SCADA, and industrial control systems. It is widely used in DC power system monitoring, rectifier output verification, and battery ripple analysis across global industrial automation applications.

    Feature

    • DC 10mV to 1000V measurement range: Covers 14 selectable input ranges from low-level millivolt ripple signals up to high-voltage DC bus monitoring in a single unit.
    • 0–5V, 0–10V, 0–20mA, and 4–20mA output options: Compatible with most PLC, DAQ, and control system interfaces.
    • Input/output or 3-way isolation: Standard version isolates input from output; optional version extends isolation to the power supply. Isolation voltage rated at DC 2.5kV.
    • 0.2% F.S. accuracy: Stable measurements across the full input range with a temperature drift of 200Γ—10-6/Β°C.
    • DIN rail installation: Compatible with NS35/7.5, NS35/15, and EN50022 standards. Terminal block wiring for quick panel integration.
    • Industrial EMC protection: Surge immunity 2kV, ESD 6kV/8kV, and EFT burst 2kV.
    • Wide operating temperature: –25Β°C to +70Β°C, suitable for both indoor and industrial enclosure environments.
    • Durable housing: Fire-retardant ABS enclosure, IP20, MTBF over 50,000 hours.

    Dimension

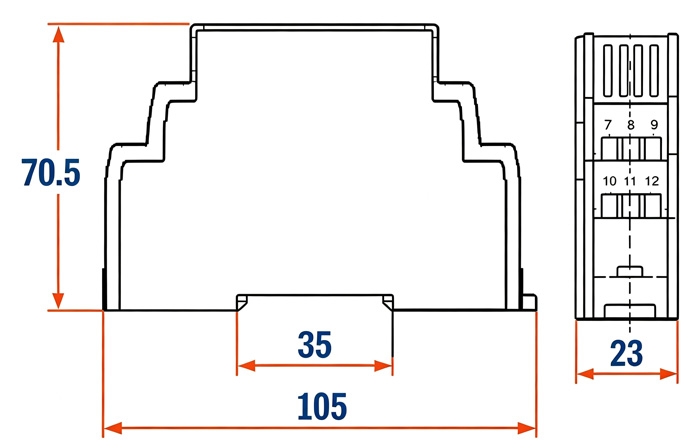

    Isolated DC ripple voltage transducer dimensions and mounting size

    Details

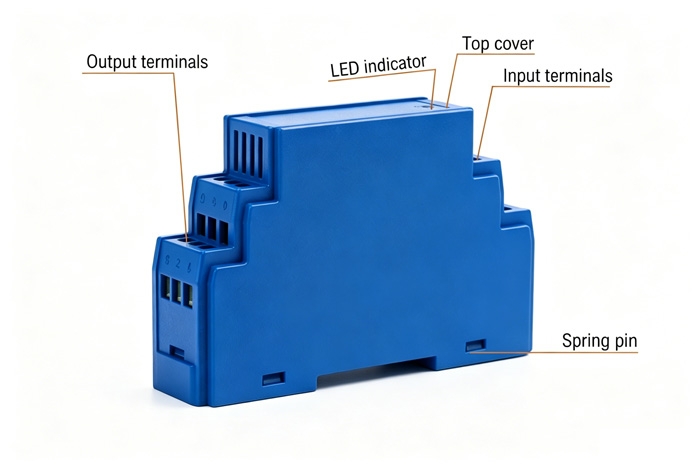

    Isolated DC ripple voltage transducer product details and structure

    Wiring

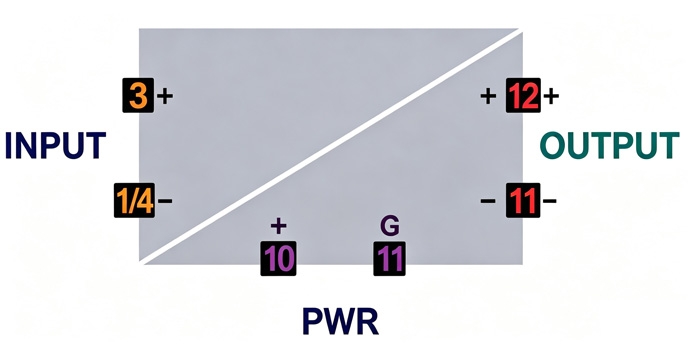

    DC ripple voltage transducer wiring diagram for input output isolationNote: For input/output isolation (U ≀ 600V): the output terminals provide the power supply. Suitable for standard DC voltage measurement applications.

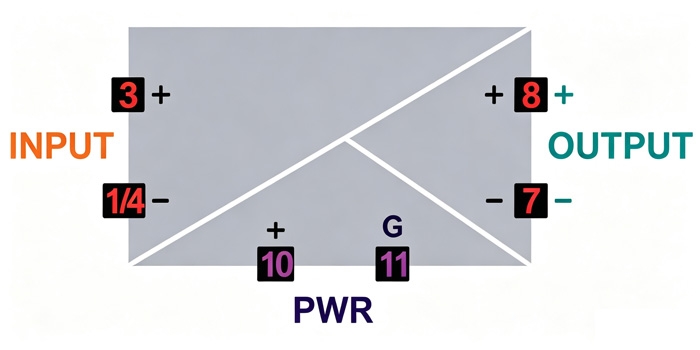

    DC ripple voltage transducer wiring diagram for 3-way isolationNote: For 3-way isolation between input, output, and power supply (U > 600V): recommended for high-voltage applications or where additional protection of the power supply circuit is required.

    Specs

    Model Select

    Model SUCH-WBV342U01-S SUCH-WBV342U05-S
    Output Signal DC 0–5V / 0–10V (24V only)
    Load Capacity 10mA
    Static Current ≀12mA ≀30mA
    Isolation Features 2-Way Isolation (Input / Output) 3-Way Isolation (Input / Output / Power)

    Β

    Model SUCH-WBV344U01-S SUCH-WBV344U05-S
    Output Signal DC 0–20mA / 4–20mA
    Load Capacity ≀300Ξ©
    Static Current 0–20mA ≀16mA / 4–20mA ≀20mA 0–20mA ≀29mA / 4–20mA ≀33mA
    Isolation Type 2-way isolation (Input / Output) 3-way isolation (Input / Output / Power)


    Universal Specs

    Measuring Range DC 0–10mV ~ 0–1000V
    Short-time Overload 2Γ— nominal input voltage, 1s duration, 10s interval, 10 cycles
    Linear Measurement Range 0% ~ 120% of measuring range
    Input Impedance When Ux＞1V, Ri=UxΓ—10kΞ©/V; when Ux≀1V, Riβ‰₯1MΞ©
    Power Supply DC 12V / 24V
    Accuracy 0.2% F.S.
    Response Time ≀150ms
    Temperature Drift 200 PPM/Β°C
    Isolation Voltage DC 2.5kV, 1mA, 1 min
    Operating Temperature -25 ~ +70℃
    Storage Temperature -25 ~ +70℃
    Protection Features Surge 2kV / ESD 6kV / EFT 2kV
    MTBF ＞50000h
    Housing Material Fire-retardant ABS
    Wiring Terminal connection
    Installation DIN rail (NS35/7.5, NS35/15, EN50022)
    Shipping Weight 1kg
    Application

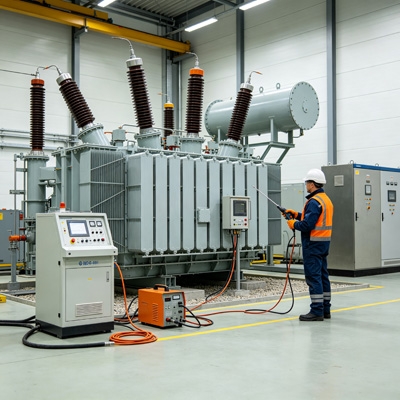

    DC ripple voltage transducer used in high voltage equipment testing

    High-Voltage Equipment Testing

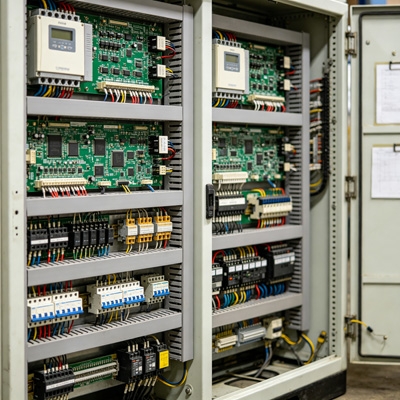

    DC ripple voltage transducer for rectifier and power supply monitoring

    Rectifier & Power Supply Monitoring

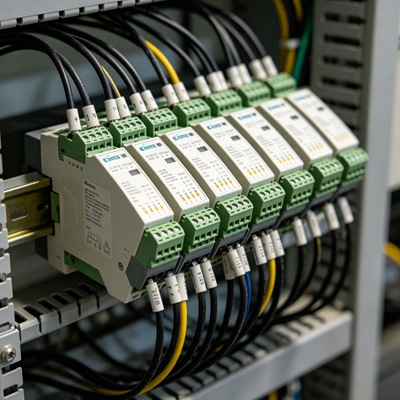

    DC ripple voltage transducer for isolated signal acquisition in power systems

    Isolated Signal Acquisition in Power Systems

    FAQ
     ❯

    The standard version isolates input from output, with the output terminals providing the power supply β€” suitable for most applications where input voltage is ≀600V. The 3-way isolation version extends isolation to the power supply circuit as well, recommended when input voltage exceeds 600V or when the power supply circuit requires additional protection.

     ❯

    Yes. With 14 selectable input ranges spanning DC 10mV to 1000V, a single unit covers both low-level ripple signal detection and high-voltage DC bus monitoring, removing the need for separate devices.

     ❯

    It depends on the input interface. The 0–5V and 0–10V voltage outputs require DC 24V power supply. The 0–20mA and 4–20mA current outputs work with both DC 12V and 24V, and are generally preferred for long-distance signal transmission as current signals are less susceptible to line interference.
