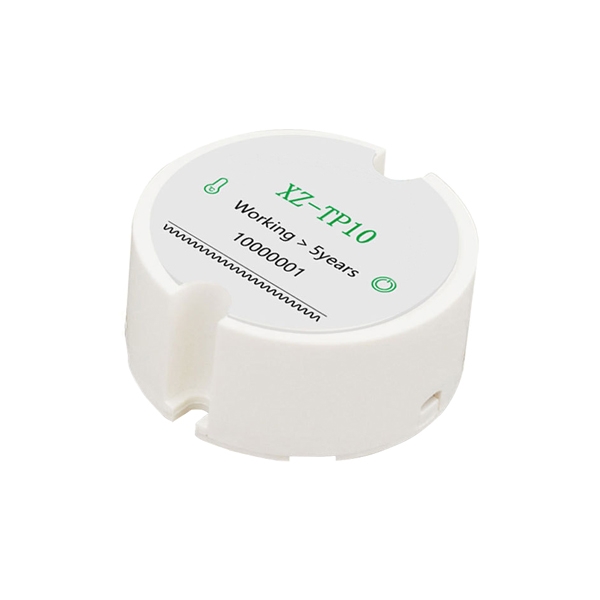

    Wireless Room Temperature Sensor, -40-80℃

    SKU: SUCH-TS-TP10
    $90.29
    ● Range: -40-80℃ ● Transmit Frequency: < 10dBm ● Transmission Range: > 500M (LOS) ● Data Collection Interval: Default 5 Minutes
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    The wireless room temperature sensor is designed for accurate and efficient temperature monitoring in a wide range of environments, with a measurement range of -40°C to 80°C. The SUCH sensor boasts an impressive transmission range of over 500 meters (Line of Sight), allowing for reliable communication even in larger spaces. With low power consumption, it ensures long-lasting performance. The sensor collects data at a default interval of 5 minutes, providing consistent temperature readings for monitoring and analysis. Its compact design makes it suitable for various application scenarios, from industrial to residential use.

    Feature

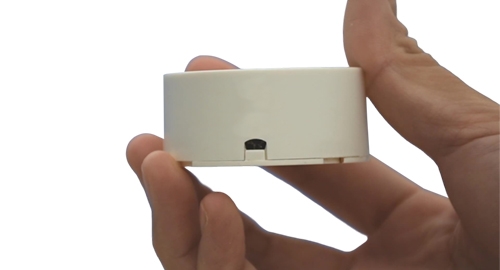

    Room temperature sensor detail

    • The temperature sensor features wireless transmission, eliminating the need for wiring, which saves time and effort while allowing for easy installation.
    • It has a compact size, making it suitable for a wide range of application scenarios.
    • The sensor offers high precision and low power consumption, and it can automatically adapt to gateways and repeaters.

    Note: Press the buttom as it is showed on the picture and move away after 5s, the LED will flicker. And the sensor switch triggered successfully.

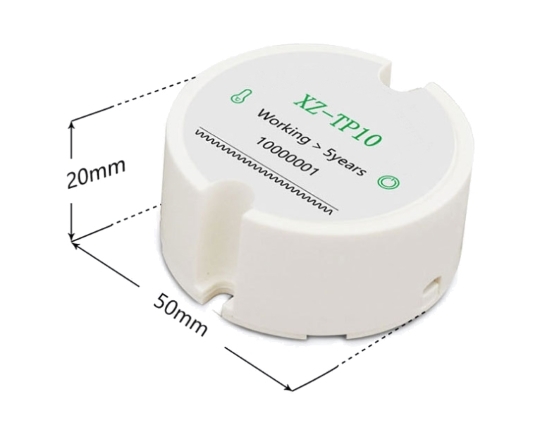

    Dimension (Unit:mm)

    Room temperature sensor dimension

    Specs
    General Specifications
    Transmit Frequency < 10dBm Sensitivity < -112dBm
    Transmit Current < 40mA Receive Current < 20mA
    Transmission Range > 500M (LOS) Average Power Consumption < 15uA
    Operating Temperature -40℃-80℃ Battery Life > 5 Years @ 1000mAh
    Power Supply 1pcs ER14250 3.6V Lithium Thionyl Chloride Battery (Replaceable)
    Operating Frequency 433mhz (Default), 868mhz / 915mhz (Customizable Frequency)
    Sensor Specifications
    Temperature Accuracy < ±0.5℃ (-10℃-85℃) & ±1℃ (< -10℃, > 85℃)
    Data Collection Interval Default 5 Minutes, User-Configurable from 1 to 60 Minutes
    Application
    Warehouse

    Warehouse

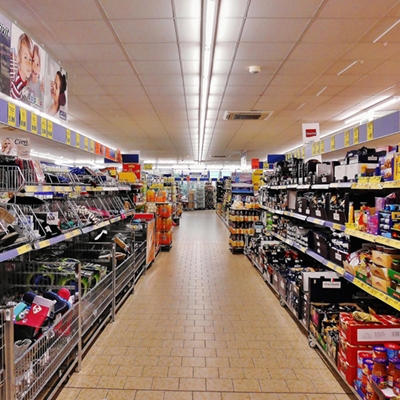

    Supermarket

    Supermarket

    Temp sensor for cold storage

    Cold Storage

    FAQ

    Wireless temperature sensors eliminate the need for complicated wiring, which makes installation faster, cleaner, and more cost-effective. They offer the flexibility to be placed anywhere within the wireless network range without the limitations of cables, making them ideal for large spaces, hard-to-reach areas, or environments that require frequent relocation of monitoring equipment.

    A compact design makes the sensor easy to install and unobtrusive, allowing it to blend seamlessly into various environments without taking up much space. This is particularly beneficial in areas with limited space or when multiple sensors need to be installed in a small or crowded area. The small size also enhances portability, allowing for easy relocation when necessary.

    The sensor is designed with low power consumption, allowing it to operate for extended periods without frequent battery replacements. The actual battery life will depend on usage and environmental factors, but the energy-efficient design ensures that it lasts longer than standard sensors.
