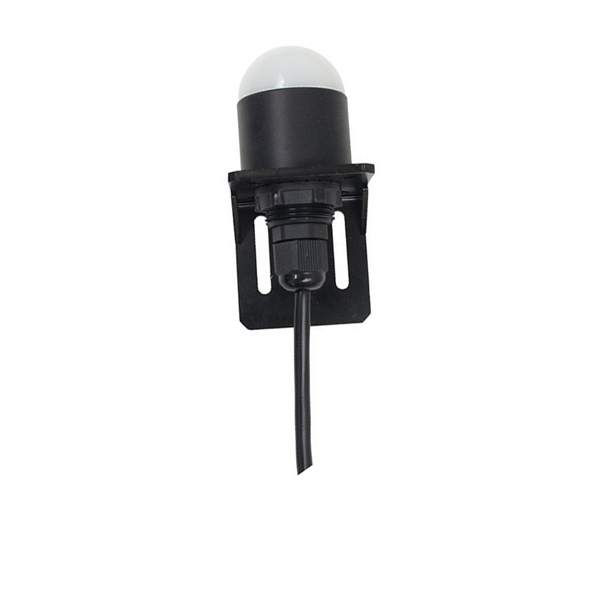

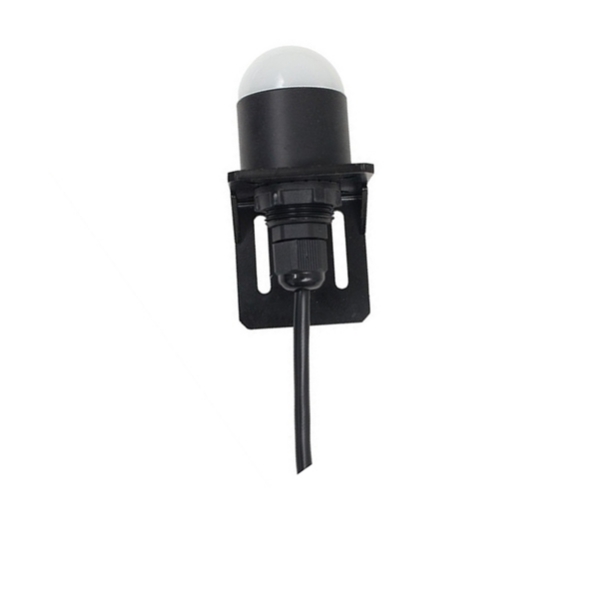

RS485 Light Sensor, Aluminum Alloy/Nylon Material

Name: RS485 Light Sensor, Aluminum Alloy/Nylon Material
Brand: Such.com
SKU: SUCH-LS-AA
Price: 85.99 USD
Availability: InStock
Rating: 5.0 (1 reviews)

1 review(s) | Add your review

SKU: SUCH-LS-AA

$85.99

● 0-65,535 lux measurement range ● RS485/DC 4-20 mA/DC 0-10V output interface ● Nylon/aluminum alloy housing material ● DC 5-24 V/DC 12-24V power supply

Material *
Output Signal *
Output Signal *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

The RS485 light sensor, aluminum alloy/nylon material is designed for accurate and stable illuminance measurement in industrial and commercial applications. Featuring a wide measurement range of 0-65,535 lux, it supports multiple output options including RS485, 4-20 mA, and 0-10 V, ensuring easy integration with PLCs, controllers, and monitoring systems. The light sensor is available with nylon or aluminum alloy housing, providing excellent durability, corrosion resistance, and long-term stability. A premium optical diffuser and industrial-grade sensing chipset ensure precise light detection with strong anti-interference performance, making the SUCH sensor suitable for lighting control, environmental monitoring, smart buildings, workshops, warehouses, and semi-outdoor installations.

Feature

High Protection and Accuracy: SUCH light sensor built with a robust housing to provide strong protection and stable performance while maintaining high measurement accuracy in long-term operation.
Durable Nylon / Aluminum Alloy Housing: Available with nylon or aluminum alloy enclosure options, offering excellent wear resistance, corrosion resistance, and mechanical strength for industrial environments.
Premium Optical Diffuser Dome: Uses a high-quality waterproof optical diffuser with good light transmission, ensuring accurate and consistent illuminance measurement.
Industrial-Grade Imported Chipset: Equipped with an industrial-grade imported digital illuminance sensing chip, delivering strong anti-interference capability and stable signal output.
Stable RS485 Communication: Supports RS485 interface for reliable long-distance data transmission, suitable for PLCs, controllers, and monitoring systems.
Accurate and Reliable Detection: Designed for precise detection of ambient light changes with good linearity and repeatability.
Industrial Application Ready: Suitable for lighting control, environmental monitoring, smart buildings, workshops, warehouses, and outdoor or semi-outdoor installations.

Dimension

RS485 light sensor size

RS485 light sensor installtion size

Detail

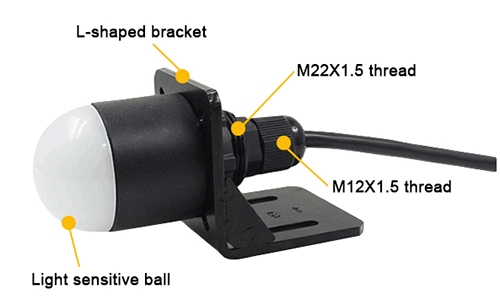

RS485 light sensor detail

Specs

Measurement Range	0-65,535 lux
Illuminance Accuracy	±7%
Illuminance Test Accuracy	±5%
Spectral Range	380-730 nm
Temperature Coefficient	±0.5 / °C
Output Interface	RS485 / DC 4-20mA / DC 0-10V
Total Power Consumption	< 2 W
Power Supply	DC 5-24V / DC 12-24V
Baud Rate	9600 bps
Housing Material	Nylon/Aluminum Alloy
Operating Temperature & Humidity	−30 to +65 °C, 0-100% RH
Storage Temperature & Humidity	−30 to +65 °C, 0-100% RH

RS485 Light Sensor User Manual.PDF

Application

Agricultural Greenhouse

Environmental Monitoring

Fruit Tree Cultivation

FAQ

Q1: What is the difference between aluminum alloy and nylon housing? ❯

Aluminum alloy housing offers higher mechanical strength, better heat dissipation, and improved resistance to harsh industrial environments. Nylon housing is lightweight, cost-effective, and provides good electrical insulation and corrosion resistance, making it suitable for general indoor and light industrial applications.

Q2: Which housing material should I choose for outdoor or harsh environments? ❯

For outdoor, high-temperature, or heavy-duty industrial environments, aluminum alloy housing is recommended due to its superior durability, impact resistance, and weather tolerance.

Q3: Does the housing material affect measurement accuracy? ❯

No. Both aluminum alloy and nylon versions use the same optical sensing components and chipset, so measurement accuracy and performance are the same. The difference is mainly in mechanical protection and environmental durability.

1 review(s)

Write your own review Close

Review title: *

Review text: *

Rating:

1 2 3 4 5

From: Matthew | Date: 6/5/2026 7:08 AM

Decent rs485 light sensor for courtyard lighting logs

Needed a weather-resistant rs485 light sensor to log outdoor ambient lux levels. Went with the rugged nylon casing version because the sea air out here rusts cheap metals in a month. Cable entry gland is sealed pretty tight against driving rain. No data drops or weird spikes since I powered it up.
