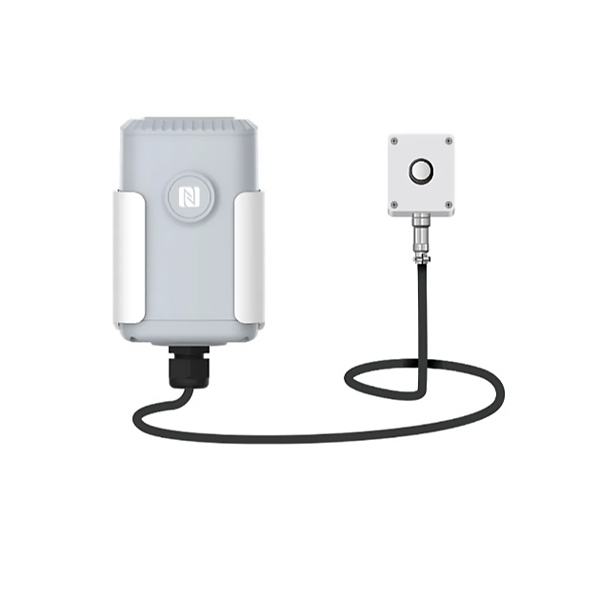

Smart Light Sensor, 0-100000 lux

SKU: SUCH-LS-SL

$1,495.99

● 0-100,000 lux measurement range ● Pole mounting, wall mounting, DIN rail mounting ● IP67 ingress protection ● CE, FCC, TELEC, ICASA, RoHS approvals

Installation *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Smart light sensor is a high-performance illuminance monitoring device designed for precise detection of ambient light changes across a wide measurement range. Featuring industrial-grade optical sensing components and a durable PC and aluminum alloy housing, it delivers reliable performance in harsh outdoor and industrial environments with IP67 protection. The digital light sensor supports easy configuration via NFC without disassembly and offers ultra-low power consumption, enabling long-term operation with minimal maintenance. With flexible installation options including pole mounting, wall mounting, and DIN rail mounting, it is well suited for smart lighting systems, environmental monitoring, and infrastructure applications. Smart light sensor is compliant with CE, FCC, TELEC, ICASA, and RoHS standards, ensuring global deployment readiness.

Feature

Smart light sensor feature

High Sensitivity and Wide Range: Accurately detects ambient light variations across a wide measurement range from 0 to 100,000 lux, ensuring precise illuminance data.
Precision Light Detection: SUCH light sensor automatically adapts measurement ranges based on different lighting conditions to deliver reliable and accurate light intensity information.
Industrial-Grade Optical Sensing Components: Equipped with high-performance optical sensing elements, offering resistance to high temperatures and water for stable operation in harsh environments.
Durable Housing Design: Features a PC main enclosure combined with an aluminum alloy sensor structure, providing long-term reliability and environmental protection.
Easy Configuration: Supports simple configuration without disassembly, enabling quick setup via NFC for efficient deployment.
Ultra-Low Power Consumption: Powered by a built-in 19,000 mAh lithium battery, delivering long-lasting operation with a service life of up to 10 years.
Multiple Installation Options: Supports wall mounting, pole mounting, and DIN rail installation for flexible and convenient system integration.

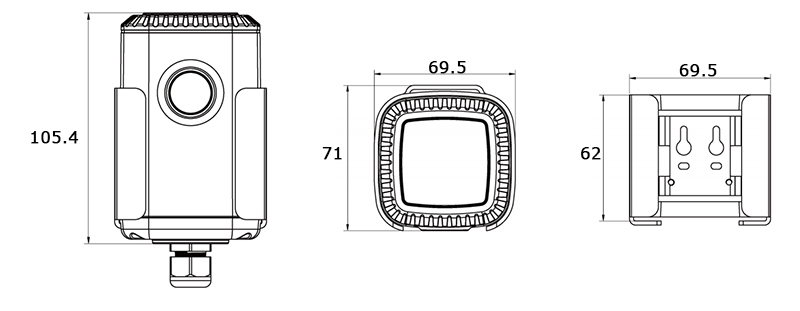

Size

Smart light sensor size

Specs

Wireless Transmission
Technology	LoRaWAN®
Antenna	Internal Antenna
Frequency	CN470 / IN865 / RU864 / EU868 / US915 / AU915 / KR920 / AS923
Tx Power	16 dBm (EU868) / 20 dBm (US915) / 19 dBm (CN470)
Sensitivity	-137 dBm @ 300 bps
Device Mode	OTAA / ABP, Class A
Measurement
Measurement Range	0-100,000 lux
Accuracy	±3%
Resolution	1 lux
Others
LED Indicator	1 × Internal LED Indicator
Button	1 × Internal Power / Reset Button
USB Interface	1 × USB Type-C (Internal, for configuration and console)
Software
Power On / Off	NFC, Internal Power Button
Configuration	Mobile App (via NFC), PC Software (via USB Type-C), Downlink
Advanced Features	Data Storage (1,000 entries), Data Retransmission, Data Retrievability, Threshold Alarm
Physical Characteristics
Cable Length	3 m
Power Supply	1 × 19,000 mAh ER34615 Li-SOCL₂ Battery
Battery Life*	Up to 10 years (10-minute interval, 25 °C)
Operating Temperature	Transceiver: −30 °C to +70 °C
Operating Temperature	Light Sensor: −30 °C to +60 °C
Relative Humidity	0% to 100% RH (non-condensing)
Ingress Protection	Transceiver: IP67
Ingress Protection	Light Sensor: IP65
Housing & Color	Transceiver: ABS + PC, Grey
Housing & Color	Light Sensor: Aluminum Alloy, White
Weight	Transceiver: 333 g (with battery & mounting bracket)
Weight	Light Sensor: 280 g (with cable)
Dimensions	Transceiver: 105.4 × 71 × 69.5 mm (4.1 × 2.8 × 2.7 in)
Dimensions	Light Sensor: 64 × 58 × 34 mm (2.5 × 2.3 × 1.3 in)
Installation Method	Pole Mounting, Wall Mounting, DIN Rail Mounting (optional)
Approvals
Regulatory	CE, FCC, TELEC, ICASA
Environmental	RoHS

Application

Environmental Monitoring Stations

Smart Greenhouse Systems

Industrial Automation

FAQ

Q1: Can the sensor distinguish between daylight and artificial light? ❯

The sensor measures illuminance based on light intensity rather than light source type. While it does not identify the source, its wide range and high sensitivity enable reliable control decisions under both daylight and artificial lighting conditions.

Q2: How often does the sensor report data? ❯

The reporting interval can be configured according to application requirements. Longer intervals help maximize battery life, while shorter intervals provide more frequent updates.

Q3: Can the sensor be used in smart street lighting projects? ❯

Yes. It is well suited for smart street and area lighting systems, providing reliable ambient light data to support automatic lighting control and energy savings.
