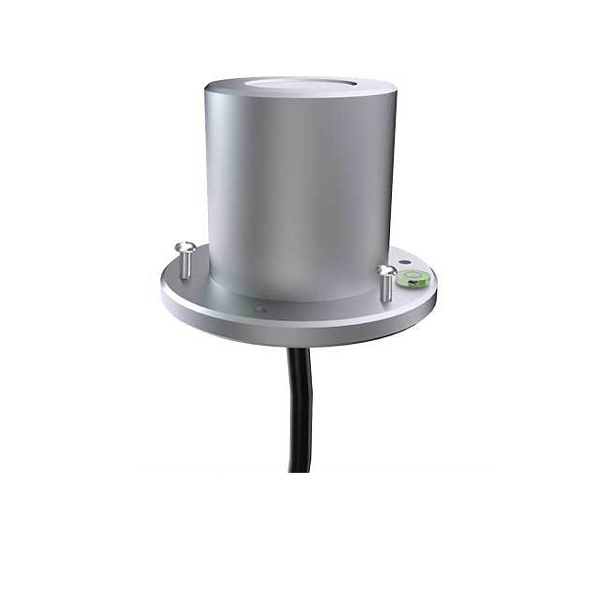

Sunshine Duration Sensor, 0-24h

Name: Sunshine Duration Sensor, 0-24h
Brand: Such.com
SKU: SUCH-RS-SDS
Price: 159.66 USD
Availability: InStock
Rating: 5.0 (1 reviews)

1 review(s) | Add your review

SKU: SUCH-RS-SDS

$159.66

● 0-24 h measuring range with 0.1 h resolution ● ±2% accuracy with stable digital correction ● Multiple outputs 4–20mA/RS485/0-2V/0-5V/0-10V ● Calibrated under real sunlight for reliable measurement

Output Signal *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Sunshine duration sensor continuously measures daily sunshine hours by recording radiation above a preset threshold. With a 0-24 h range, 0.1 h resolution, and ±2% accuracy, it provides stable outdoor monitoring with low power consumption. Multiple output options, including voltage, 4–20 mA, RS485 Modbus-RTU, and SDI-12, make it suitable for meteorology, agriculture, forestry, environmental monitoring, and research applications.

Feature

Continuous Measurement: Automatically records daily sunshine duration above the preset radiation threshold.
High Accuracy: Sunshine duration sensor uses precision light-sensing components with digital linear correction for stable results.
Real-Sunlight Calibration: Minimizes interference from artificial light and changing environmental conditions.
Reliable Outdoor Use: No moving parts, low power consumption, and strong resistance to vibration.
Easy Installation: Compact, lightweight design for flexible mounting and convenient operation.

Dimension (Unit: mm)

PAR sensor size

Detail

Silicon solar radiation sensor detail

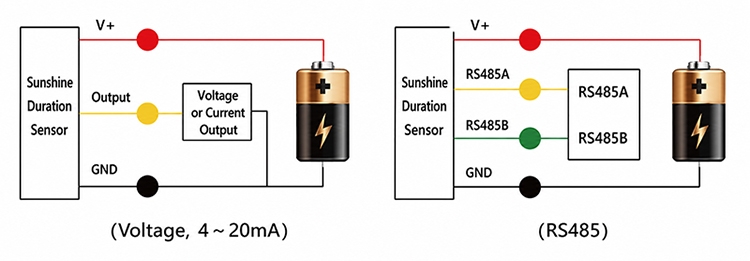

Wiring

Sunshine duration sensor wiring

Specs

Measurement Parameter	Sunshine Duration
Measurement Unit	h (hour)
Measurement Range	0-24 h
Resolution	0.1 h
Accuracy	±2%
Temperature Coefficient	≤ ±0.08%/°C
Nonlinearity	≤ ±2%
Annual Drift	≤ ±2%
Output Signal (Analog)	0-2 V/0-5 V/0-10 V/4-20 mA (optional)
Output Signal (RS485)	RS485, Modbus-RTU protocol (default address: 01)
Output Signal (SDI-12)	SDI-12 serial data communication protocol
Power Supply (0-2 V, RS485, SDI-12)	5-24 V DC
Power Supply (0-5 V, 0-10 V, 4-20 mA)	12-24 V DC
Power Consumption	1.8 mW
Stabilization Time	1 s after power-on
Response Time	< 1 s
Storage Temperature	−40°C to +80°C
Storage Humidity	< 100% RH
Cable Specification	2 m, 3-wire for analog output; 2 m, 4-wire for RS485; optional cable length

Sunshine Duration Sensor User Manual.PDF

Application

Meteorological Measurement

Energy Radiation Studies

Environmental & Ecological Research

FAQ

Q1: What is the difference between a sunshine duration sensor and a pyranometer?

A sunshine duration sensor records the length of time that bright sunshine occurs. A pyranometer measures global solar irradiance, including both direct and diffuse radiation, usually in W/m².

Q2: Does daylight always count as sunshine duration?

No. Weak sunlight around sunrise, sunset or under heavy cloud may be visible but remain below the sunshine threshold, so it is not counted as bright sunshine.

Q3: Does the sensor count sunshine on partly cloudy days?

Yes. It accumulates each period when sunlight exceeds the threshold. When clouds temporarily block the direct solar beam, the accumulation pauses and resumes when sufficient sunlight returns.
