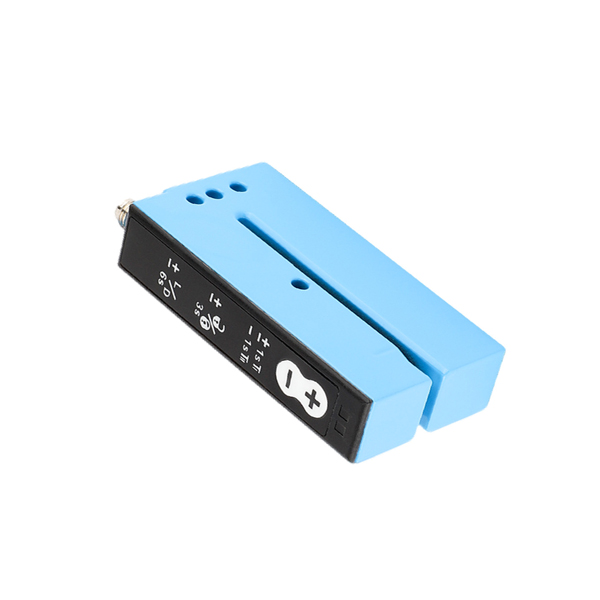

Ultrasonic Fork Sensor for Label Detection, NPN + PNP, NO/NC

Name: Ultrasonic Fork Sensor for Label Detection, NPN + PNP, NO/NC
Brand: Such.com
SKU: SUCH-US-UFN3
Price: 189.08 USD
Availability: InStock

0 review(s) | Add your review

SKU: SUCH-US-UFN3

$189.08

● Response time 250 µs ● Switching frequency 1.5 kHz ● Output PNP + NPN, NO/NC selectable ● Protection IP65, aluminum housing

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

This ultrasonic fork sensor operates on 10–30 V DC with selectable PNP+NPN outputs and NO/NC functions. It offers a 250 µs response time, 1.5 kHz switching frequency, 100 mA output current, short-circuit protection, and interference suppression. Rated IP65 with an aluminum housing and M8 4-pin plug, it is ideal for high-speed label, edge, and film detection.

Feature

Flexible Output Logic: PNP + NPN, NO/NC selectable, 100 mA output current.
Ultra-Fast Switching: 250 µs response time and 1.5 kHz switching frequency.
Wide Low-Power Supply: 10–30 V DC, 40 mA consumption, <10% residual ripple.
Robust Output Protection: Short-circuit protection on output Q, interference pulse suppression.
Compact Industrial Housing: IP65, aluminum housing, M8×1 4-pin plug, 95 g.

Dimension

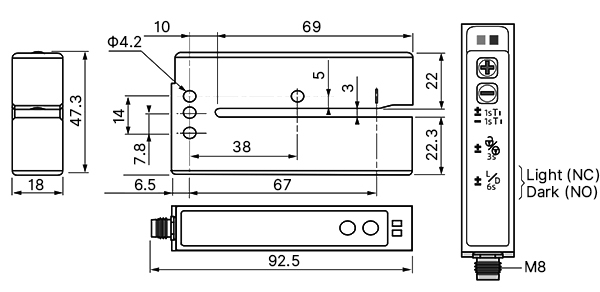

Technical dimensions and schematic diagram of an ultrasonic fork sensor, showing 92.5mm length, 18mm width, M8 connector, and 5mm slot width.

Specs

Operating Voltage	10 to 30 V DC
Output Type	PNP + NPN
Output Function	NO/NC
Response Time	250 µs
Switching Frequency	1.5 kHz
Output Current	100 mA
Current Consumption	40 mA
Residual Ripple	<10 %
Short-Circuit Protection	Output Q
Interference Suppression	Interference pulse suppression
Initialization Time	100 ms
Ambient Temperature	+5 °C to +55 °C
Storage Temperature	-20 °C to +70 °C
Degree Of Protection	IP65
Connection Type	M8×1 plug, 4-pin
Housing Material	Metal, aluminum
Weight	95 g

Application

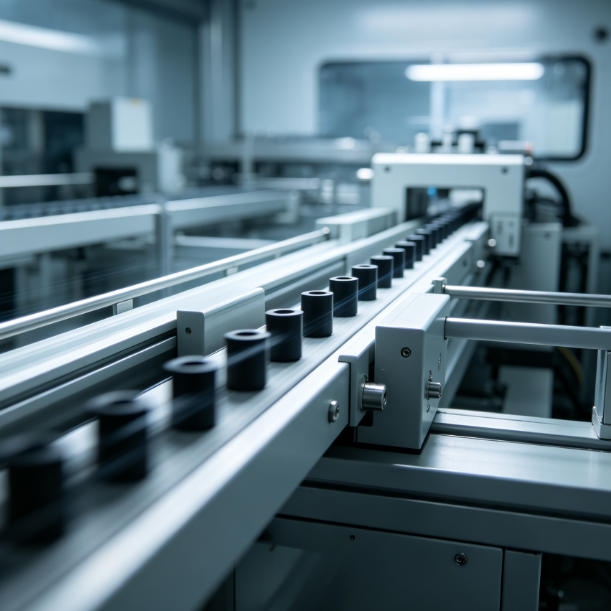

High-Speed Counting

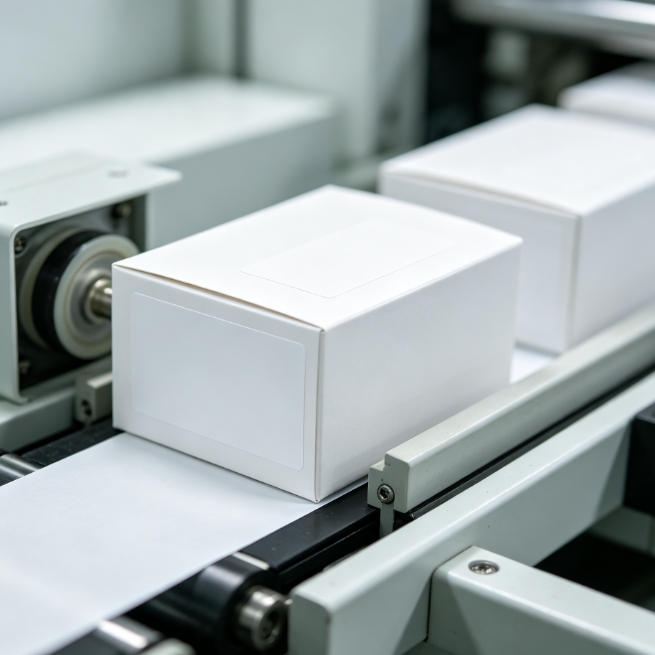

Ultrasonic fork sensor ensuring accurate label presence detection on high-speed packaging machinery.

Label Detection

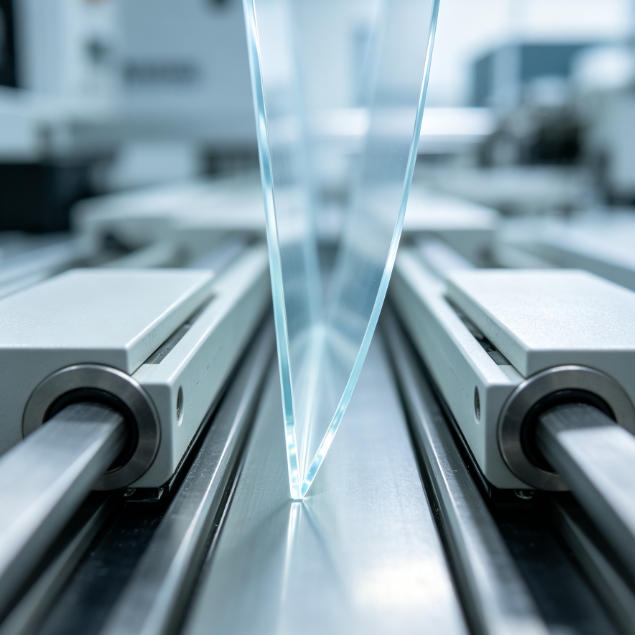

Ultrasonic fork sensor detecting transparent films and plastic sheets, unaffected by material transparency or reflectivity.

Transparent Film Detection

FAQ

Q1: How fast does this ultrasonic fork sensor respond? ❯

A: This ultrasonic fork sensor has a response time of 250 µs and a switching frequency of 1.5 kHz, making it suitable for high‑speed tasks such as edge counting, small‑part detection, and fast position feedback.

Q2: Does this ultrasonic fork sensor support both PNP and NPN outputs? ❯

A: Yes. This ultrasonic fork sensor supports PNP + NPN output types, with NO/NC selectable function. The output current is 100 mA, and output Q is short‑circuit protected.

Q3: Which supply voltage does this ultrasonic fork sensor require? ❯

A: This ultrasonic fork sensor operates on 10 to 30 V DC, with a current consumption of 40 mA and residual ripple <10 %. Initialization time is 100 ms, so allow at least 0.1 s after power‑up before reading valid output.
