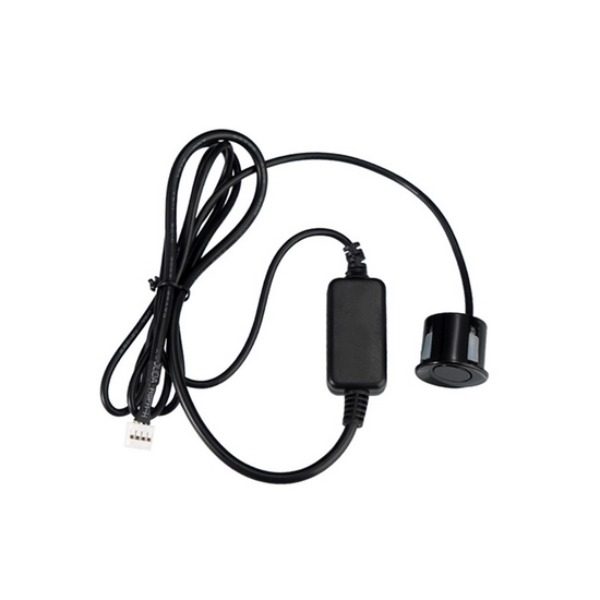

This ultrasonic parking sensor delivers PWM/UART/TTL outputs for seamless integration with reverse assist systems. Featuring a 28–450cm range, 28cm blind zone, and wide 60° beam angle, this ultrasonic parking sensor covers broad areas with ±(1+S×0.3%)cm accuracy. Built‑in temperature compensation and 3.3–12V DC supply with ≤10μA standby ensure stable, low‑power operation from -15–60°C. Weighing just 30g, this ultrasonic parking sensor mounts easily into bumpers or grilles for reliable obstacle alerts in automated parking and blind‑spot detection.
A: The sensor detects objects from 28 cm up to 450 cm. The blind zone is exactly 28 cm – keep targets beyond that for stable readings.
A: Accuracy is ±(1 + 5×0.3%) cm. For example, at 100 cm, it’s ±2.5 cm. Built‑in temperature compensation keeps performance consistent across -15 °C to +60 °C.
A: Response time is selectable – ≤9 ms (fast), 100 to 500 ms (normal), or ≤50 ms (custom). The operating cycle is controlled at 100 ms, giving you flexibility for dynamic or static detection.
