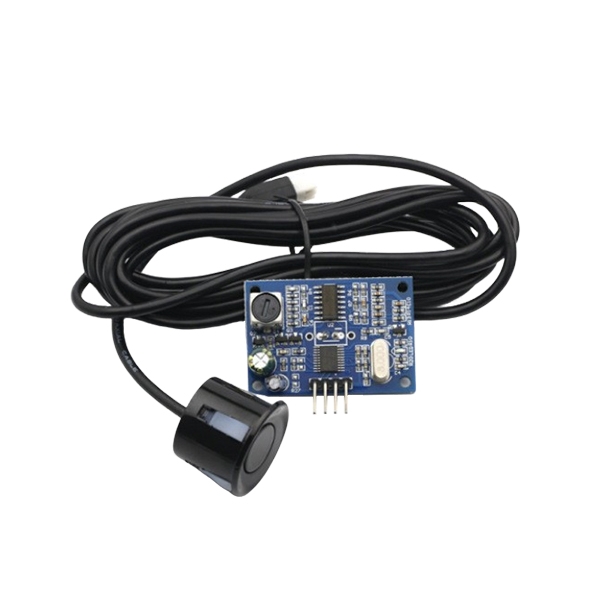

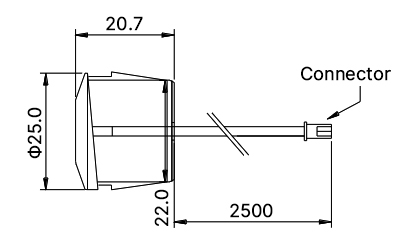

This compact ultrasonic sensor module operates on DC 5 V with 5 mA quiescent and 30 mA operating current. It offers a 5 m measuring distance, 25 cm blind zone, approx. 0.5 cm resolution, <50° beam angle, and 40 kHz frequency. With -10 to 70°C operating temperature and 41×28.5 mm dimensions, it suits embedded distance measurement and obstacle detection.
A: This ultrasonic sensor module operates on DC 5 V, with a quiescent current of 5 mA and a total operating current of 30 mA. That makes it suitable for low‑power embedded designs, but you should still ensure your 5 V rail can supply at least 30 mA per module during active measurement.
A: This ultrasonic sensor module provides a resolution of approximately 0.5 cm, with a beam angle of <50° and an ultrasonic frequency of 40 kHz. Note that resolution is not the same as absolute accuracy—no absolute accuracy figure is given in the datasheet, so do not treat 0.5 cm as guaranteed measurement error. The <50° beam angle provides a relatively wide detection cone for general obstacle sensing.
A: This ultrasonic sensor module has an operating temperature range of -10 to 70 °C and a storage temperature range of -20 to 80 °C. These figures cover many indoor and sheltered outdoor applications, but the datasheet does not specify an IP rating, so it should not be treated as waterproof or dust‑proof without additional enclosure protection.
