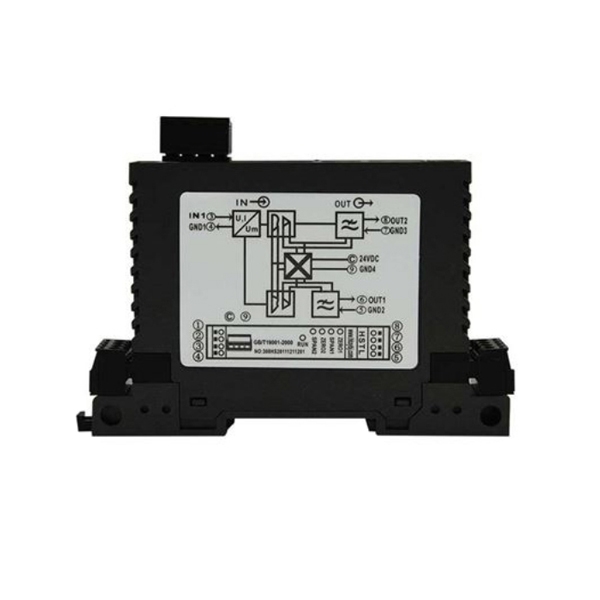

    Analog Signal Isolator, Loop/External Powered, 4-20mA

    0 review(s) | Add your review
    SKU: SUCH-SINIR-502E
    $122.13
    ● Loop or external 24V DIP switch ● Plug-in design, no rewiring ● Only 18mm wide, DIN rail ● ≤0.2% annual stability
    *
    *
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    This analog signal isolator supports loop powered or external 24V supply. In loop mode, it acts as a loop powered isolator; external power enables passive isolator 4‑20mA. Accepts 4‑20mA, 0‑20mA, 0‑5V, 0‑10V inputs/outputs. Options: 1‑in‑1‑out, 1‑in‑2‑out, 2‑in‑2‑out. Accuracy 0.1% FS, drift ≤0.2%/yr. Load: current 350Ω, voltage ≥10kΩ. Features 1500VAC isolation, pluggable PCB, DIN rail (96×18×122mm). Ideal for PLC/DCS.

    Feature

    • Power source: selectable loop or external power, functioning as a passive 4-20mA isolator to eliminate extra supplies and simplify wiring.
    • Accuracy & stability: 0.1% FS accuracy and ≤0.2%/year stability ensure drift-free transmission, critical for precise process control.
    • Modular design: pluggable PCB power board with separable isolating module permits exchange without rewiring, simplifying maintenance.
    • Signal compatibility: wide compatibility (4-20/0-20 mA and 0-5/0-10 V) lets one isolator cover multiple types, reducing spare parts.

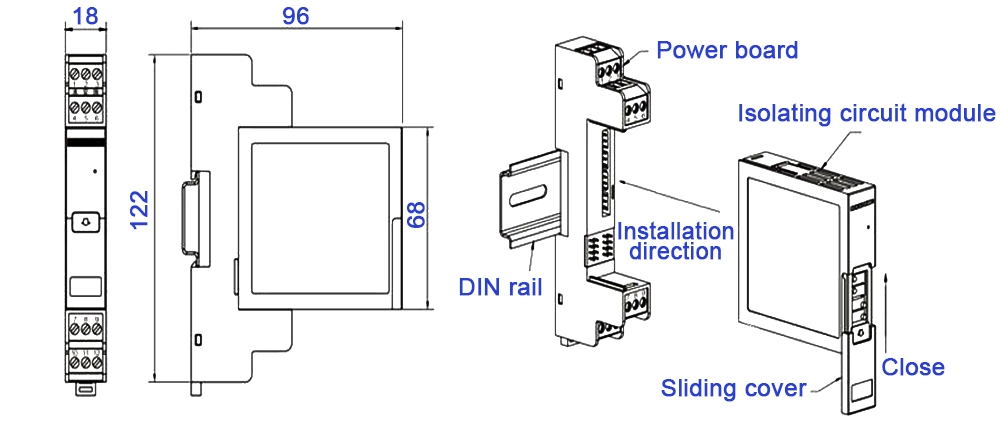

    Dimension (Unit: mm)

    35mm DIN rail mounting – pluggable PCB power board with separable isolating circuit module

    Wiring Diagram

    Wiring diagram – loop powered (switch up) or external powered (switch down, DC 24V±10%)



    Specs
    Output Signal Type 4-20mA
    0-20mA
    0-5V
    0-10V
    Output Signal Type (same range as input, but selectable independently) 4-20mA
    0-5V
    0-10V
    Number of Input & Output Channels 1 input & 1 output
    1 input & 2 outputs
    2 inputs & 2 outputs
    Power Supply Mode of Input Signal Loop powered (switch up) or External powered (switch down)
    Output Load (depends on selected Output Signal) Current output: 0-350Ω
    Voltage output: ≥10kΩ
    Accuracy 0.1% FS
    Stability ≤0.2% / year
    Power Supply DC 24V ±10%
    Structure Pluggable PCB power board and separable isolating circuit module
    Installation 35mm DIN rail
    Dimension 96 × 18 × 122 mm
    Shipping Weight 0.5 kg
    Application

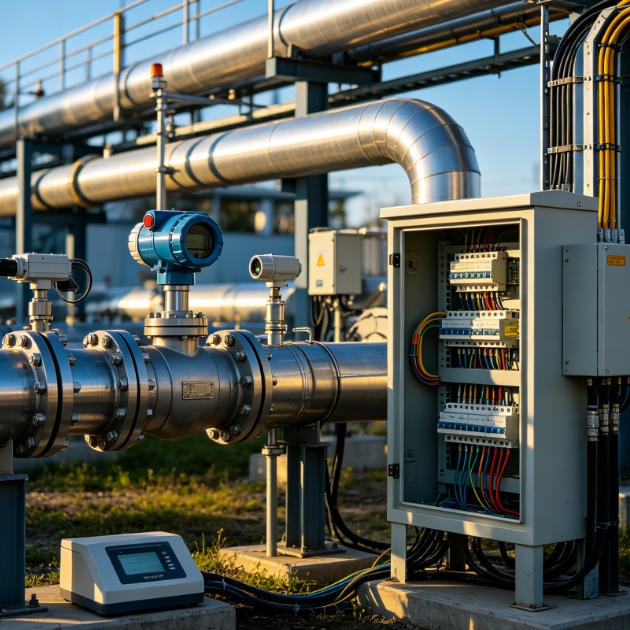

    Oil and gas pipeline SCADA signal isolator field deployment

    Oil & Gas Pipeline

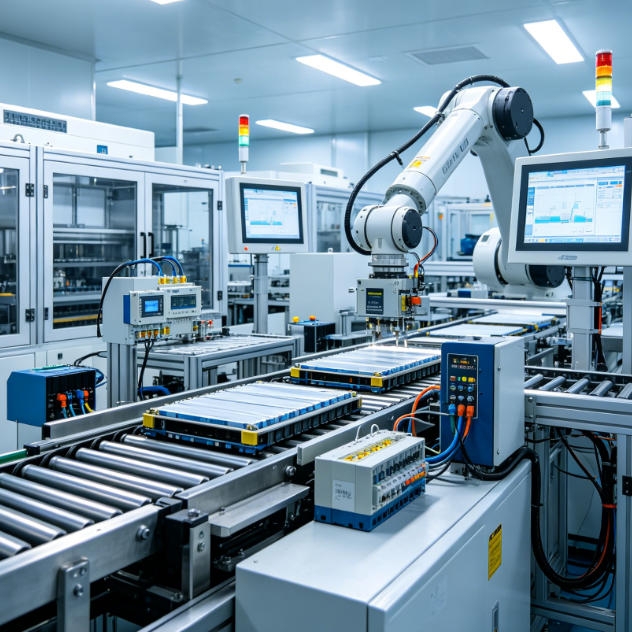

    Lithium battery production line signal isolator installation

    Lithium Battery Production

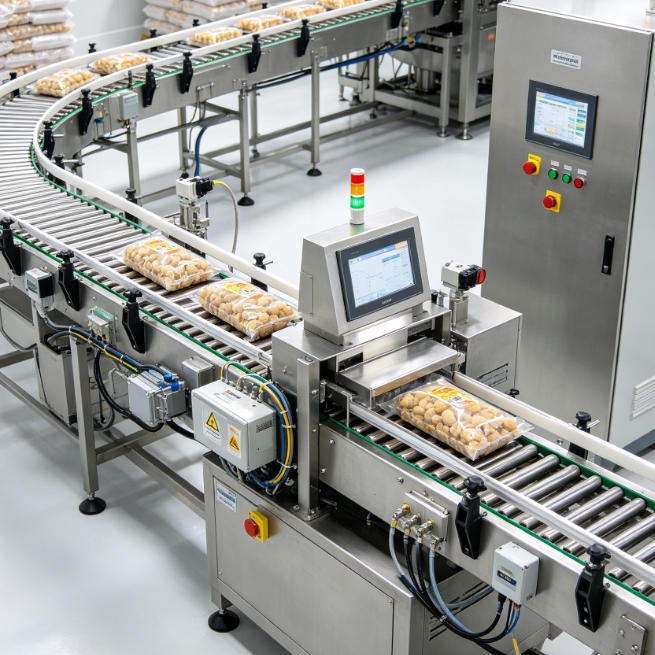

    Food packaging and logistics sorting signal isolator setup

    Food Packaging & Sorting

    FAQ
    ❯

    A: Loop-powered mode: the input signal (4-20mA) powers the isolator – no extra wiring. Externally powered mode: requires a separate DC 24V supply. Switch via onboard DIP switch: up for loop-powered, down for externally powered. Adapts to different field wiring conditions.

    ❯

    A: Signal types: 4-20mA, 0-20mA, 0-5V, 0-10V. Three channel configs: 1-in-1-out, 1-in-2-out, 2-in-2-out. Choose as needed.

    ❯

    A: Current output load capacity: 0–350Ω. Voltage output load requirement: ≥10kΩ. Compatible with most PLC analog input modules and indicators. For driving multiple devices or long-distance transmission, ensure total load does not exceed 350Ω.
