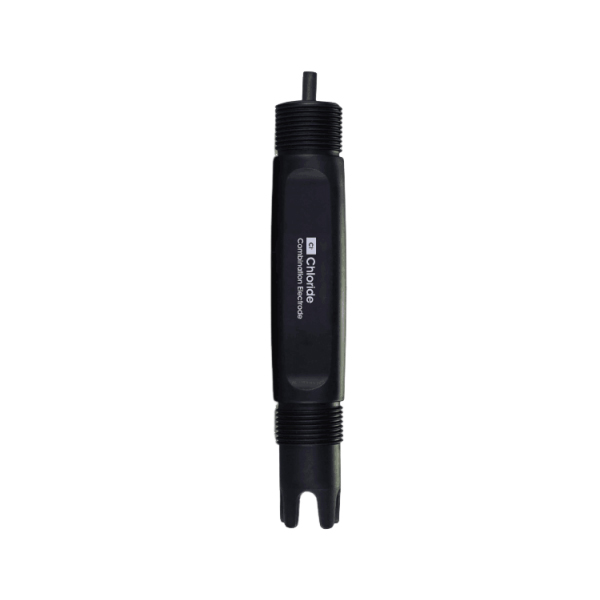

Water Quality Chloride Ion Sensor, 1.8~35500 ppm

Professional water quality chloride ion sensors for sale, featuring a detection range of 1.8 to 35500 ppm with 0.01 ppm resolution, enabling rapid capture of subtle water quality changes. The water quality sensor supports RS485 (MODBUS-RTU) communication for seamless integration into various monitoring systems. Automatic temperature compensation and a stable electrode structure ensure reliable long-term measurements, suitable for tap water, river water, and industrial sites.

Feature

• The wide-range and highly accurate SUCH chloride ion sensor is suitable for water quality monitoring in various complex media.
• Operating within a voltage range of 9–27 VDC and consuming only approximately 0.5W, the sensor features 2500 Vrms electrical isolation strength, ensuring long-term reliable operation.
• The water quality sensor incorporates a dual liquid junction reference electrode + ceramic liquid junction structure, offering strong contamination resistance.
• Calibration requires only dilution of a chlorine standard solution.
• The housing is constructed from PPS material and supports 3/4-inch front/rear threaded mounting, ensuring a robust structure.

Dimension (unit: mm)

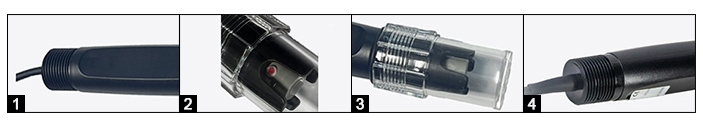

Detail

1. High-precision Ion-Selective Electrode: Requires no reagents, produces no pollution, is more environmentally friendly, and delivers more stable and accurate data.
2. Top and Bottom G3/4 Pipe Threads: Facilitates installation and further reduces user installation costs.
3. Supported Output Method: RS485 signal output.
4. Cable: The chloride ion-selective electrode utilizes premium low-noise cable, with a standard 5m cable length.

Wiring Diagram
