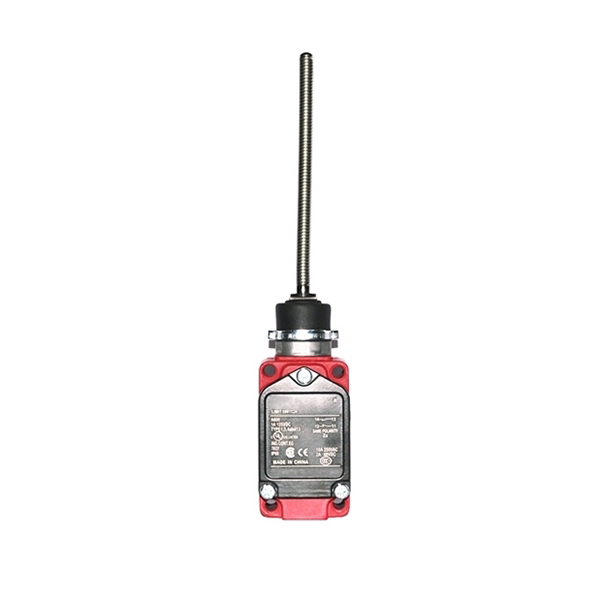

    Picture of High Temperature Coil Spring Limit Switch, 1NO 1NC, 5A Picture of High Temperature Coil Spring Limit Switch, 1NO 1NC, 5A Picture of High Temperature Coil Spring Limit Switch, 1NO 1NC, 5A Picture of High Temperature Coil Spring Limit Switch, 1NO 1NC, 5A Picture of High Temperature Coil Spring Limit Switch, 1NO 1NC, 5A Picture of High Temperature Coil Spring Limit Switch, 1NO 1NC, 5A

    High Temperature Coil Spring Limit Switch, 1NO 1NC, 5A

    0 review(s) | Add your review
    SKU: SUCH-LMS-XWKG
    $148.83
    ● Rated voltage 220VAC ● Rated current 5A ● Top diameter of coil spring Φ6.5mm/Φ1.2mm ● Temperature -10~+350℃
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    High temperature coil spring limit switch has an automatic reset function and is available with spring top diameters of 6.5 mm or 1.2 mm. SUCH coil spring limit switch adopts a fully enclosed 1NO + 1NC contact design for reliable switching performance. The standard rated specification is 5A/220VAC, and other voltages such as AC 120V, AC 380V, DC 12V, and DC 48V can be customized. The switch is designed to operate in extreme environments with temperatures up to 350℃ (622℉) and can function reliably in high-humidity conditions with a tolerance of ≤95% RH.

    Feature

    • Suitable for use in high-temperature environments and provides reliable performance.
    • The coil spring limit switch has automatic reset function.
    • The fully enclosed contact structure maintains stable and durable performance even in high humidity environments.

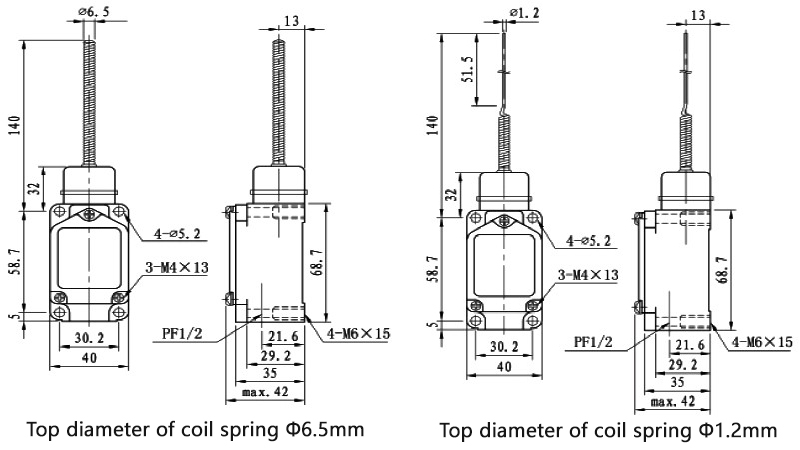

    Dimension (Unit: mm)

    Coil spring limit switch dimension

    Specs
    Model SUCH-XWKG SUCH-XWKH
    Weight 258g
    Top Diameter of Coil Spring * Φ6.5mm Φ1.2mm
    Rated Voltage 220VAC (Customizable rated voltage is shown in the reference table below.)
    Rated Current 5A (Customizable rated current is shown in the reference table below.)
    Contact Type 1NO+1NC (NC pin: 1 & 2, NO pin: 3 & 4)
    Operating Speed 1mm/s~2m/s
    Operating Frequency Machinery: 120 times/minute
    Electric: 30 times/minute
    Contact Resistance ＜15MΩ, initial stage
    Insulation Resistance ＞100MΩ (＜500VDC)
    Withstand Voltage Between no-connection terminals: 1000VAC, 50/60Hz lasts 1 minute
    Between the terminal and the contact: 2000VAC, 50/60Hz lasts 1 minute
    Between terminal and no-load current metal: 2200VAC, 50/60Hz lasts 1 minute
    Vibration Misoperation endurance: 10~55Hz, 1.5mm, double-amplitude
    Impact Mechanical endurance: ＞1000m/s2 (＞100G)
    Misoperation endurance: ＞300m/s2 (＞30G)
    Shell Material Cast aluminum alloy
    Temperature -10~+350℃ (14~622℉)
    Humidity ＜95%RH
    Working Life Machinery: ＞15million times
    Electric: ＞0.5million times
    Protection Class IP66


    Reference table for customizable rated voltage and rated current

    Rated voltage Rated current (A)
    Non-inductive load Inductive load
    Resistive load Lamp load Inductive load Motor load
    NC NO NC NO NC NO NC NO
    125VAC 10 3 1.5 10 5 2
    250VAC 5 2 1 5 3 1
    480VAC 3 1.5 0.8 3 1.5 0.8
    600VAC 1 1 0.5 1.5 1 0.5
    8VDC 10 6 3 10 6
    14VDC 10 6 3 10 6
    30VDC 6 4 3 6 4
    125VDC 0.8 0.2 0.2 0.8 0.2
    250VDC 0.4 0.1 0.1 0.4 0.1

    Note:

    1. Power factor of inductive load is above 0.4 (AC). The time constant is below 7ms (DC).
    2. The inrush current of lamp load is 10 times that of steady state current, and the inrush current of motor load is 6 times that of steady state current.
    Application
    Conveying system

    Conveying System

    Textile industry

    Textile Industry

    Rail transportation

    Rail Transportation

    FAQ
    ❯

    A limit switch operates when a mechanical actuator is pressed or moved by an object, causing the internal contacts to open or close and send a signal to the control system.

    ❯

    Limit switches are widely used in industrial machinery, automation equipment, elevators, conveyor systems, and safety control applications.

    ❯

    When selecting a limit switch, factors such as operating environment, actuator type, mounting method, and application requirements should be considered.
