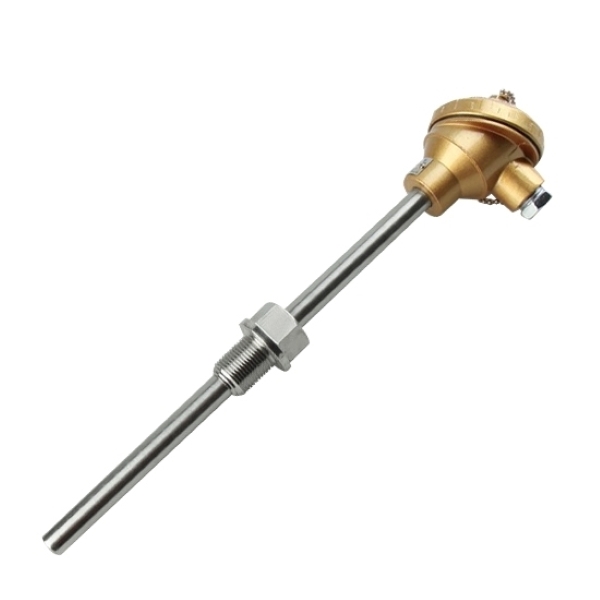

Explosion Proof RTD Sensor, PT100

SKU: SUCH-RTD-WZP240

$139.69

● Pt100 probe with -200～+500℃ range ● Two-wire or three-wire configuration ● Fast 2s thermal response, high shock resistance ● Waterproof, dustproof, and explosion-proof design

Line Type *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

The explosion-proof resistance temperature detector features a temperature range of -200 to +500℃ and a rapid 2-second thermal response. Constructed from 304 stainless steel, it offers excellent corrosion resistance. This sensor is suitable for a wide range of applications, including power generation, medical equipment, aquaculture, petrochemicals, sewage treatment, and industrial testing.

Feature

Multiple wiring options: Available in both two-wire and three-wire configurations, ensuring clear line distinction and stable measurement performance.
Durable stainless steel construction: Made from 304 stainless steel for superior corrosion resistance and extended service life.
High mechanical strength: The explosion-proof RTD sensor offers excellent thermal conductivity and shock resistance, with a polished, waterproof, and dustproof surface for reliable operation.

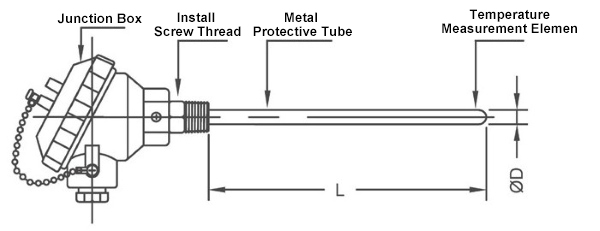

Dimension (Unit:mm)

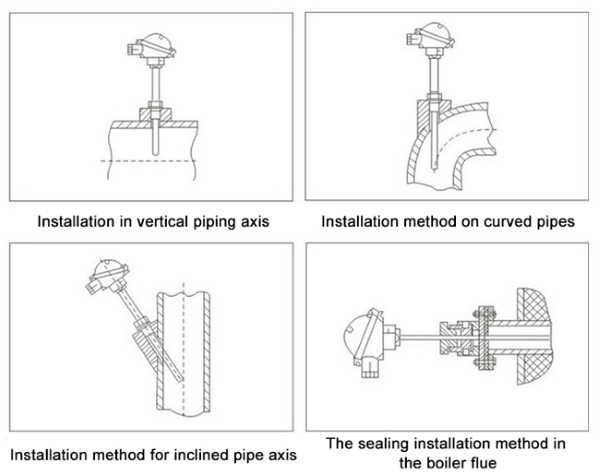

Installation

Explosion proof RTD sensor installation

Specs

Model	SUCH-RTD-WZP240
Temperature Range	-200~+500℃
Measurement Accuracy	±(0.15+0.002∣t∣)
Type of Probe	Pt100
Line	2 wire/3 wire
Thread Specification	27*2 regular thread (please contact us if you need other specifications)
Product Diameter	16mm (please contact us if you need other lengths)
Tube Material	304 stainless steel
Thermal Response Time	2s

Note: The measured absolute value of temperature is t.

Application

Medical Devices

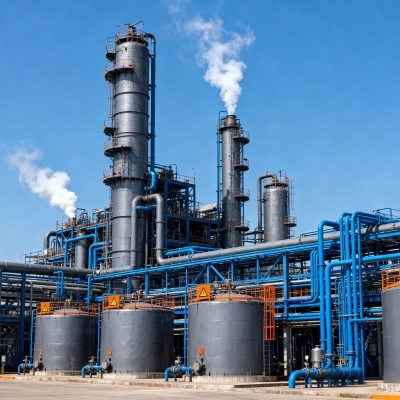

Oil and Chemical Industry

Power Industry

FAQ

Q1: What is an explosion-proof RTD sensor? ❯

An explosion-proof RTD sensor is a temperature detector designed to safely operate in hazardous areas containing flammable gases, vapors, or dust. Its robust housing prevents any internal explosion from igniting the external atmosphere.

Q2: Where are explosion-proof RTD sensors used? ❯

They are commonly used in oil refineries, petrochemical plants, gas storage facilities, and other industrial sites classified as hazardous zones.

Q3: How is maintenance performed safely? ❯

Before opening or servicing an explosion-proof RTD, power must be disconnected and the area verified as non-hazardous to prevent ignition risk.
