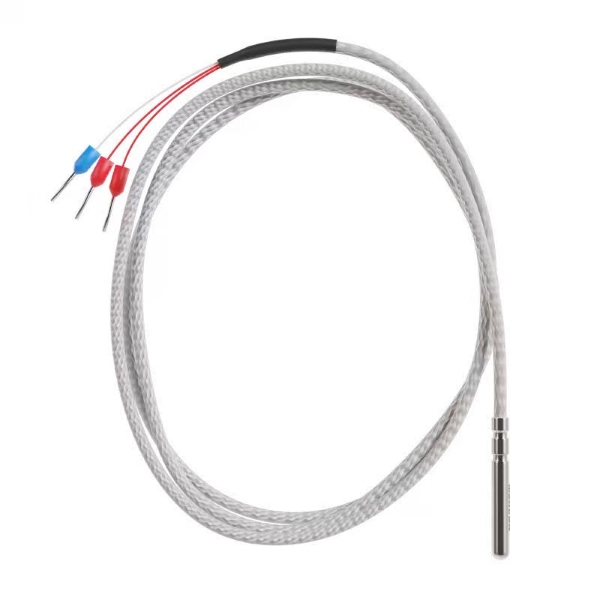

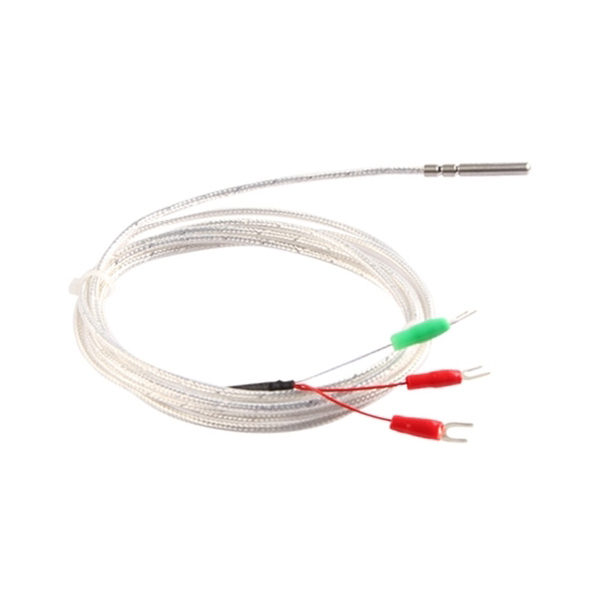

Three Wire RTD Sensor Probe

0 review(s) | Add your review

SKU: SUCH-RTD-PB3W

$74.68

● Sensor Type: 3-wire Pt100 RTD ● Cable: PTFE shielded wires for effective interference protection ● Measurement Range: -50~+200°C (-58~+392°F)

Model *
Cable Length *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Pt100 RTD sensor probes are available in four sizes, making them suitable for a range of temperature measurement applications. The 3-wire Pt100 probes are commonly used with temperature controllers, signal isolators, and paperless recorders to build a complete temperature monitoring system.

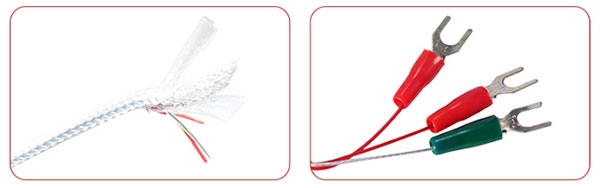

Feature

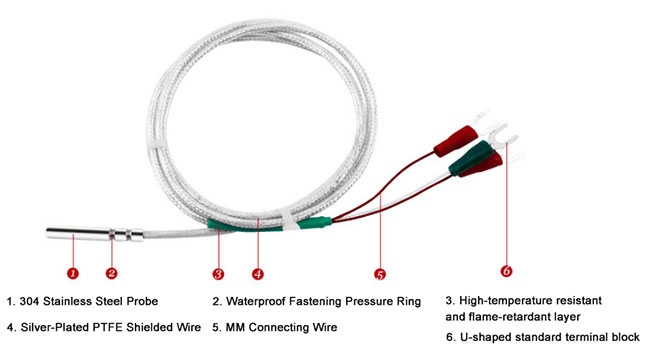

Using high-precision imported JUMO chip from Germany for accurate and fast measurement.
Premium 304 stainless steel probe for high temperature and corrosion resistance.
High-quality PTFE silver-plated shielded cable for corrosion resistance and anti-interference.

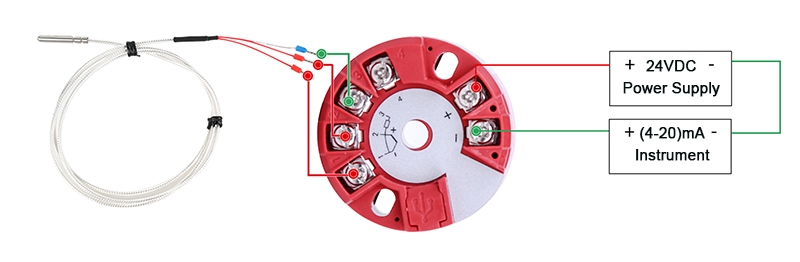

Wiring Diagram with Temp Transmitter Module

Wiring diagram with temp transmitter module

Specs

Model *	SUCH-RTD-WZP-1	SUCH-RTD-WZP-2	SUCH-RTD-WZP-3	SUCH-RTD-WZP-4
Probe material	Stainless steel	Brass	Stainless steel	Stainless steel
Probe dimension	Length: 30mm Diameter: 4mm	Length: 25mm Diameter: 8mm	Length: 10mm Maximum width: 8mm Hole diameter: 4mm	Length: 50mm Diameter: 6mm Thread: M20*1.5mm


Cable material	PTFE corrosion-resistant and silver-plated wire
Cable length *	1m, 2m, 3m, 4m, 5m, customizable
Type of probe	Pt100
Measuring range	-50~+200℃ (-58~+392℉)
Temperature coefficient	TCR=3850ppm/k
Accuracy	Class A: ±(0.15+0.002\|T\|), T is the actual measurement temperature.
Stability	R0 drift≤0.04% (500℃/932℉, after 1000 hours)
Anti-vibration	≥40g acceleration (10~2000Hz)
Insulation resistance	＞100MΩ (20℃/68℉), ＞2MΩ (500℃/932℉)
Natural coefficient	0.4K/mW (0℃/32℉)
Shipping weight	0.5kg
Application	Oven, water tank, laboratory, various equipment needing temperature measurement	Temperature measurement on the solid surface and end face of motor or boiler	Motor or bearing surface temperature measurement	Pipelines, containers, various equipment needing temperature measurement

Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

Application

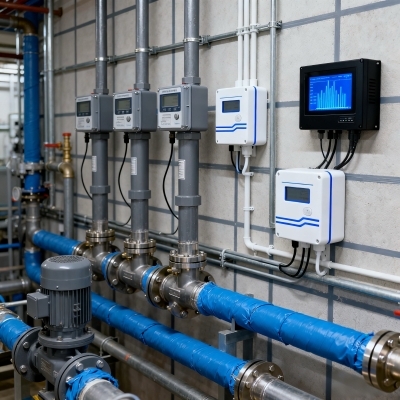

Heat Meter

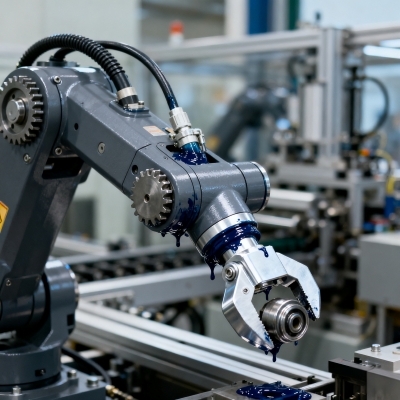

Automatic Equipment

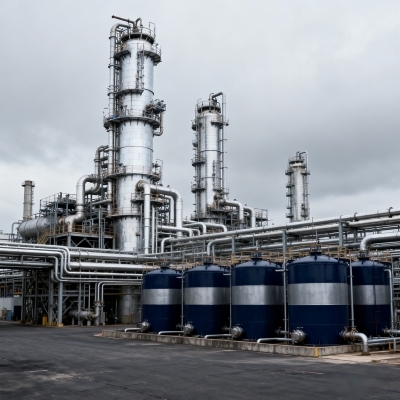

Chemical Factory

FAQ

Q1: What is an RTD sensor probe? ❯

An RTD sensor probe is a temperature sensing device that measures temperature by detecting changes in electrical resistance of a platinum element, typically Pt100 or Pt1000. It offers high accuracy, stability, and repeatability, making it suitable for industrial, laboratory, and process temperature measurement applications.

Q2: What is the difference between Pt100 and Pt1000? ❯

The number indicates the resistance (in ohms) at 0°C. Pt100 has 100 Ω and Pt1000 has 1000 Ω. Pt1000 offers higher sensitivity and is often preferred for applications requiring longer cable runs.

Q3: How should the RTD probe be installed? ❯

The probe should have firm contact with the measurement surface or medium. Use mounting fittings or thermal grease for better thermal conduction and stability.
