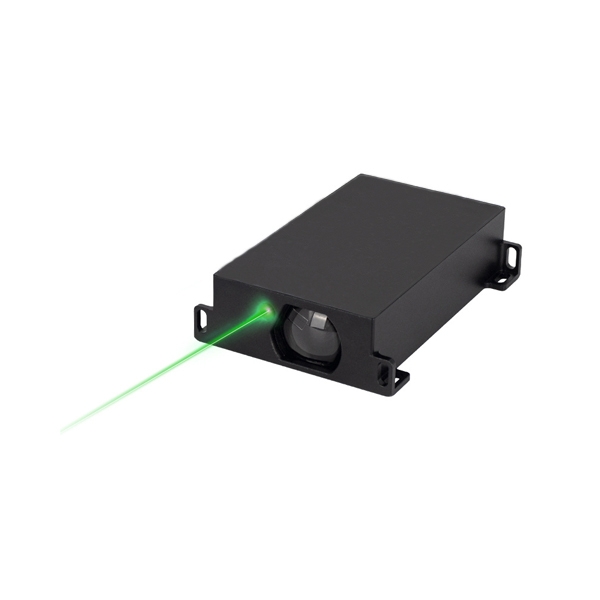

High Precision Laser Distance Sensor, 0.03–100/150/200m

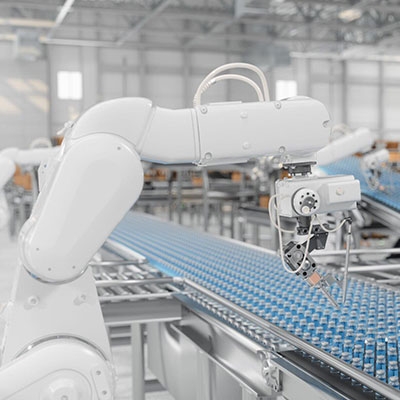

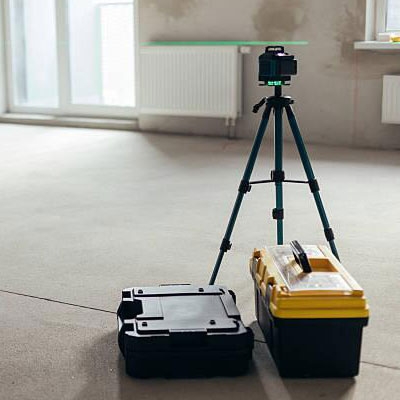

High-precision laser rangefinders are specifically designed for long-range measurements, with a max range of 200m, a measurement frequency of 3Hz, a measurement time of 0.05–4 s, and a wavelength of 610–690 nm. The laser distance sensor supports interfaces, such as RS485 and TTL, feature Class II laser safety and have low power consumption, making them suitable for system integrators and automation engineers in applications such as equipment positioning, warehouse distance measurement, and industrial monitoring.

Feature

• Multi-range distance measurement from 0.03 to 100/150/200 m, covering applications from short to long distances, suitable for a wide range of industrial measurement and automation scenarios.
• This high-precision laser distance sensor features a 610–690 nm laser wavelength and a Class II safety rating, with a laser power of <1 mW, balancing measurement performance with operational safety.
• With a measurement frequency of up to 3 Hz and an adjustable response time of 0.05–4 seconds, it meets the demands of various applications, including real-time measurement and dynamic monitoring.
• SUCH laser distance sensors support detection across a reflectivity range of 0.02–1.0. The green light is visible outdoors, offering strong adaptability to various material surfaces, as well as excellent anti-interference capabilities and stability.

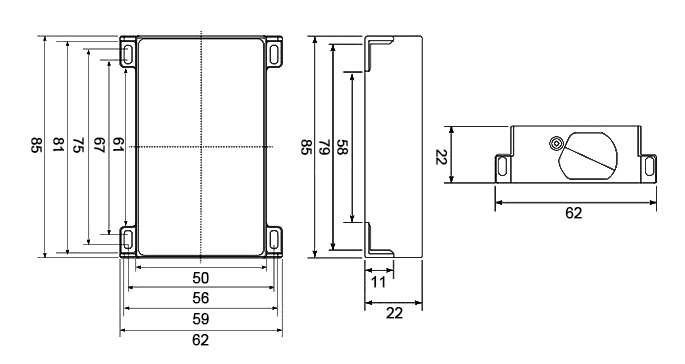

Dimension (unit: mm)

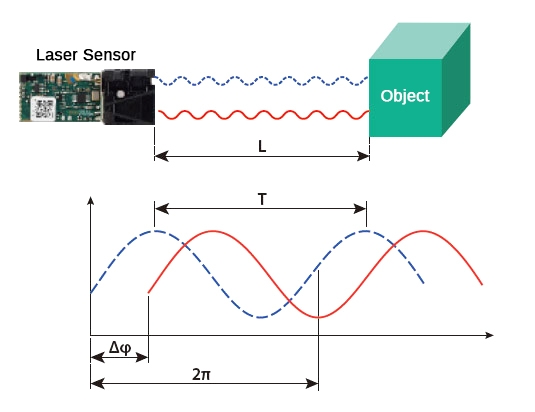

Working Principle

The measured distance can be expressed as: 2L = Δφ × c × T / 2π

In this formula, L represents the measured distance, c is the speed of light in air, T is the period of the modulated signal, and Δφ is the phase difference between the transmitted and received modulated light.

Phase-based laser distance sensor offers advantages such as high measurement accuracy, a wide measurement range, and strong resistance to interference, making it widely used in fields such as industry, surveying, and remote sensing.
