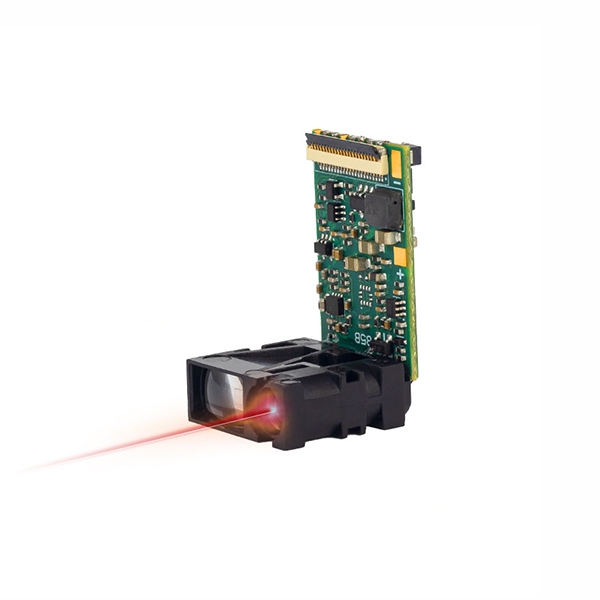

Laser Distance Sensor Module, 10m/20m/40m

The laser distance sensor module is a high-precision laser sensor module designed for non-contact distance measurement. It supports ranges of 10m, 20m, and 40m, with a resolution of 1mm and a measurement frequency of 3Hz. The module features TTL communication (with support for RS232/RS485 expansion), low power consumption, and a compact size. It is suitable for automated equipment, robot positioning, warehouse systems, and embedded development projects, enabling stable and reliable distance detection.

Feature

• The laser distance sensor module has a min measurement blind zone of just 0.03 m, making it suitable for close-range precision measurements and short-range detection scenarios.
• With a laser wavelength of 610–690 nm and power output <1 mW, it complies with CLASS II safety standards.
• The SUCH laser distance module supports TTL, RS232, and RS485 interface expansion, facilitating system integration and industrial communication applications.
• Operating voltage: DC 2.5–3.6 V. Featuring a low-power design, the standby current is less than 30 mA for enhanced energy efficiency.

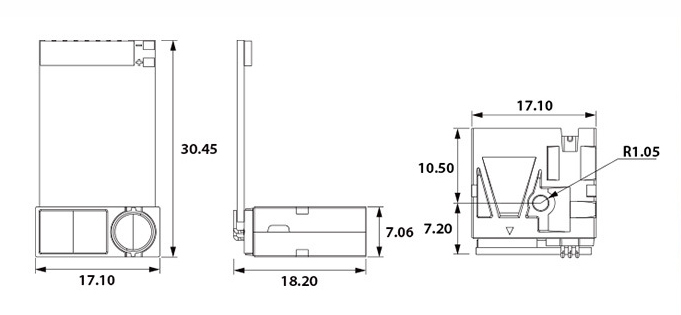

Dimension (unit: mm)

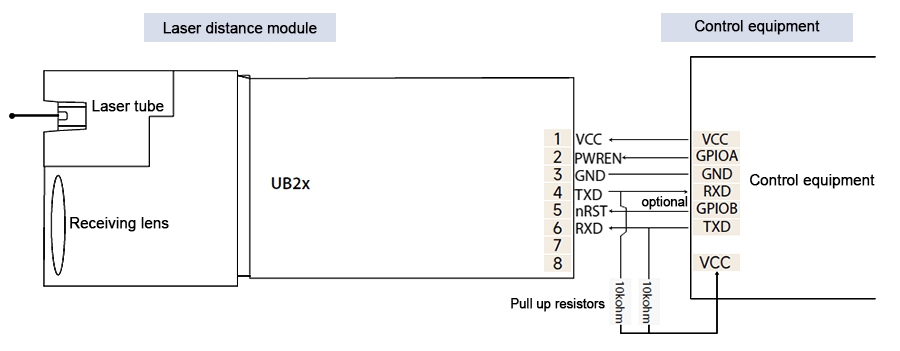

PIN Definition
