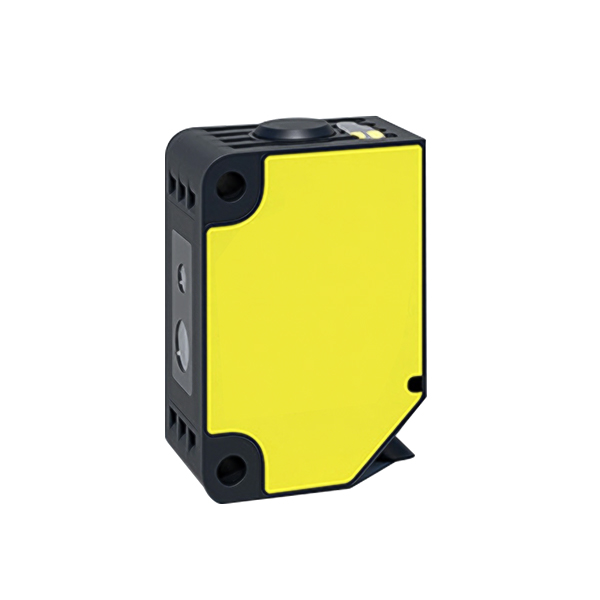

TOF Laser Distance Sensor, 0.05-35m, NPN/PNP

TOF Laser Distance Sensor is a non-contact distance measurement device based on the time-of-flight principle, with a measurement range of 0.05–35 m and a repeatability of 1 mm. It supports NPN/PNP outputs and is suitable for users in industrial automation and equipment integration. Its high-speed measurement frequency of 500 Hz and high-glare resistance of 100,000 lux ensure stable operation in complex environments, making it widely used in logistics sorting, robot positioning, and production line inspection.

Feature

• Long-range Detection: Full-range coverage from 0.05 to 35m, ensuring easy installation and hassle-free maintenance.
• Kink-Resistant Cable: The SUCH TOF sensor features a kink-resistant cable with a 50,000-cycle bending lifespan, significantly extending cable durability. Its three-layer electromagnetic shielding structure withstands 10kW frequency conversion interference.
• 50G Impact Resistance: Designed to withstand extreme operating environments such as ports and mines, with IP65 protection, ensuring the laser sensor operates reliably under harsh conditions.
• Smart Output: NPN/PNP output ports enable plug-and-play functionality, compatible with 99% of PLC systems, eliminating the need for additional conversion modules.

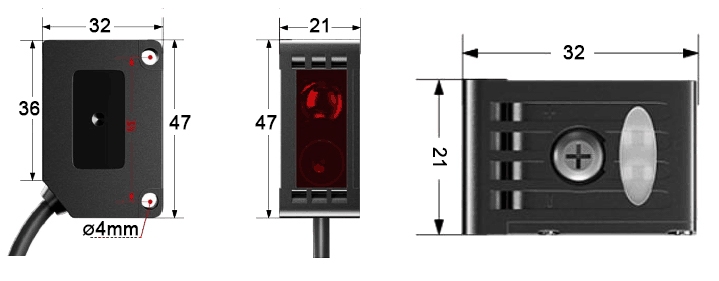

Dimension (unit: mm)

PIN Definition

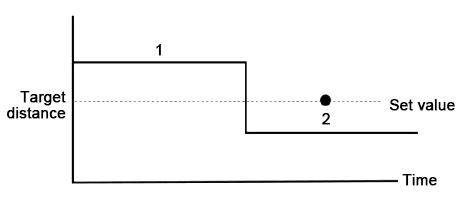

Two-Point Setting Method

The setpoint is set to the midpoint between the first and second presses of the yellow button.

Fully Automatic Setup Method

Note: If setup is unsuccessful, the orange light will flash rapidly three times in succession, and the system will revert to its pre-setup state.
