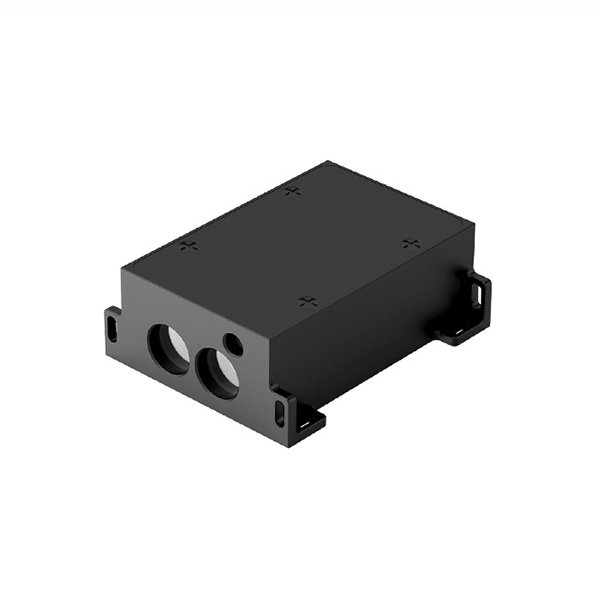

Long Range Laser Sensor, 100/150/700m, RS485/RS232

0 review(s) | Add your review

SKU: SUCH-LASER-ZSFS

$350.46

● 100/150/700m ● TTL/RS485/RS232 ● ±1m accuracy ● 905nm laser

Measuring Range *
Communication Interface *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

The long-range laser distance sensor is a high-performance measurement module with a maximum range of 100/150/700 meters, a measurement time of ≤1 second, and a blind zone of 3 meters. It features a low-power design (3.3V power supply) and supports TTL serial output. Suitable for users in smart logistics, mining surveying, and engineering surveying, it is widely used in scenarios such as intelligent transportation, robot navigation, and outdoor monitoring.

Feature

100/150/700m long range laser sensor feature

100/150/700m ultra-long-range measurement, suitable for long-distance precision detection and target positioning.
Measurement accuracy of ±1m and resolution of 0.1m, meeting industrial-grade long-range measurement requirements.
The SUCH long-range laser sensor utilizes 905nm laser technology, ensuring stable and reliable measurements with strong anti-interference capabilities.
Measurement response as fast as 1 second, enabling real-time distance data acquisition and improving system operational efficiency.
Supports TTL 3.3V serial communication and features a low-power design, facilitating integration into embedded systems.

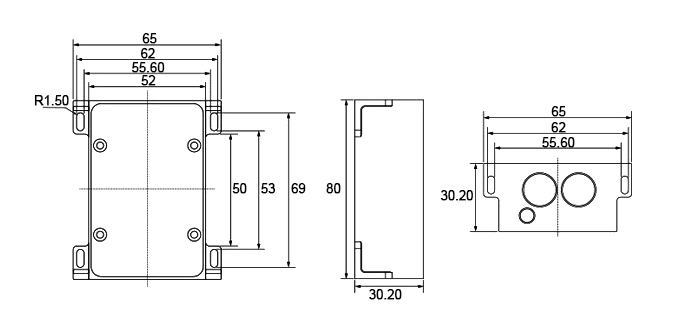

Dimension (unit: mm)

100/150/700m long range laser sensor dimension

Specs

Measurement Range	100/150/700m
Max Measurement Time	1s
Accuracy	±1m
Blind Zone	3m
Resolution	0.1m
Laser Type	905nm laser
Operating Voltage	Typical DC 3.3V, operating range: 2.5V–3.5V
Operating Current	100mA
Power Consumption	330mW @ 3.3V
Operating Temperature	0–50°C
Serial Level	TTL 3.3V
Dimensions	80×65×32mm
Weight	188g

Application

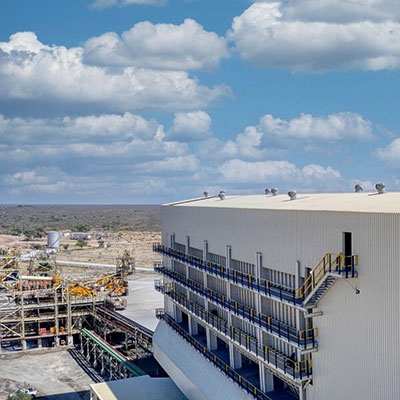

Construction Site Monitoring

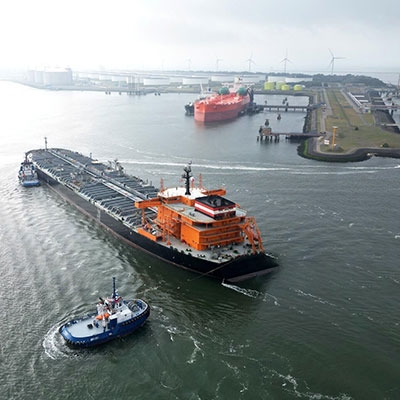

Waterway Transportation

Mountain Slope Displacement

FAQ

Q1: What is the measurement range of a SUCH long-range laser sensor? ❯

Long-range laser sensors typically support ranges of 100 m, 150 m, and 700 m, depending on the model and the target’s reflectivity. The nominal range can be achieved under good reflection conditions; however, the actual measurement range may be reduced if ambient light is strong or the target’s reflectivity is low.

Q2: What is the measurement accuracy of 100m–700m long-range laser sensors? ❯

This laser sensor offers high-precision measurement capabilities, with a typical accuracy of ±1m. It provides stable and reliable data for industrial automation and positioning applications, though accuracy may be affected by ambient light and the material of the target surface.

Q3: What is the difference between a long-range laser sensor and a laser rangefinder sensor? ❯

Long-range laser sensors are primarily used for long-distance detection; they typically feature higher transmission power and greater resistance to interference, making them suitable for applications such as surveying and security. Laser rangefinder sensors, on the other hand, are more geared toward industrial applications; they offer higher precision and a smaller form factor, making them ideal for short- to medium-range measurements in automation and equipment positioning.
