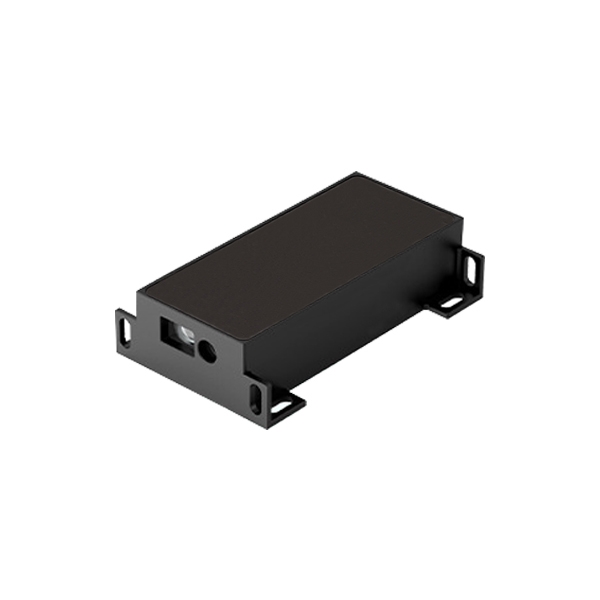

Laser Range Finder Sensor, 0.03–40/60/100m, RS232/TTL

A laser range finder sensor is an industrial device used for non-contact distance measurement, with a measurement range of 0.03–40/60/100 m and an accuracy of ±(3 mm + D × 1/10,000). It supports multiple voltages and interfaces (TTL/RS232/RS485), features low power consumption during continuous measurement, and is suitable for integration into embedded systems. It operates stably in environments ranging from 0–40°C and is widely used in logistics equipment, smart manufacturing, security monitoring, and other scenarios requiring precise distance sensing.

Feature

• SUCH laser range finder sensors support multiple measurement ranges of 40m, 60m, and 100m, suitable for industrial automation and long-distance monitoring applications.
• High-precision measurement with ±(3 mm + D × 1/10,000) meets the requirements for equipment positioning and precise distance detection.
• 1mm high resolution and a 3Hz measurement frequency enable stable, continuous distance monitoring and data acquisition.
• Supports multiple interfaces, including RS485, RS232, and TTL, compatible with PLC and industrial control system integration.
• IP54 protection rating ensures stable distance measurement and long-term operation in challenging environments.

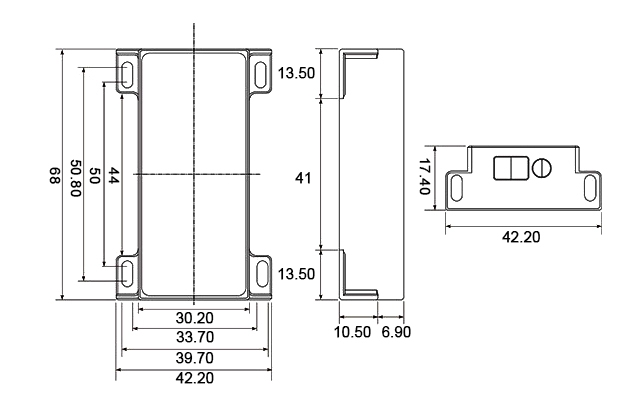

Dimension (unit: mm)
