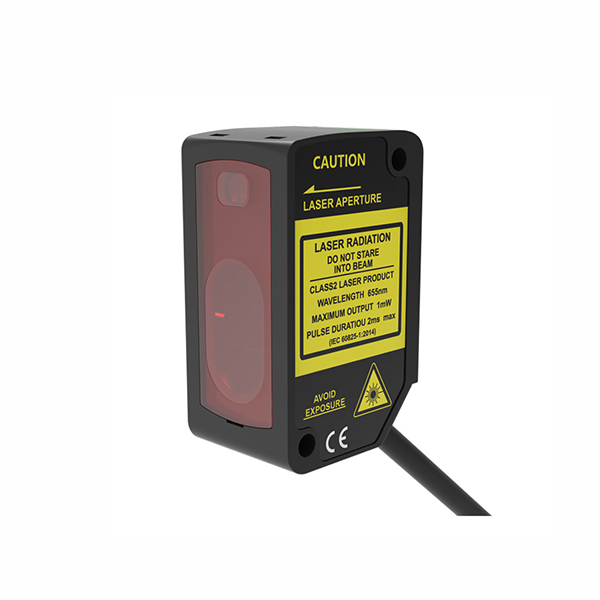

Laser Displacement Sensor, 50m/100m/400m

0 review(s) | Add your review

SKU: SUCH-LASER-PDE

$456.01

● 50m/100m/400m ● 4-20mA/0-5V ● Analog quantity + digital quantity ● 658 ± 8nm red laser

Measuring Range *
Communication Interface *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

The laser displacement sensor is an industrial sensor designed for non-contact, high-precision measurement. It supports various measurement center distances, including 50 mm, 100 mm, and 400 mm, with a resolution of up to 1 μm. It supports 4–20 mA, 0–5 V, and NPN/PNP outputs, making it suitable for industrial automation, robot positioning, and precision machining industries, helping engineers achieve efficient and stable distance and position detection.

Feature

50m/100m/400m laser displacement sensor feature

The metal housing features a sturdy, durable, and user-friendly control panel with an intuitive OLED digital display, allowing for quick configuration of all functions.
With a compact 0.5 mm spot diameter, it accurately measures even the smallest objects. The laser displacement sensor offers a repeatability of within 800 μm, enabling high-precision step detection.
SUCH laser displacement sensor offers powerful configuration options, flexible output methods, and a fully shielded design for enhanced resistance to interference.
With an IP65 protection rating, it can be used with ease even in environments with high levels of water and dust.

Dimension (unit: mm)

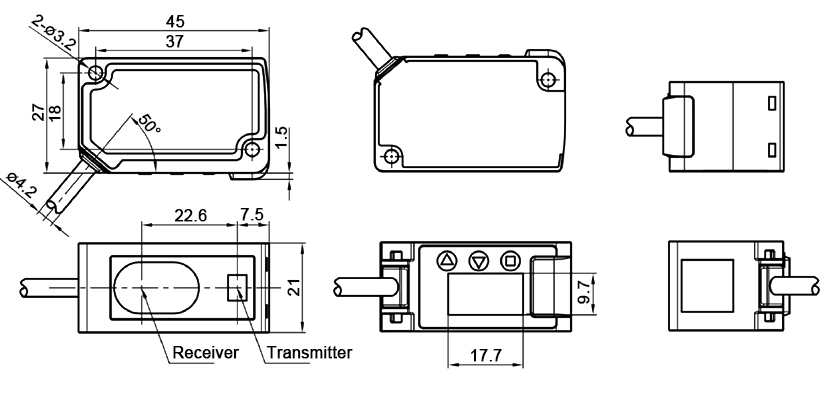

50m/100m/400m laser displacement sensor dimension

Wiring Diagram

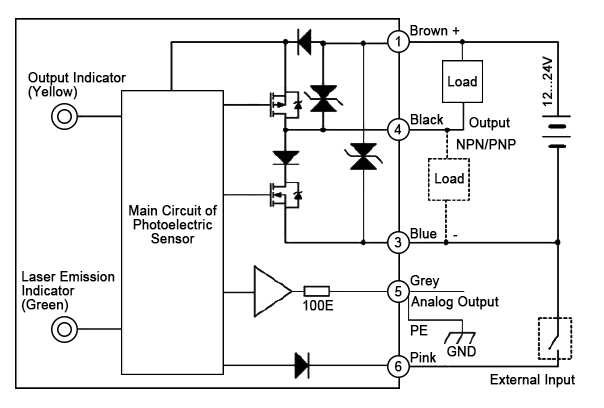

50m/100m/400m laser displacement sensor analog output wiring diagram

Specs

Model	SUCH-PDE-CR50TGIU	SUCH-PDE-CR100TGIU	SUCH-PDE-CR400TGIU
Measurement Center Distance	50 mm	100 mm	400 mm
Measurement Range	±15 mm	±35 mm	±200 mm
Full Scale (F.S.)	35–65 mm	65–135 mm	200–600 mm
Beam Diameter	Approx. Φ50 μm	Approx. Φ120 μm	Approx. Φ500 μm
Resolution	1 μm	10 μm	100 μm
Linear Accuracy	±0.1% F.S.	±0.1% F.S.	±0.2% F.S. (200–400 mm)
			±0.3% F.S. (400–600 mm)
Repeatability	10 μm	70 μm	300 μm (200–400 mm)
			800 μm (400–600 mm)
Temperature Drift	<0.04% F.S./°C	<0.03% F.S./℃	<0.04% F.S./℃
Incandescent Light Interference	<3000 lux	<3000 lux	<3000 lux
Sunlight Interference	<10,000 lux	<10,000 lux	/
Light Source Type	Red laser (650 nm), Class 2
Power Supply Voltage	12–24 VDC
Power Consumption	≤960 mW
Load Current	≤100 mA
Voltage Drop	<2 V
Output Signal	Analog: 4–20 mA (load resistance <300 Ω) or 0–5 V
	Digital: NPN/PNP (NO/NC configurable)
Distance Setting	Button settings
Response Time	<10 ms
Display	OLED display (size: 18 × 10 mm)
Indicator Lights	Laser operation indicator: Green light on
	Digital output indicator: Yellow light
Protection Circuit	Short-circuit protection, reverse polarity protection, overload protection
Built-in Functions	Address and baud rate settings, zero point adjustment, parameter query, self-test, output settings, single-point/two-point/three-point teaching, window teaching, factory reset
Operating Environment	Operating temperature: -10 to 45°C
	Storage temperature: -20 to 60°C
	Humidity: 35 to 85% RH (non-condensing)
Protection Rating	IP65
Material	Housing: Aluminum alloy
	Lens: PMMA
	Display: Glass
Vibration Resistance	10–55 Hz, 1 mm double amplitude, 2 hours each in X/Y/Z directions
Shock Resistance	500 m/s² (approx. 50G), 3 times in each of the X, Y, and Z directions
Connection Method	2 m composite cable (0.2 mm²)
Accessories	M3 screws (30 mm) ×2, nuts ×2, washers ×2, mounting bracket, user manual
Dimensions	452721 mm

Application

Automated Warehousing Systems

Automated Production Lines

Semiconductor Industry
