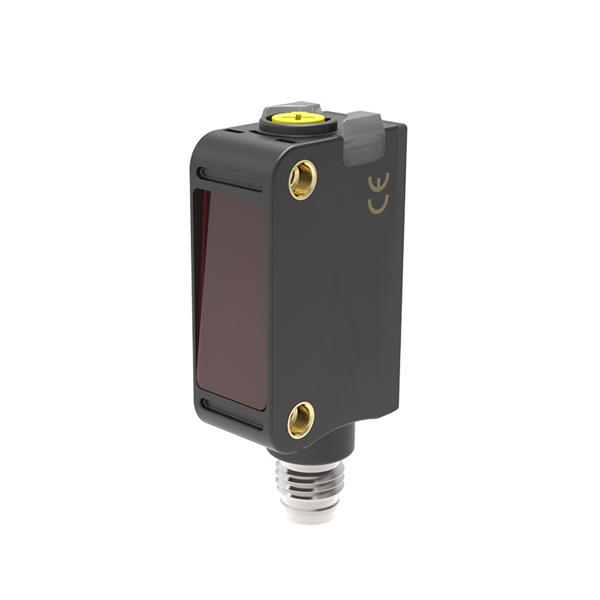

Photoelectric Laser Sensor, 150mm, NPN/PNP, NO/NC

0 review(s) | Add your review

SKU: SUCH-LASER-YC15DNRL

$198.31

● 150mm (15cm) ● NPN/PNP, NO/NC ● Background suppression type ● 650nm red laser

Communication Interface *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

The photoelectric laser sensor is a high-precision laser sensor based on background suppression technology, featuring a detection range of 150 mm, a spot size of ≤2 mm, and support for NPN/PNP outputs, with a response time of ≤1 ms. It is suitable for industrial automation, logistics sorting, and smart device manufacturing, and is particularly well-suited for applications requiring precise detection of small targets or high-contrast objects, thereby enhancing system stability and detection efficiency.

Feature

150mm photoelectric laser sensor feature

Compliant with IP67, suitable for environments in the lithium-ion battery, robotics, and semiconductor industries, among others.
The detection distance of the photoelectric laser sensor can be adjusted via a rotary knob, allowing for precise and quick setup.
SUCH background-suppressed laser sensor provides stable detection of both white and black targets.
With a 650 nm red laser source, the spot is clearly visible, facilitating installation and debugging.

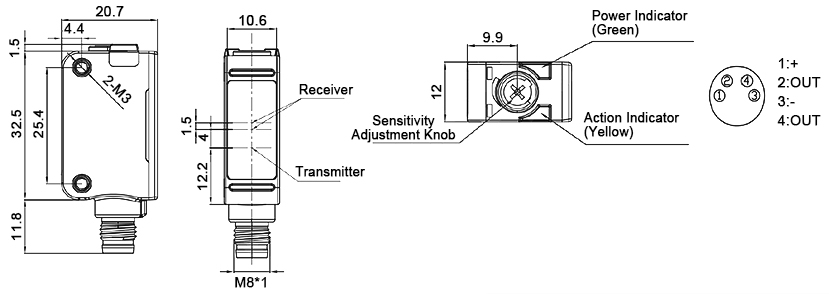

Dimension (unit: mm)

150mm photoelectric laser sensor dimension

Wiring Diagram

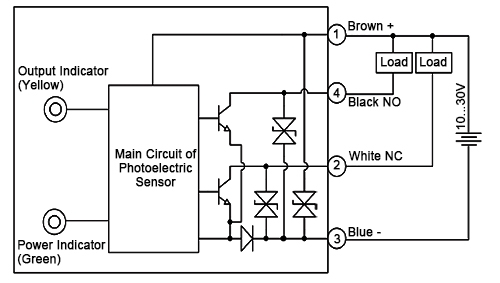

NPN

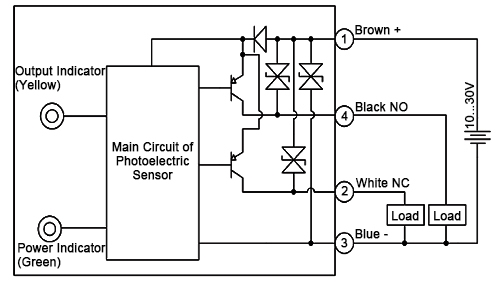

150mm photoelectric laser sensor pnp wiring diagram

PNP

Specs

Model	SUCH-PSE-YC15DNRL-E3	SUCH-PSE-YC15DPRL-E3
Detection Method	Background suppression type
Detection Distance	150 mm (15 cm)
Output Type	NPN NO+NC	PNP NO+NC
Distance Adjustment	Multi-turn knob adjustment
Output Status	White wire NC
	Black wire NO
Spot Size	≤2 mm @ 15 cm
Hysteresis	<5%
Operating Voltage	10–30 VDC (ripple ≤10% VP-P)
Current Consumption	≤20 mA
Load Current	≤100 mA
Voltage Drop	≤1.5 V
Light Source Type	Red laser (650 nm), Class 1
Dead Zone	<10 mm
Protection Circuit	Short-circuit protection, polarity protection, overload protection, Zener protection
Response Time	T-on ≤1 ms
	T-off ≤1 ms
Indicator Light	Green LED: Power indicator
	Yellow LED: Output indicator, overload/short-circuit
Ambient Light Immunity	Sunlight interference resistance ≤10,000 lux
	Incandescent light interference resistance ≤3,000 lux
Operating Temperature	-10°C ~ 50°C (no dew or condensation on optical surface)
Storage Temperature	-40°C ~ 70°C (no dew or condensation on optical surface)
Protection Rating	IP67
Material	Housing: PC+ABS
	Optical element: PMMA plastic
Connection Type	M8 4-pin connector
Weight	10g

Application

Robotics Industry

Lithium-Ion Battery Industry

Automotive Industry

FAQ

Q1: What is the detection range of the photoelectric laser sensor? ❯

This photoelectric laser sensor has a detection range of 150 mm and is suitable for short-range, high-precision detection applications. Under standard target conditions and in a stable environment, it delivers fast response times and stable detection, making it widely used for position recognition and object detection in automated equipment.

Q2: Is the photoelectric laser sensor affected by ambient light? ❯

The SUCH photoelectric laser sensor has a certain degree of interference resistance, with sunlight interference resistance ≤10,000 lux and incandescent light interference resistance ≤3,000 lux. It is recommended to install the sensor properly to avoid direct exposure to strong light and to select an appropriate installation angle to improve detection reliability.

Q3: What is the difference between a laser photoelectric sensor and a standard photoelectric sensor? ❯

Compared to standard photoelectric sensors, the laser light source offers superior focusing capability and higher detection accuracy. It is suitable for detection requirements involving smaller objects or longer distances, providing more stable and reliable detection results.
