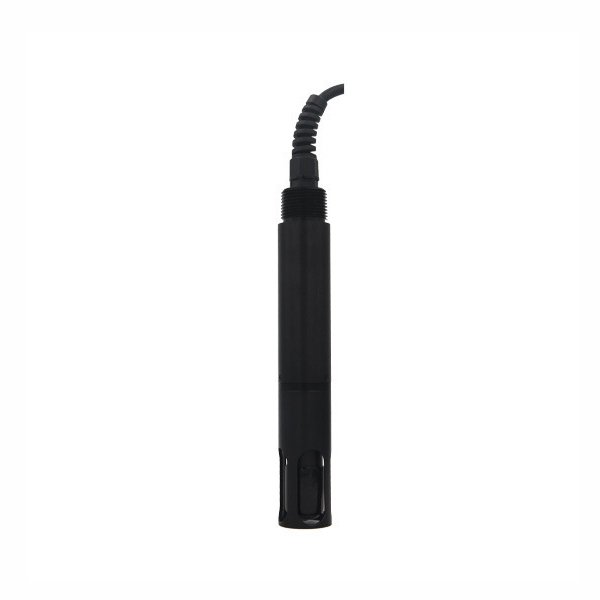

Water Quality Nitrite Sensor, 0-10 ppm

This is a 0–10 ppm ion-selective electrode (ISE) sensor for monitoring nitrite concentrations in water, using the coated-electrode method to ensure stable detection. It supports RS485 and MODBUS/RTU communication, with a resolution of 0.01 mg/L and an accuracy of ±5% F.S. or ±3 mg/L. The nitrite sensor is suitable for water treatment engineers, environmental monitoring personnel, and system integrators, and is widely used in wastewater treatment, drinking water monitoring, and aquaculture water quality management.

Feature

• Digital water quality sensor with direct RS-485 digital signal output, supporting MODBUS/RTU.
• The ion exchange membrane head of the SUCH nitrite ion water quality sensor is replaceable, resulting in low maintenance costs.
• Does not consume chemicals and has no micro-pores, eliminating the risk of clogging in wastewater.
• 0-10 ppm water quality sensor features low power consumption and an internal circuit designed for interference resistance.
• Nitrite ion sensor features a built-in temperature sensor for automatic temperature compensation.

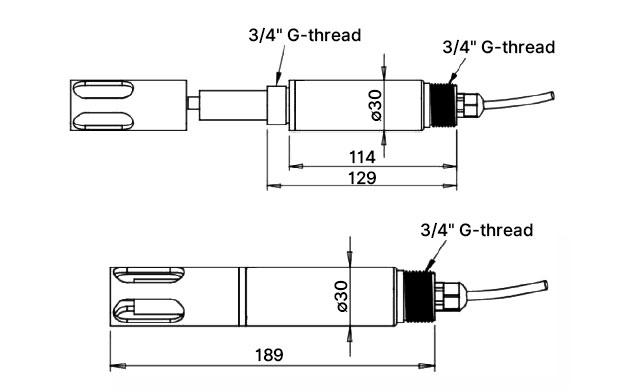

Dimension (unit: mm)

Note: This ion sensor is not suitable for pipeline installation and must not be used in seawater.

Detail

1. POM Housing: IP68 waterproof rating, suitable for depths up to 20 meters, with high-pressure resistance.
2. Probe: The sensor probe is equipped with a protective housing, offering pressure resistance, contamination resistance, and easy storage.
3. Cable: Standard 10-meter length; custom lengths available upon request.

Wiring Diagram

• Brown Wire: Power (12 or 24VDC)
• Black Line: Ground (GND)
• Blue Line: 485A
• White Lline: 485B
• Bare Copper: Shielding layer
