Overview of Sensors for the Electrical Industry

Overview of Sensors for the Electrical Industry

In the electrical industry, accurate sensors are indispensable in every link from power generation, transmission to distribution. Sensors monitor key parameters such as current, voltage, and magnetic field in real time to ensure stable operation of the system, convert invisible electrical energy into measurable and analyzable data, and provide a data basis for the construction and operation and maintenance of the power grid. SUCH online store will help you to understand the indispensable sensors in the electrical industry and solutions for corresponding scenarios.

Sensors related to electrical

Current Sensor/Current Transmitter:

The current sensor/current transmitter is used to detect AC or DC current in real time and convert it into a standard signal output. It has the advantages of fast response, high accuracy and convenient installation. It is widely used in power monitoring, overload protection and energy consumption management.

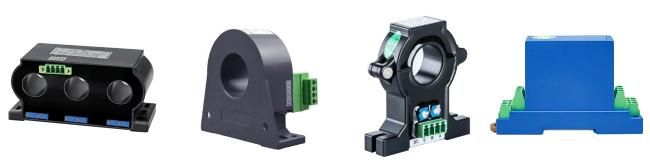

Current sensor type

Magnetic Sensor:

A magnetic sensor is a device that converts the magnetic property changes of sensitive elements caused by external factors such as magnetic field, current, stress and strain into electrical signals to detect the corresponding physical quantities in this way. Magnetic sensors are widely used in industry and electronic products to measure physical parameters by sensing magnetic field strength.

Power Sensor/Power Transducer:

A power sensor/power transducer is a measuring instrument that converts active power and reactive power in a circuit into a linear DC signal output. Its core function is to reflect the direction of power transmission through electrical signal conversion, and it also has the ability to measure electric energy. Its advantages are accurate energy efficiency analysis, good stability, and it can be used for a variety of load types.

Signal Isolator:

The signal isolator electrically isolates the input signal from the output signal to prevent high voltage or interference signals from entering the control system. Its advantages are protecting control equipment, eliminating ground loop interference, and improving the reliability and safety of signal transmission.

Signal isolator type

Voltage Sensor:

The voltage sensor is used to detect the circuit voltage value and convert it into a standard signal output. It has the characteristics of a wide measurement range, strong anti-interference, and high precision. It is a key component of power grid monitoring and other systems.

Recommended products

Current sensor: The current sensors are classified into AC current sensors, DC current sensorsand Hall effect current sensors. It is suitable for overload protection, power monitoring and power dispatching, and is to ensure power safety and energy consumption management.

Voltage sensor: The Voltage sensor can monitor voltage changes in real time, warn of voltage anomalies, help maintain voltage stability, and avoid equipment damage caused by overvoltage or undervoltage. It is an important guarantee for the stable operation of the power grid.

Signal isolator: The signal isolator effectively isolates the signal between the measurement end and the control system, prevents high-voltage interference and ground loop problems, improves the system's anti-interference ability and operational reliability, and is suitable for use in complex power environments.

Current Sensor Voltage Sensor Signal Isolator
Current Sensor Voltage Sensor Signal Isolator

Industry solutions

Transmission line status perception system

Long-distance transmission lines are usually exposed to complex and changeable natural environments, and are prone to voltage fluctuations, line short circuits or aging. Long-distance transmission lines are prone to voltage instability, short circuits or equipment aging in harsh environments. The traditional manual inspection is inefficient and requires a more complete transmission line status perception system with excellent electrical sensors.

  • Recommended Sensors
Recommended sensor Recommended reason
Voltage sensor Detects whether the line voltage is within a safe fluctuation range and identifies voltage drops or spikes.
Magnetic sensor Used to determine whether the wire has abnormal magnetic field changes such as external force vibration, fault pulling, etc.
Signal isolator Electrically isolates the remote node signal, enhances anti-interference ability, and improves data communication stability.
  • Solution Recommendation

Transmission line status perception system
Deploy voltage sensors at key transmission nodes to monitor the voltage of the trunk line to ensure that the power supply fluctuation is within a safe range. At the same time, install magnetic sensors at the connection between the tower and the wire to monitor the magnetic disturbance caused by wind pressure, vibration or foreign object collision. With the signal isolator, various sensor data are stably transmitted to the remote monitoring platform to realize the transmission line status perception system.

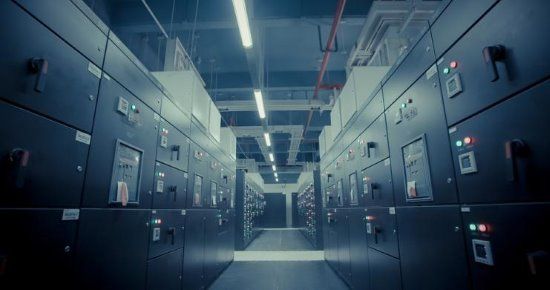

Distribution cabinet circuit energy consumption monitoring system

In large industrial parks, data centers or manufacturing enterprises, the distribution system usually covers multiple circuits running at the same time. Without accurate sub-item metering and energy efficiency analysis methods, it is very easy to cause energy waste, load imbalance and power consumption risks.

  • Recommended Sensors
Recommended sensor Recommended reason
Current sensor Monitor the current usage of each circuit and realize branch metering.
Power sensor Provide equipment energy consumption curve data to support energy efficiency analysis.
Voltage sensor Ensure voltage balance and load symmetry, and warn of power supply anomalies.
  • Solution Recommendation

Distribution cabinet circuit energy consumption monitoring system
Install current and voltage sensors on the internal circuit of the power distribution cabinet and connect power sensors to obtain high-precision energy consumption data, which can realize real-time power consumption statistics, equipment energy efficiency comparison and abnormality identification. Purchasing Such sensors can improve equipment efficiency and reduce comprehensive energy consumption costs.
