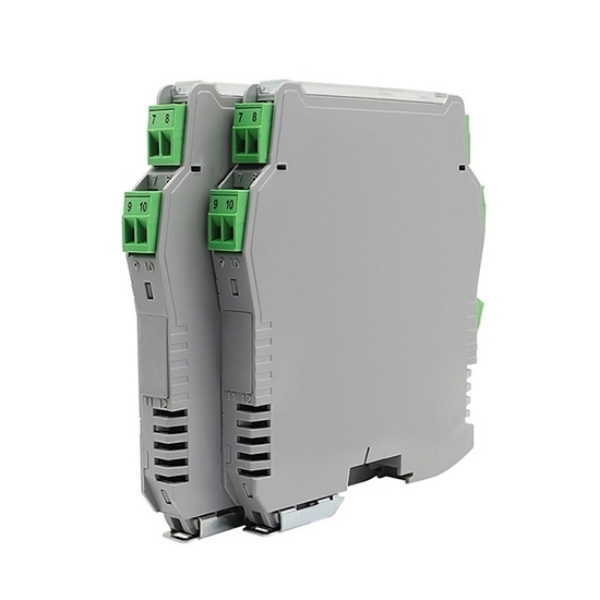

Signal Isolator, Multi-Input (TC/RTD), MODBUS-RTU Output

This analog isolator accepts thermocouple, RTD, resistor, or potentiometer inputs. It outputs 0‑20mA or 0‑10V with load ≤400Ω or load ≥10kΩ. Channel options: 1‑in‑1‑out, 1‑in‑2‑out, 2‑in‑2‑out. Accuracy ±0.1% or ±0.2% F.S. with ≤1s response and ±0.1% F.S./°C drift. Analog signal isolator, it offers MODBUS‑RTU communication (≤32 nodes, 1000m), 1500VAC isolation, and ≥100MΩ insulation. This thermocouple rtd signal conditioner and temperature input signal isolator operates on DC 18‑32V, complies with IEC 61326‑1, and mounts on 35mm DIN rail (106.5×12.5×115mm). This signal conditioner 4‑20mA is ideal for multi‑sensor temperature signal conditioning.

Feature

• Digital output: direct MODBUS-RTU from TC/RTD input skips analog conversion for zero accuracy loss and lower system cost.
• RS485 communication: up to 1000 m with ≤32 nodes enables distributed monitoring without signal degradation over long runs.
• Accuracy & drift: ±0.1% FS accuracy and ±0.1% FS/°C drift ensure stable digital readings across -20~55°C without recalibration.
• Multi-input: supports RTD, resistor, potentiometer, and TC in one device, reducing spare parts inventory.
• Channel config: flexible 1in1out, 1in2out, or 2in2out matches signal distribution needs and minimizes module count.
• Isolation strength: 1500V AC/1min with ≥100 MΩ insulation protects RS485 networks from surges and ground loops.

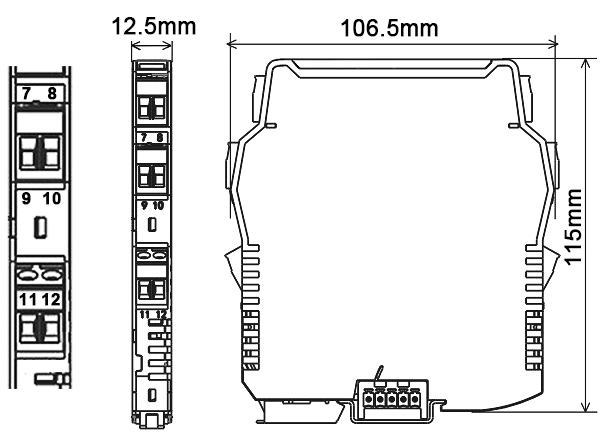

Dimension (Unit: mm)

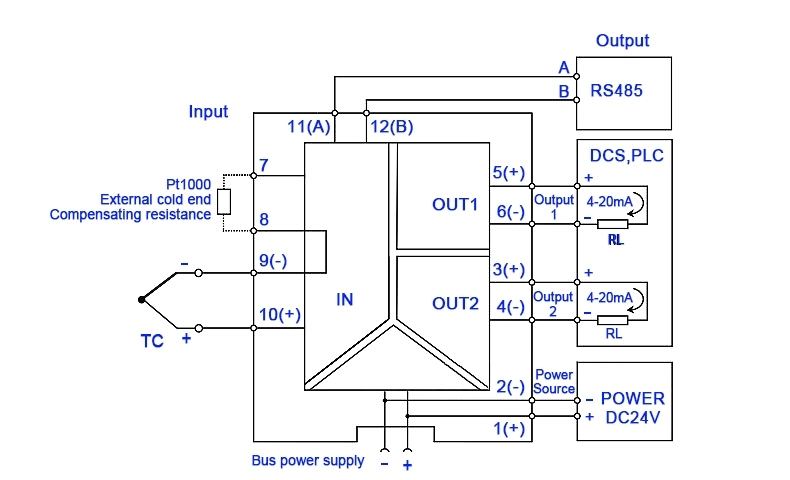

Wiring Diagram
