    Solar Powered Soil Moisture Sensor, 0~100%RH

    SKU: SUCH-SMS-882A
    $108.56
    ● Solar powered, temperature and moisture detection ● Temperature detection range: -10~60°C (14°F ~ 140°F) ● Moisture detection range: 0~100%RH (Non-condensing) ● Wireless distance: 50M
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    This solar-powered soil moisture sensor supports a detection range of 0-100%RH and temperature monitoring from -10 to 60°C with an accuracy of ±0.5°C, ensuring precise environmental tracking. The soil moisture sensor uses Zigbee 3.0 and IEEE 802.15.4 wireless protocols to provide a stable transmission range of 50 meters and updates data every 10 minutes for real-time feedback. The IP66 waterproof design and 35mA solar charging allows for reliable operation outdoors. It also measures conductivity up to 20ms/cm with a resolution of 0.01ms/cm, excluding the gateway.

    Feature

    Solar powered soil moisture sensor feature

    Details

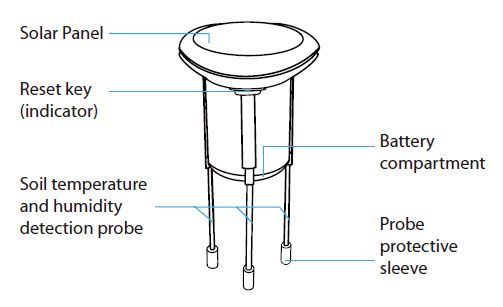

    Solar powered soil moisture sensor detail

    Solar Powered Soil Moisture Sensor Installation

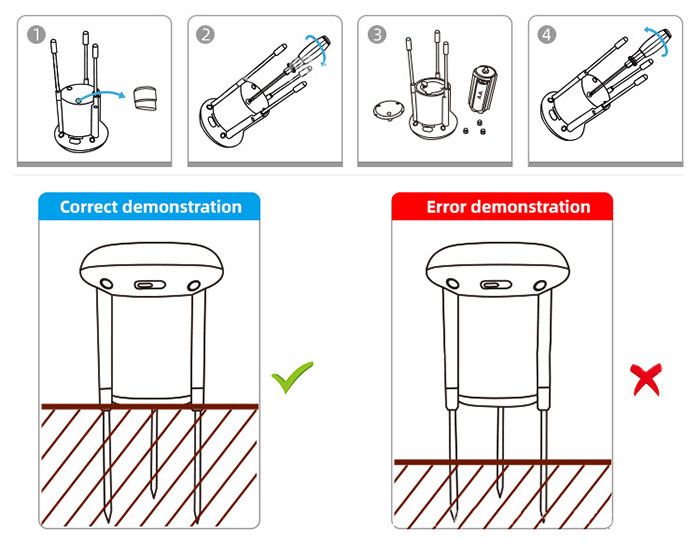

    Solar powered soil moisture sensor installation

    1. Remove the waterproofrubber plugs from thebattery compartment.
    2. Use a screwdriver tounscrew the screws.
    3. Remove the cover & battery compartment andreplace the batteries.
    4. Put the battery compartment back, cover itand tighten the screws.

    App Connection/ Temp and Moisture Historical Curves

    Remote control

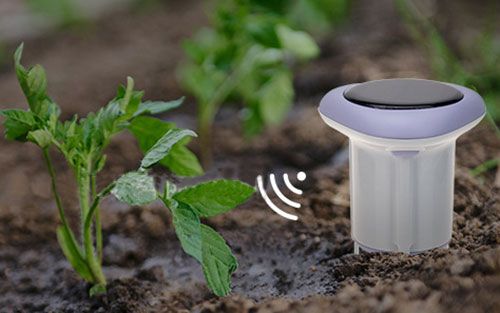

    Soil detection
    Specs
    Solar Charging Current 35mA
    Wireless Distance 50M
    Waterproof Level IP66
    Temperature Detection Range -10~60°C (14°F ~ 140°F)
    Moisture Detection Range 0~100%RH (Non-Condensing)
    Max. Electrical Conductivity Range 20ms/cm
    Communication Protocol Zigbee 3.0
    Wireless Protocol Zigbee IEEE 802.15.4
    Temperature Detection Accuracy 0.5°C (Adjustable)
    Moisture Detection Accuracy 5%RH (Adjustable)
    EC Detection Accuracy 3%FS
    EC Resolution 0.01ms/cm
    Time Span of Detection 10 min (Adjustable)
    Working Temperature -10~60°C (14~140°F)
    Working Humidity 0~100%RH (Non-Condensing)
    Battery AA 1.2V*3 Ni-MH battery (Rechargeable)
    Size 78*78mm*146mm
    Sensor Weight 89g
    Gateway Weight 58g

    Note: This soil moisture sensor must be used with a gateway. Not included by default.

    Application

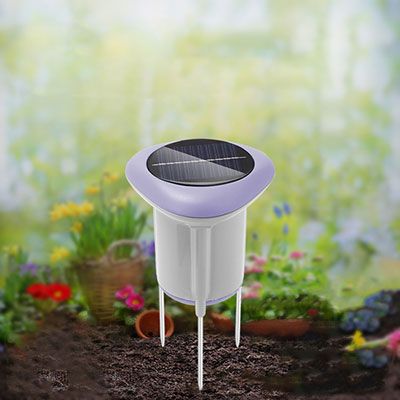

    Solar soil moisture sensor for garden

    Garden

    Solar soil moisture sensor for watering

    Watering

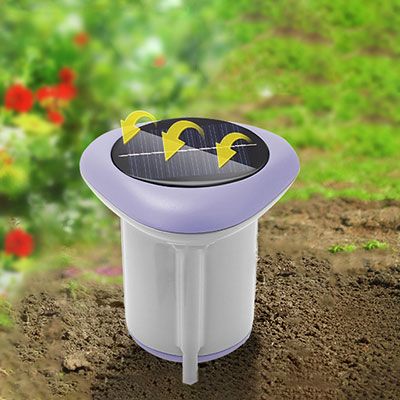

    Solar soil moisture sensor for crops

    Crops

    FAQ

    The solar soil moisture sensor uses built-in solar panels to charge an internal battery, powering the device continuously.

    Yes, the sensor is designed with a rechargeable battery and low power consumption. It stores energy for use during cloudy or rainy days, ensuring continuous operation in outdoor environments.

    The solar soil moisture sensor supports a wide range of soil conditions, from sandy to clay. It provides accurate readings across varying moisture levels and works well in agricultural fields, greenhouses, and landscaping.
