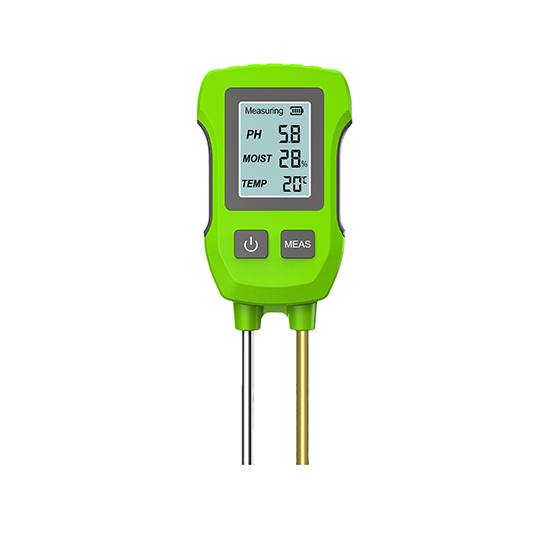

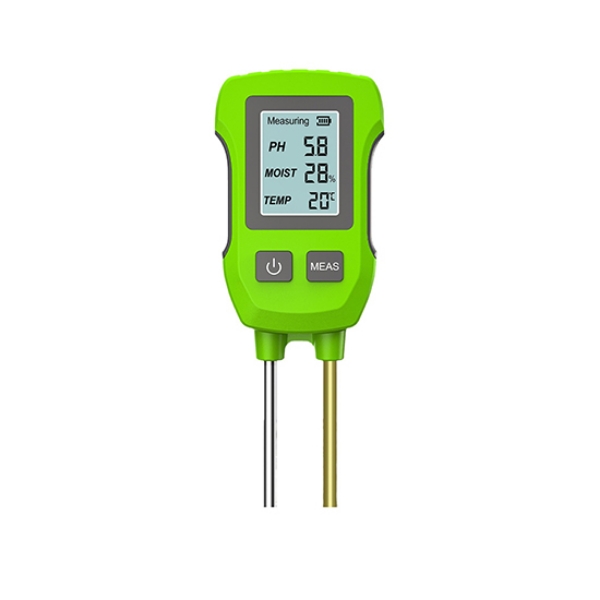

Digital Soil Moisture Sensor, Temperature/pH

The high-precision digital soil moisture sensor features an LCD screen display design, providing real-time readings of pH, moisture, and temperature to help optimize plant health and ensure ideal growing conditions throughout all seasons of the year. The multi-functional moisture sensor measures soil moisture (0–90%, ±10%), temperature (−10°C to 90°C, ±1%), and pH (3–9, ±0.2). The housing is available in white or green, and the sensor is CE/RoHS certified. It is powered by three AAA alkaline batteries, enabling accurate soil diagnostics without the need for an external power source.

Feature

• Digital soil moisture sensor using a large-screen LCD, one screen with multipledisplay interfaces.
• LCD backlight auxiliary lighting for easy reading.
• Celsius and Fahrenheit display conversion.
• lf there is no operation on the interface for 30 secondsit will shut down to save power automatically.

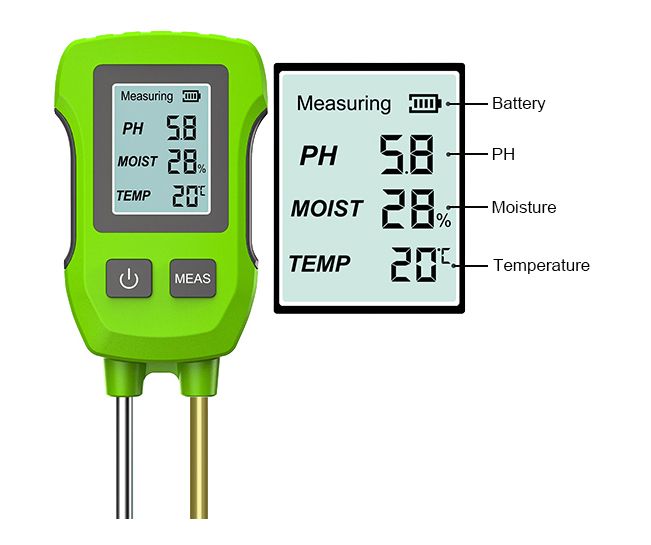

Details

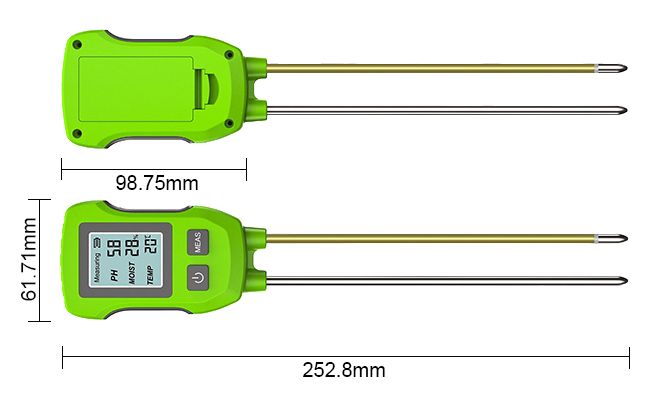

Dimension (unit: mm)

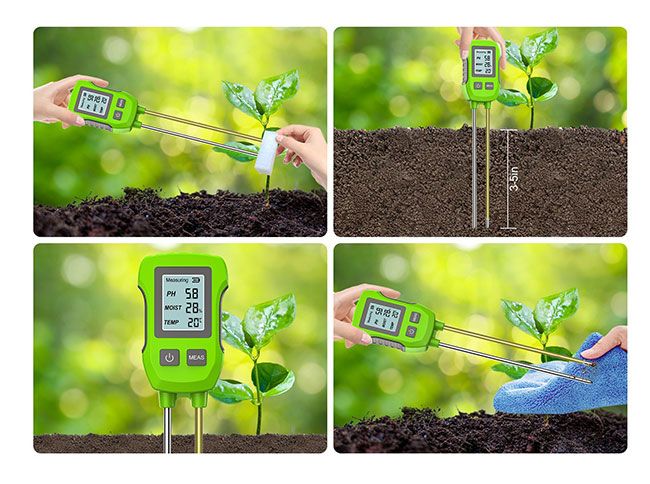

Digital Soil Moisture Sensor Usage Process

• Step 1: Remove the foam sponge from the end of the probe and open the soil moisture sensor.
• Step 2: Insert the probe into the soil 3–5 inches.
• Step 3: Press the “MEAS” button and wait approximately 10 seconds to obtain the test data. Press and hold the ‘MEAS’ button to switch the temperature units between “°C” and “°F.”
• Step 4: Remove the soil moisture probe from the soil and wipe it clean for future use.

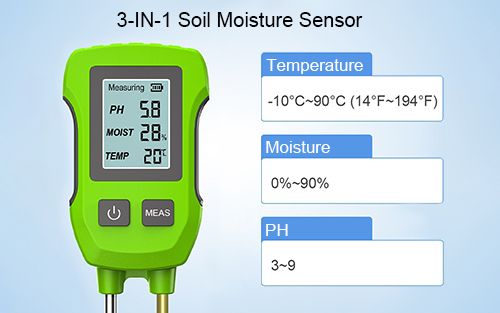

3-in-1 Function/ Use Cases
