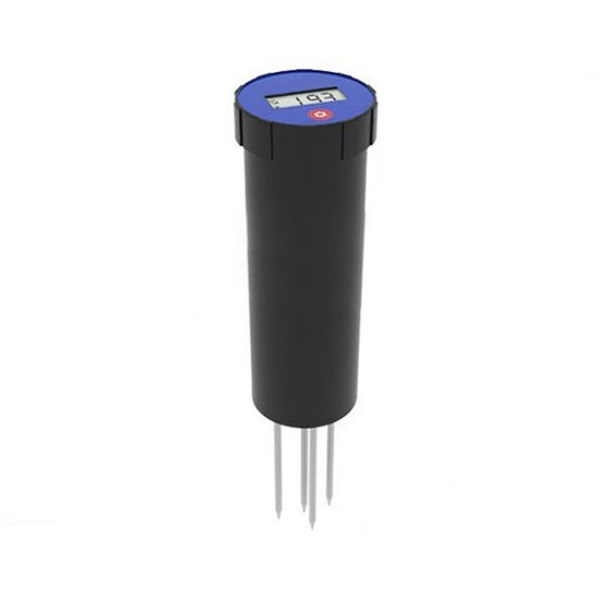

Handheld Speedy Soil Moisture Sensor with Digital Display

This portable speed soil moisture sensor provides fast and accurate measurement results with a response time of less than 1 second. It can measure soil moisture levels ranging from 0–100% RH with a resolution of up to 0.10%, measure temperature (-40°C to 80°C, resolution 0.1°C, accuracy ±0.5°C), and detect conductivity (0–10,000 µS/cm, accuracy ±3% FS). Equipped with a digital display and featuring an IP54 protection rating, it can operate reliably in harsh environments with an operating temperature range of -20°C to 60°C.

Feature

• Features a handheld design, compact size, and lightweight construction for easy portability.
• Monitors soil composition in real time, capable of detecting multiple organic components in the soil.
• Minimal steps required, fast measurement, no reagents needed, and unlimited testing. Battery-powered with an LCD digital display, featuring clear interface parameter functionality, and replaceable batteries.
• Soil moisture sensor probe with an insertable design ensures accurate measurements and reliable performance.

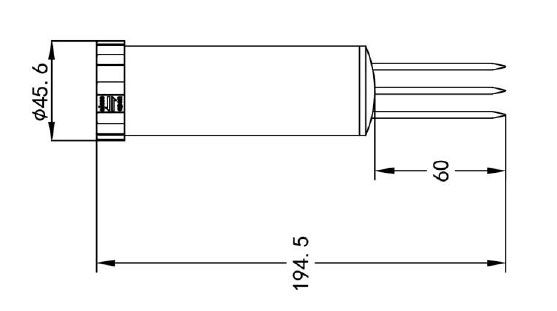

Dimension (unit: mm)

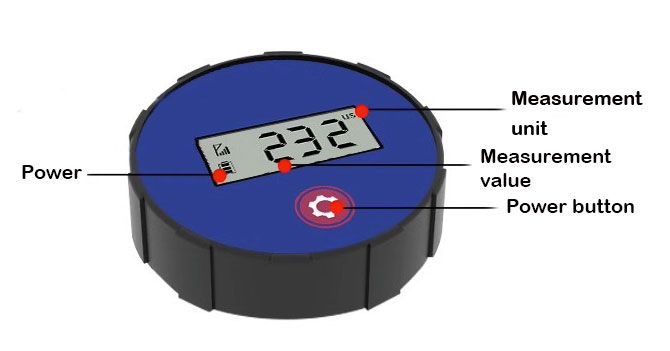

Details

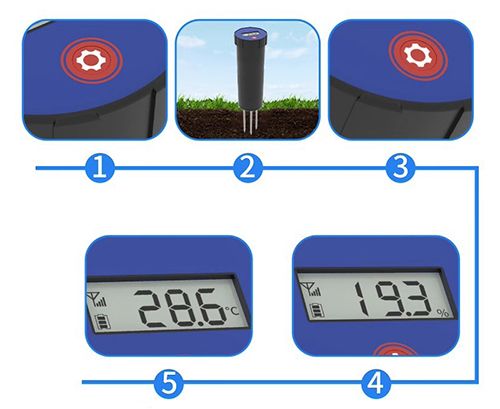

Speedy Soil Moisture Sensor Usage Steps

1. Long press the power button on the soil moisture sensor to turn it on.
2. Insert the moisture sensor vertically into the soil.
3. Press the “measurement button” again.
4. Take multiple measurements and calculate the average value.
5. Read the value after the data has stabilized.

Precautions

• Ensure that the sensor probe is in full contact with the soil and is firmly pressed down to ensure data accuracy.
• The soil rapid testing sensor is only suitable for testing mud and soil. It is not suitable for dry flour, small stones, organic wood chips, liquid particles, etc.
• To enhance the accuracy of test results, use the method of taking multiple measurements and averaging the values during testing.
• When using the sensor, avoid contact with stones and do not apply excessive force, as this may damage the soil moisture sensor electrodes. Avoid leaving the sensor inserted in the soil for extended periods, as this may cause oxidation.
• After measurement, promptly clean soil particles from the probe surface using gauze and keep the probe dry.
