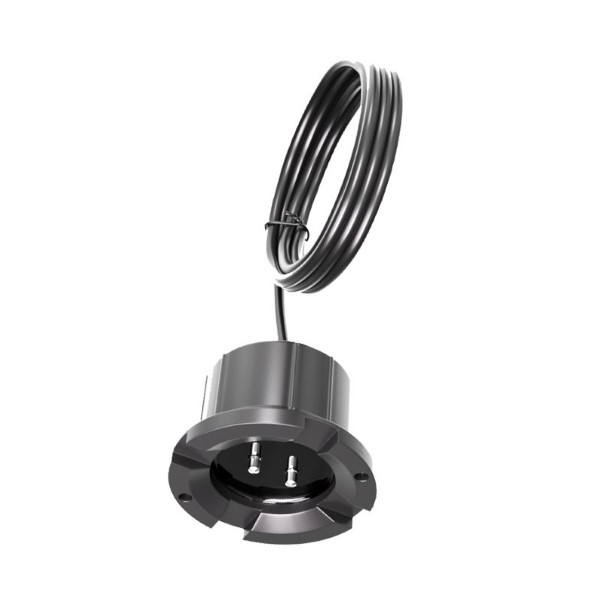

Water Leak Detection Sensor for New Energy, 12V-24V

0 review(s) | Add your review

SKU: SUCH-WLS-24-E

$85.09

● Power supply 12-24V DC ● False alarm rate <100ppm ● Relay output, NC/NO optional ● Waterproof level IP68

Output *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Good price water leak detection sensors for new energy for sale. The SUCH water leak detection sensor is designed for new energy systems, powered by 12V-24V DC voltage, with NO/NC relay output. This high-sensitivity water leakage sensor has a false alarm rate of <100ppm and features surge protection, electrostatic discharge protection, and internal reverse polarity protection, ensuring stable and safe operation. It can be used in temperatures ranging from -25℃ to 60℃.

Feature

Sensitive and Accurate: The water leak detection sensor features a 1.5-meter detection cable for point-based detection, offering high sensitivity and a low false alarm rate.
Corrosion-Resistant and Durable: The water leak sensor uses an alloy casing and includes built-in surge protection, electrostatic protection, and internal short-circuit protection. With an IP68 waterproof rating, it boasts a long service life.
Wide Applicability: Operating on a wide voltage range of DC 12-24V, and with an operating temperature of -25~60℃ and humidity of 0%~100%RH, it is suitable for most working environments.

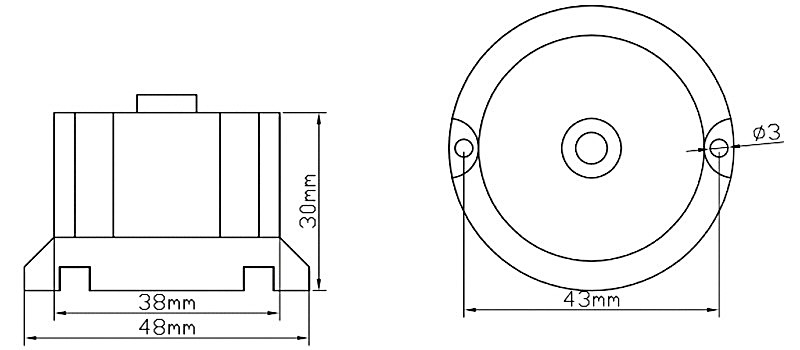

Dimension (Unit:mm)

Water leak detection sensor dimension

Line Definition

Color	Line Definition
Red	Power supply positive
Black	Power supply negative
Yellow	Normally open contact output, no polarity difference
Blue	Signal common terminal, no polarity difference
Green	Normally closed contact output, no polarity difference

Specs

Power Supply	12-24V DC (Min8V-Max28V)
Surge Protection	Transient surge ±250V
Static Protection	±5000V
Internal Short-circuit Protection	Yes
Working Temperature	-25℃~60℃
Working Humidity	0%RH~100%RH
False Alarm Rate	<100ppm
Static Power Consumption	<0.03W@24V
Alarm Power Consumption	Max0.6W@24V
Output Form	Relay output, NC/NO (optional)
Load Capacity	Relay output, ≤1A/30V DC
Waterproof Level	IP68
Detection Cable	The sensor cable detection points are evenly distributed about 10cm apart.
Dimension	484830mm
Configuration	Standard 1.5m detection cable, the detection cable length can be customized.

Application

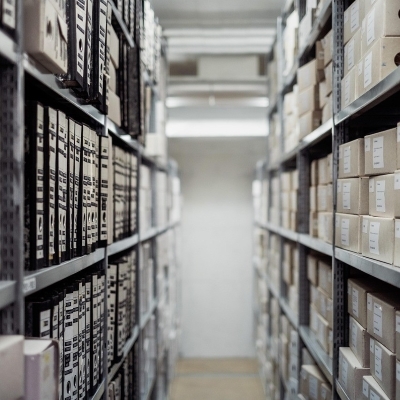

Archives room

Engine Room

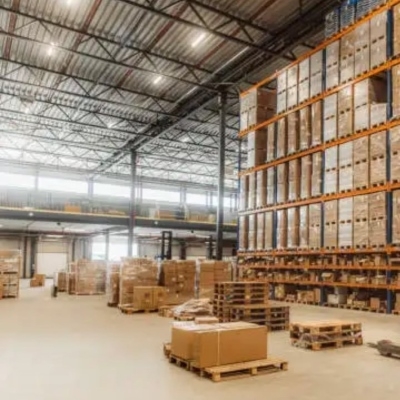

Warehouse

FAQ

Q1: How do water leak detection sensors work? ❯

Water leak sensors work by detecting changes in electrical conductivity when water passes through the sensor probe or sensing cable. Once water is present, the circuit is completed, and the alarm is activated.

Q2: What are the advantages of using leak detection sensors? ❯

Water leakage sensors provide early warning of leaks, helping to prevent equipment damage, reduce maintenance costs, and improve facility safety through real-time monitoring.

Q3: Do water leak sensors require maintenance? ❯

Only minimal maintenance is required. Regular checks, cleaning of the sensor probe, and testing of the alarm function ensure reliable operation.

0 review(s)

Write your own review Close

Review title: *

Review text: *

Rating:

1 2 3 4 5
