Basement Water Leak Sensor, 12V/24V, Relay Output

0 review(s) | Add your review

SKU: SUCH-WLS-WT206

$73.83

● Working power supply DC12V/24V ● Alarm height 2.0±0.5mm ● False alarm rate 100ppm ● Normally open/Normally closed

Power Supply *
Accessories *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

The low cost basement water leak sensor is designed to detect leaks in computer rooms, workshops, warehouses, pipelines, underground garages, and basements. The SUCH basement water leakage sensor features a relay output, a response time of <50ms, an alarm height of 2.0±0.5mm, and a false alarm rate of 100ppm, making it widely applicable in various locations with a risk of leaks.

Feature

AVVR Signal Cable: The basement water leak sensor uses a thickened five-core cable, which is tensile-resistant, corrosion-resistant, and safe and reliable.
Stainless Steel Probe: The probe electrodes are made of 316 stainless steel, effectively preventing sensor damage caused by rust and corrosion.
Power Supply Isolation: The built-in isolated power supply effectively improves anti-interference capabilities, withstands instantaneous high-voltage surges, and extends the service life of the water leakage sensor.
Wide Applications: Widely used in various locations with a risk of water leakage, such as computer rooms, workshops, warehouses, pipelines, underground garages, and basements.

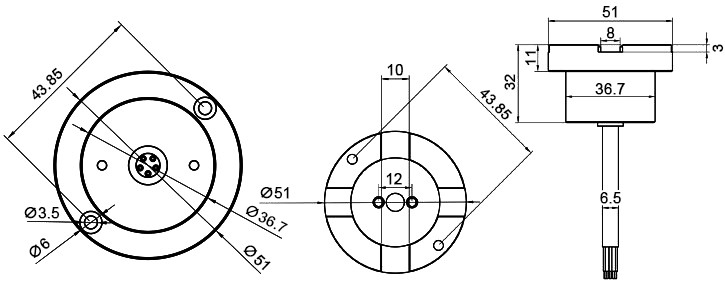

Dimension (Unit:mm)

Basement water leak sensor size

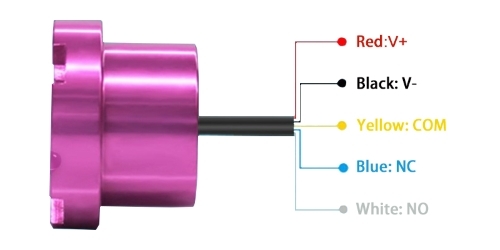

Wiring

Wiring of basement water leak sensor

Specs

Working Current	<30mA
Static Current	<10mA
Response Rate	<50ms
Sealing Method	Injected epoxy resin
Signal Method	Relay output
Waterproof Rating	IP68
No Water/Water Content	Normally open/normally closed
Cable Specification	AVVR 5mm*0.3mm
Cable Length	Standard 1m
Working Power Supply	DC12V/24V±5% optional
Housing Material	Metal
Dimension	Φ51*32mm
Alarm Height	2.0±0.5mm
False Alarm Rate	100ppm
Humidity	20~95%RH (non-condensing)
Temperature	-20℃~80℃
Mounting Hole Spacing	44mm
Screw Size	M3*12

Application

Basement

Engine Room

Pipeline

FAQ

Q1: What do the NO and NC outputs mean for a basement water leak sensor?❯

NO (Normally Open): The two contacts are open when there is no water. The contacts become closed when the sensor detects a leak.
NC (Normally Closed): The two contacts are closed when there is no water.

The contacts become open when the sensor detects a leak. These options allow the basement water leakage sensor to be flexibly integrated into different alarm or control systems.

Q2: What maintenance is required for a basement water leak sensor?❯

Keep the basement water leak sensor clean and dry when not testing it. Check the wiring integrity and perform leak tests regularly to ensure reliable operation.

Q3: Does the basement water leakage sensor need calibration?❯

No. Generally, basement water leak sensors do not require calibration, but periodic functional testing is recommended.
