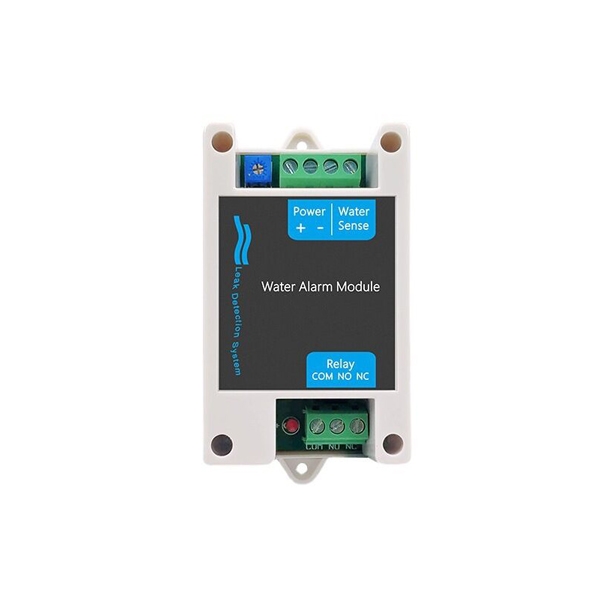

Water Leak Sensor Alarm Module, Relay Output

High-quality water leakage sensor alarm modules for sale. SUCH water leak sensor alarm modules are wall-mounted and can be connected to external devices such as audible and visual alarms, automatic valves, and smart alarms. The sensitivity of the water leakage sensor alarm module can be adjusted according to detection needs using a 9-15VDC power supply, with a maximum output power of 220AC/2A.

Feature

• High-pitched Horn Alarm: The water leakage sensor alarm module has a built-in alarm buzzer that sounds an alarm and an indicator light simultaneously when a leak occurs.
• Adjustable Sensitivity: Sensitivity can be adjusted according to detection needs, with a range of 0-10KHz, down to detecting even a water droplet. The sensor module's sensitivity can be directly adjusted for convenience and practicality.
• Wall-mounted Installation: The water leak sensor alarm module is compact and has built-in wall-mounting holes, allowing for wall mounting. When a leak occurs, the module provides a clear audible and visual alarm with a long transmission distance.
• Switch Signal Output: It can be connected to external audible and visual alarms, automatic valves, smart alarms, and other devices, integrating with various monitoring systems to achieve remote alarm and remote device control.

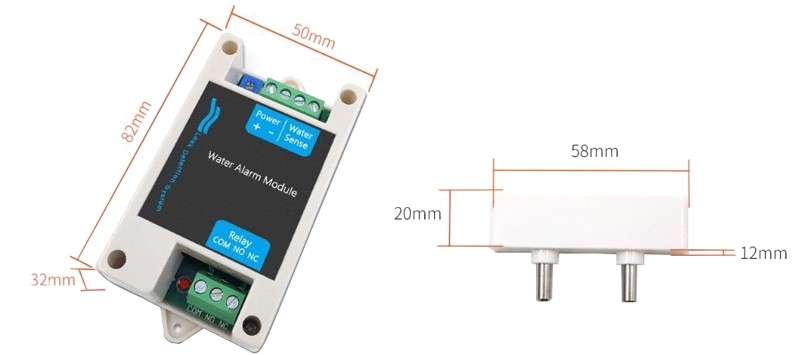

Dimension (Unit:mm)

Wiring

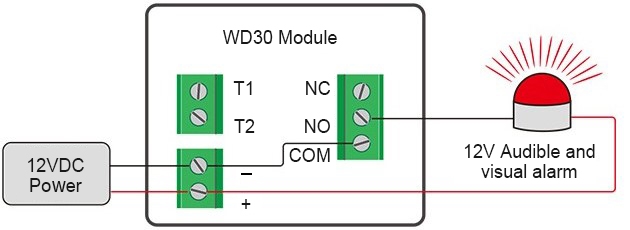

Alarm wiring:

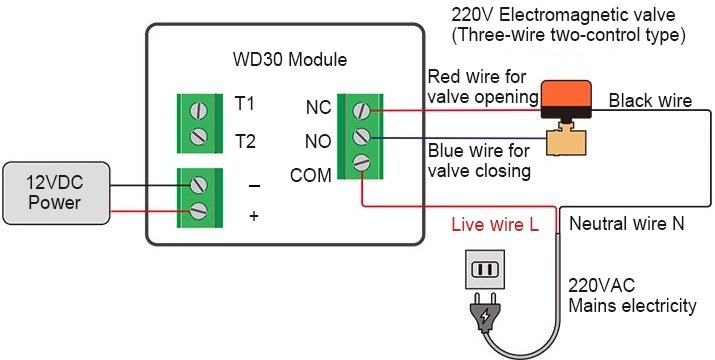

Electric valve wiring:
