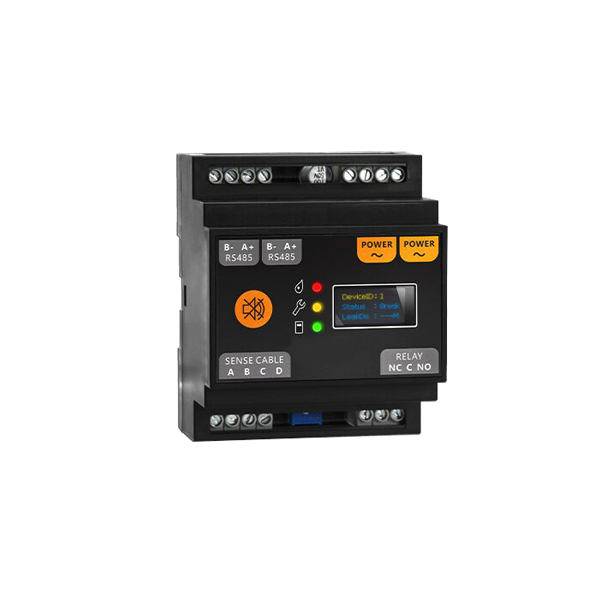

Smart Water Leak Sensor, 12V/24V/220V, RS485 Output

Buy a smart water leak sensor. The SUCH smart water leak sensor is made of ABS fire-retardant material and can detect leaks of liquids such as water, acids, alkalis, and oils. It can operate in temperatures ranging from -10℃ to 65℃. The DIN 35mm rail housing facilitates installation, and 12-24VDC/24VAC/220VAC power supplies are available. When a liquid leak is detected, the smart water leakage sensor displays the leak location on an LCD screen and outputs relay and RS485 alarm signals.

Feature

• Rail Mounting: The digital water leakage sensor features a rail-mounted housing for easy installation in standard control boxes.
• Wide Voltage Input: The sensor uses a fully rectified power supply circuit, adaptable to various power supply voltages, facilitating installation and use.
• LCD Display: It has a built-in alarm function, with the LCD screen displaying the alarm status in real time. Combined with an alarm buzzer and indicator lights, it can be used as an independent alarm unit.
• Wire Break Alarm: It can detect cable faults and promptly alert for repair or replacement when a cable is damaged, ensuring the normal operation of the detection system.
• Multiple Alarm Modes: Through the alarm switch signal output by the smart water leak sensor and the RS485 communication interface, it can be connected to various monitoring and alarm systems for remote monitoring.
• Compatible with Various Detection Cables: The intelligent water leakage sensor can connect to various detection cables for water, acids, alkalis, gasoline, diesel, organic solvents, etc.

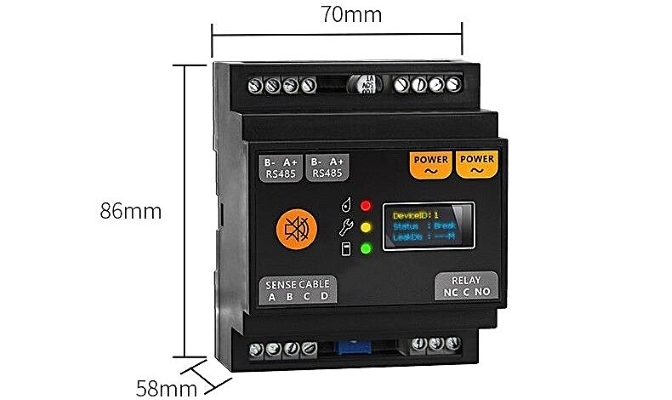

Dimension (Unit:mm)

Screen Display

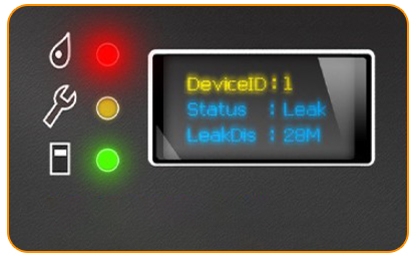

Leakage Status Display:

Note: The leakage location is continuously displayed before reset.

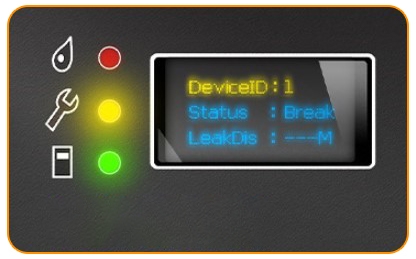

Disconnection Status Display:

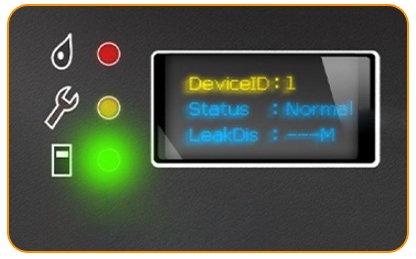

Normal Status Display:

Note: Total cable length is displayed upon power-on; returns to normal status after 5s.
