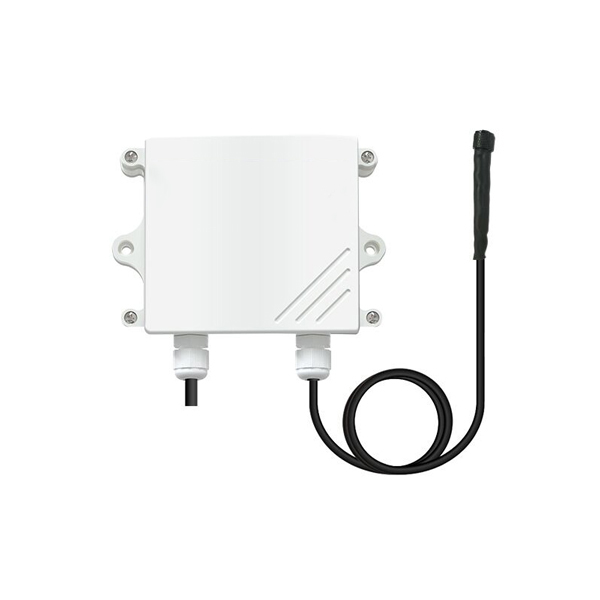

Remote Water Leak Sensor, Wall Mounted, Relay/RS485

Name: Remote Water Leak Sensor, Wall Mounted, Relay/RS485
Brand: Such.com
SKU: SUCH-WLS-RSSJ
Price: 94.32 USD
Availability: InStock
Rating: 5.0 (1 reviews)

1 review(s) | Add your review

SKU: SUCH-WLS-RSSJ

$94.32

● Relay/RS485 output optional ● Power supply DC 10-30V ● Wall-mounted installation method ● Detection distance up to 2000m

Output Signal *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

This high-quality remote water leak sensor is wall-mounted, with a maximum detection distance of up to 2000m. It can operate normally in environments ranging from -20℃ to +60℃ and 0%RH to 80%RH. The SUCH remote water leakage sensor supports DC 10-30V power and has RS485 or relay outputs. It is easy to install and connect to existing systems and is widely applicable to communication base stations, hotels, restaurants, computer rooms, libraries, archives, warehouses, equipment cabinets, and other places requiring water accumulation alarms.

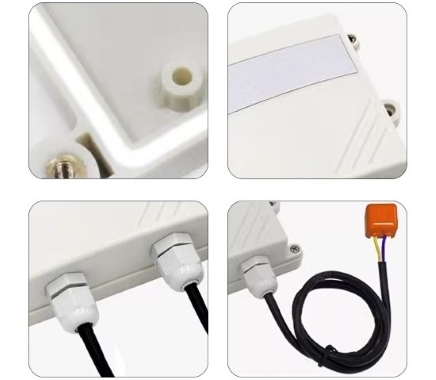

Feature

Waterproof Strip Design: Waterproof strips at the seams of the casing isolate the device from the external environment, offering excellent moisture resistance.
Waterproof Adhesive Sealing: Waterproof adhesive is used at the interface of the remote water leakage sensor to ensure the internal circuitry is isolated from the outside environment.
Four-Core Waterproof Cable: Black shielded cable, waterproof and oil-proof, with strong anti-interference capabilities and stable signal transmission.
High Protection Rating: The remote water leak sensor features a waterproof casing, allowing for extended use in harsh environments such as humid and dusty conditions.

Remote water leak sensor feature

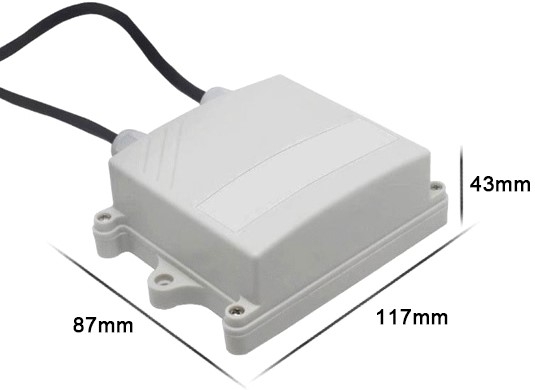

Dimension (Unit:mm)

Remote water leak sensor size

Line Definition

Output signal	RS485 output	Relay output
Power supply	Power supply positive (brown) (10~30V DC)
	Power supply negative (black)
Output	485-A (yellow)	Relay NO contact (white, green)
	485-B (blue)

Specs

Power Supply	DC 10-30V
Maximum Power Consumption	Relay Output: 1.2W RS485 Output: 0.4W
Detection Object	Tap water, purified water
Operating Temperature	-20℃~+60℃
Operating Humidity	0%RH~80%RH
Output Signal	RS485 output (ModBus-RTU protocol), relay output (NO contact)
Relay Load Capacity	250VAC 1A/30VDC 1A
Installation Method	Wall-mounted
Detection Distance	2000m

Application

Archives room

Engine Room

Warehouse

FAQ

Q1: Are remote water leak sensors affected by humidity? ❯

Normal humidity will not trigger an alarm. Water leak sensors are designed to react only to contact with liquid water, not to air humidity.

Q2: Can remote water leak sensors be reused after testing? ❯

Yes. Most water leakage sensors and detection cables can be reused after a drying check.

Q3: How often should remote water leak sensors be tested? ❯

It is recommended to test remote water leak detection sensors monthly or quarterly, especially in critical environments such as data centers or industrial facilities.

1 review(s)

Write your own review Close

Review title: *

Review text: *

Rating:

1 2 3 4 5

From: Darren Whitcomb | Date: 10/12/2026 9:24 AM

Useful remote water leak sensor for a warehouse

I got this remote water leak sensor for a warehouse area where a small leak could go unnoticed for quite a while. The wall mounting made it easy to put near the spot I wanted to monitor. I went with the relay output so it could trigger an alarm when water was detected. The setup was pretty straightforward, and it’s been doing what I need so far.
