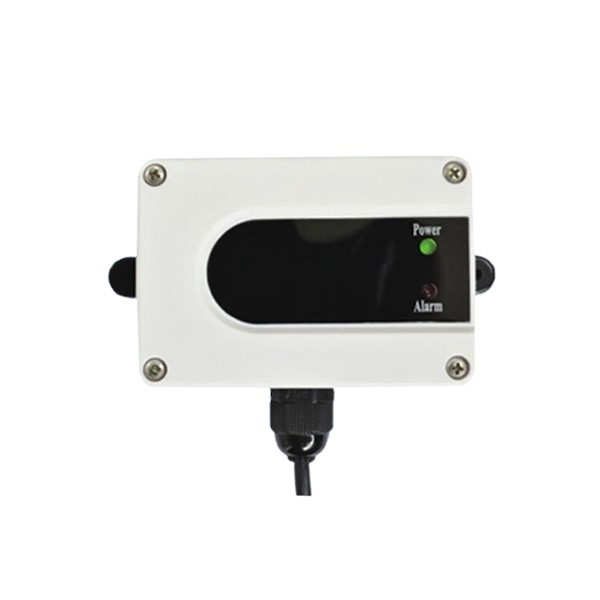

Industrial Water Leak Sensor, 24V DC, Relay/RS485

Factory-priced industrial water leak sensor for sale online. The fully sealed industrial water leak sensor works by detecting the change in impedance of the sensing electrodes when immersed in water. A dedicated integrated chip amplifies, shapes, and compares the water immersion input signal, outputting a dry contact signal to indicate the presence of water at the sensor's location. The SUCH industrial water leak sensor features an integrated, fully sealed plastic housing design, ensuring high reliability with a false alarm rate of <100ppm. The industrial water leakage sensor has an IP66 protection rating, operates on DC 24V power, and can be used in communication base stations, hotels, precision machine rooms, libraries, warehouses, and other locations requiring alarms for water accumulation.

Feature

• Compact Size: The compact design facilitates sensor installation. Power, input, and output are fully isolated, providing strong anti-interference capabilities.
• Fully Sealed Potting Design: The integrated, fully sealed potting design incorporates internal circuitry molded entirely in adhesive. The water leak sensor offers advantages such as waterproofing, moisture resistance, and corrosion resistance.
• High Sensitivity: The industrial water leakage sensor employs four-point leak detection, ensuring accurate detection, high sensitivity, and fast response time.

Dimension (Unit:mm)

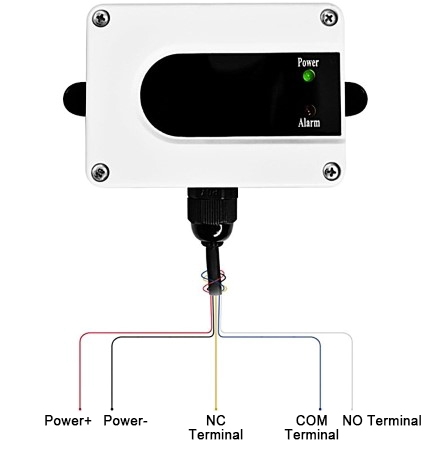

Wiring
