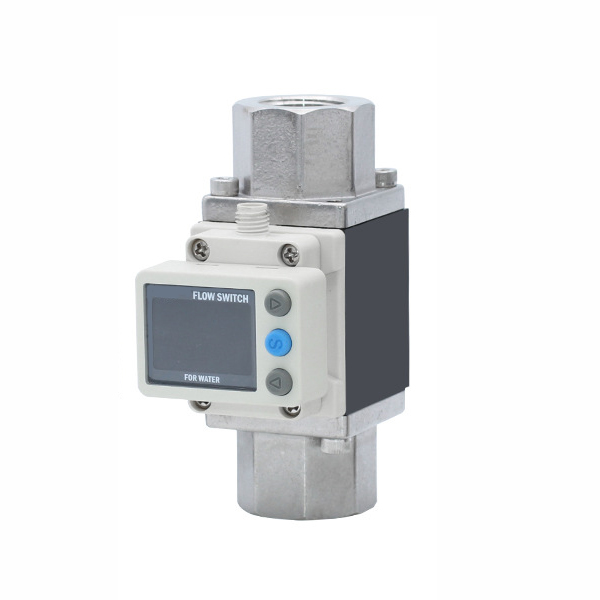

    1" Digital Water Flow Switch, 10-100L/min, NPN/ PNP

    SKU: SUCH-FLS-NPF3W71110
    $446.39
    ● 1 inch connection diameter ● 10-100 L/min rated flow range ● NPN/ PNP/ 4-20mA/1~5V ● 4-digit 7-segment 2-color LED
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    The 1-inch digital water flow switch employs the Karman vortex street detection principle, suitable for flow monitoring of low-viscosity liquid media such as water and ethylene glycol solutions. With a measurement range of 10–100 L/min and a display range of 7–140 L/min, it provides real-time readings of instantaneous and cumulative flow rates. Equipped with a dual-sided LED digital display, it supports a minimum setting unit of 1 L/min, NPN/PNP open-collector output, and 4–20mA, 1–5V analog signal output. This facilitates easy integration with PLCs or automated control systems, making it widely applicable in industrial cooling water, equipment circulation water, and automated flow monitoring systems.

    Feature

    1 inch digital air flow switch feature

    • The 1-inch digital water flow switch features a rated flow range of 10–100 L/min, with a display and setting range extending to 7–140 L/min.
    • Its built-in dual-color LED digital display simultaneously shows instantaneous and cumulative flow data. The dual-sided display structure ensures easy data reading regardless of installation orientation, enhancing field operation convenience.
    • SUCH flow switches offer multiple output options: NPN/PNP switch outputs, 1–5V voltage signals, and 4–20mA analog signals for flow monitoring and automated control.
    • Supports upper/lower limit comparison mode, hysteresis mode, and cumulative pulse output mode. Features short-circuit protection and flexible alarm/control condition settings for enhanced system safety and stability.

    Dimension (unit: mm)

    Body Dimension

    Digital water flow switch dimension

    Basic Dimensions A AA B D E F G H
    124 92 46 77 57.6 23 41 42
    J K L N P / / /
    63 48 28 18 Ø3.5 deep 14 / / /
    Bracket Dimensions S T U V W WX Y Z
    44 36 42 58 70 5.5 7 2


    M8 Lead Wire Dimension

    Digital water flow switch lead wire dimension

    Detail

    Digital water flow switch details

    1. Function Panel: Enables switching between functions and rapid application response.
    2. Water Sensor: Specifically designed to detect water flow and transmit data to the main board.
    3. Main Board: Stores memory data, records data, and provides real-time display.

    Pin Number & Wire Color

    Digital water flow switch wire color

    Pin Number Content Wire Colors
    1 DC (+) Brown
    2 OUT 2 White
    3 DC (-) Blue
    4 OUT 1 Black


    Flow Rate Diagram

    Digital water flow switch flow rate diagram

    Output Type A B C
    Voltage Output 1 V 1.4 V 5 V
    Current Output 4 mA 5.6 mA 20 mA
    Specs
    Connection Diameter Rc(PT) 1 inch
    Measured Fluid Water and ethylene glycol water solutions (viscosity ≤3 mPa·s / 3 cP)
    Detection Method Karman vortex street type
    Rated Flow Range 10–100 L/min
    Display Flow Range 7–140 L/min
    Set Flow Range 7–140 L/min
    Minimum Setting Unit 1 L/min
    Cumulative Pulse Conversion Value 1 L/pulse
    Operating Fluid Temperature 0–90°C (non-condensing)
    Display Unit Instantaneous flow L/min, cumulative flow L
    Accuracy Display value ±3% F.S., analog output ±3% F.S.
    Repeatability ±2% F.S.
    Temperature Characteristics ±5% F.S. (at 25°C reference)
    Operating Pressure Range 0–1 MPa
    Pressure Loss 45 kPa at max. flow (without flow control valve)
    Cumulative Flow Range 99999999.9 L / per 1 L
    Output Type NPN or PNP open-collector output
    Voltage Output 1–5 V (output impedance 1 kΩ)
    Current Output 4–20 mA
    Maximum Load Current 80 mA
    Maximum Applied Voltage DC 28 V
    Internal Voltage Drop NPN: ≤1 V (80 mA load) / PNP: ≤1.5 V (80mA load)
    Response Time 0.5s / 1s / 2s
    Output Protection Short-circuit protection
    Output Mode Hysteresis mode, upper/lower limit comparison mode, cumulative output mode, cumulative pulse output mode
    Load Impedance DC12V: 300Ω
    DC24V: 600Ω
    Hysteresis Adjustable
    External Input No voltage input: ≤0.4V (with or without contact), input ≥30ms
    Display Method Dual-sided display
    Display Screen 4-digit 7-segment 2-color LED
    Operation Indicator Output 1 / Output 2: Orange
    Power Supply Voltage DC12–24V ±10%
    Current Consumption ≤50mA
    Protection Rating IP65
    Operating Temperature Range 0–50°C (non-condensing)
    Operating Humidity Range 35–85%RH (non-condensing)
    Withstand Voltage AC1000V 1 minute
    Insulation Resistance ≥50MΩ (DC500V)
    Wetted Parts Material PPS / SUS304 / FKM / SCS13
    Standards and Regulations CE, UL(CSA), RoHS
    Lubrication Grease-free specification
    Weight 1kg
