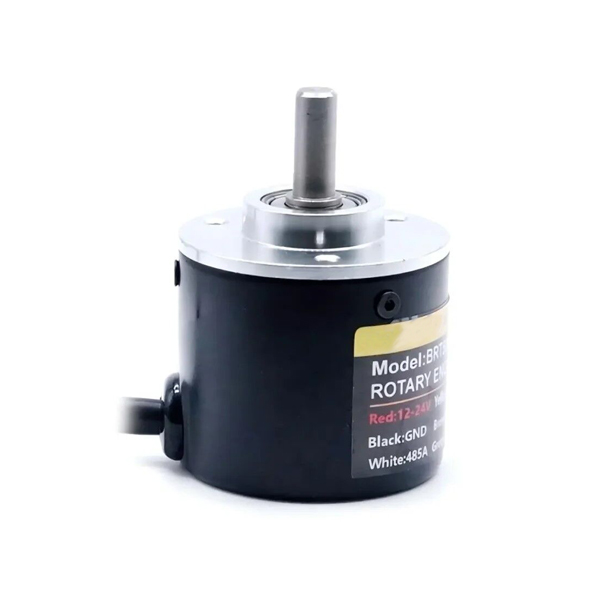

Single Turn Absolute Rotary Encoder, 10/12/14 Bit, RS485/ CAN/ SSI

Low-cost absolute rotary encoder for sale online. This SUCH single-turn absolute rotary encoder offers optional 10/12/14-bit resolution, 5V-24V operating voltage, and 50mA/100mA operating current. Industrial rotary encoders with optional RS485/CAN/SSI communication interfaces are small in size, lightweight, and have a long service life, making them widely used in machine tools, motors, robots, elevators, and other specialized equipment.

Feature

• The encoder is a single-turn 0~360° absolute type with power-off memory.
• Industrial-grade encoder with compact size and structure for easy installation.
• It has a wide voltage range, passes EMC testing, and exhibits strong anti-interference capabilities and high stability.
• Parameters configurable via communication protocol or host software with intuitive, simple operation.
• The absolute rotary encoder supports query mode and auto-return mode for position and speed feedback. Programmable features include baud rate, set function, counting direction, and speed feedback.

Dimension (Unit:mm)

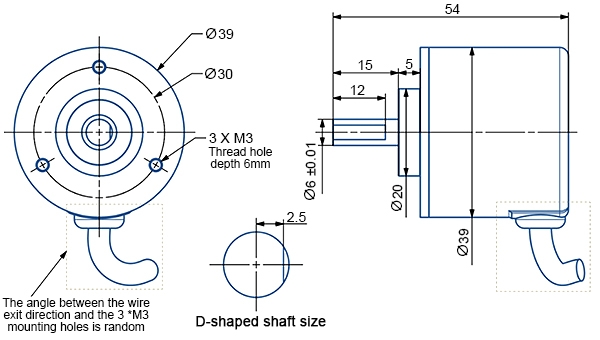

Shaft diameter 6mm, IP54:

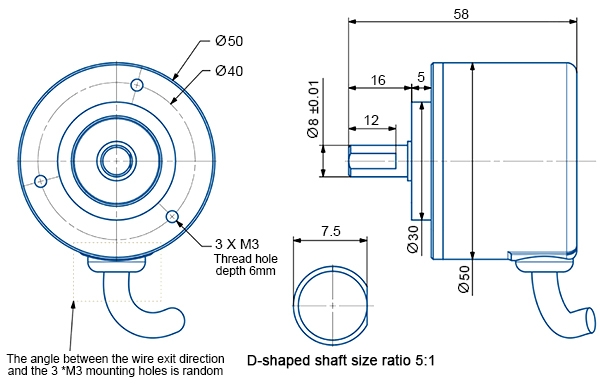

Shaft diameter 8mm, IP54:

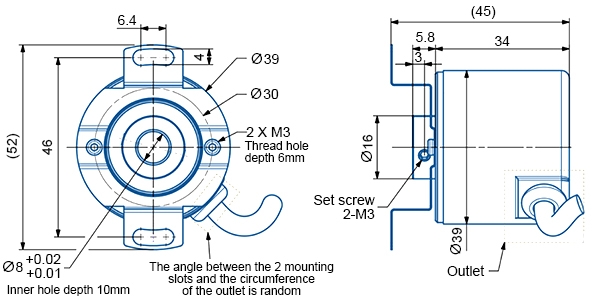

Blind hole 8mm, IP54:

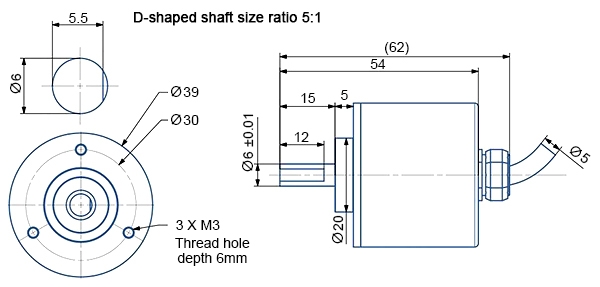

Shaft diameter 6mm, IP67:

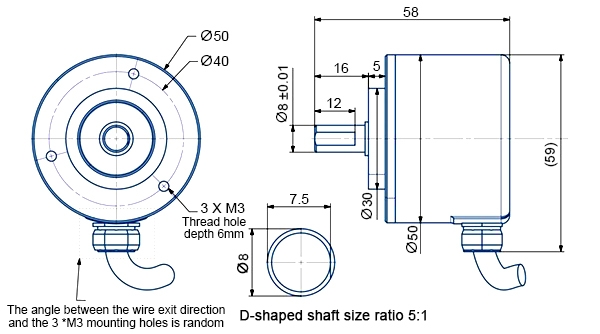

Shaft diameter 8mm, IP67:

Wiring

Tips:

1. When connecting the red wire, pay attention to the voltage value 5-24V on the encoder label.
2. Zeroing wire (yellow wire) is grounded. The encoder position value will be zeroed when it is 100mS or more.
3. Under normal circumstances, the yellow wire is suspended, but if there is a need to set the zero, then connect the zero wire.
4. Be sure to avoid contacting the red wire with the zero wire (yellow wire), which may cause a short circuit and prevent communication.
